Amesbury P2000 Upper Active Assembly – 16mm Faceplate, 74-7/8" Length

Amesbury P2000 Upper Active Assembly – 16mm Faceplate, 74-7/8" Length

SKU: 16-2097

$168.73 - $168.73
$168.73
$168.73 - $168.73
$168.73

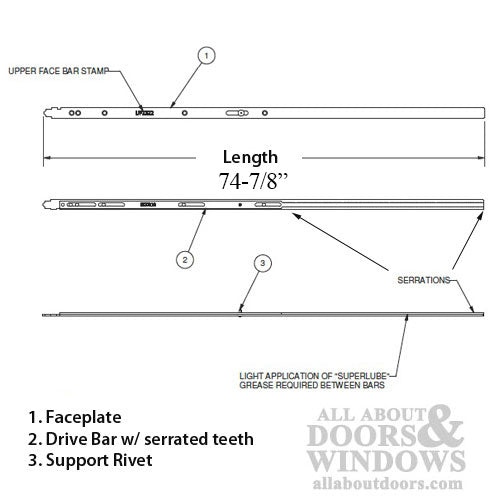

  • Length: 74-7/8" (1902mm)
  • Faceplate Width: 16mm
  • Door Panel Range: 108-1/2" to 121" (2756mm to 3073mm)
  • Handle Height: 36" (914mm)
  • Shootbolt Teeth: Yes, croppable
  • Used on active doors with 3-point shootbolt system

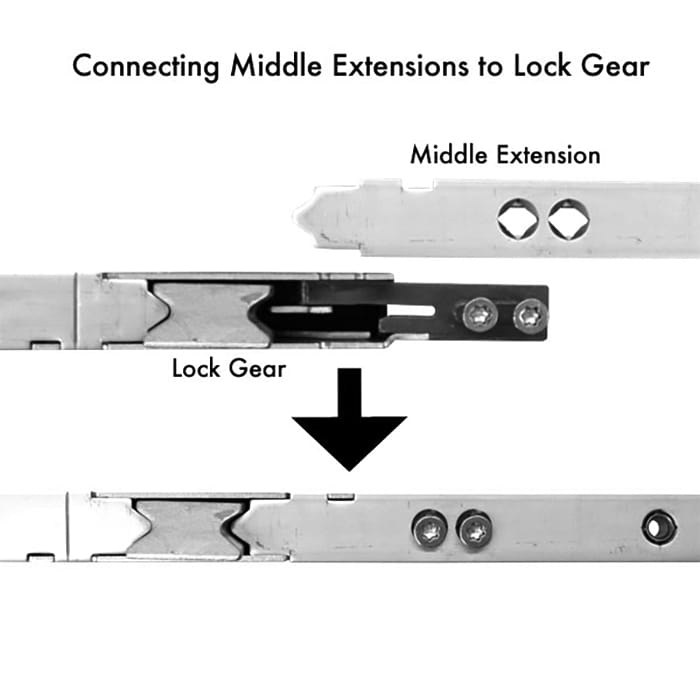

  • Compatible with shootbolt and Rhino Hook extensions
  • Works with gears 8135-2310-81LA or 8145-2310-81-LA and shootbolt 5670-81
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Amesbury P2000 Upper Active Assembly – 16mm, 74-7/8" (16-2097)

This Amesbury P2000 Upper Active Assembly is designed for active doors equipped with a 3-point shootbolt system. The assembly measures 74-7/8 inches (1902mm) in length and features a 16mm faceplate width, making it suitable for door panels ranging from 108-1/2 inches to 121 inches (2756mm to 3073mm) in length.

The upper active assembly includes croppable shootbolt teeth, allowing for customization during installation. It is compatible with both shootbolt and Rhino Hook extensions, providing flexibility for various door configurations.

Technical Information

  • Length: 74-7/8 inches (1902mm)
  • Faceplate Width: 16mm
  • Door Panel Range: 108-1/2 inches to 121 inches (2756mm to 3073mm)
  • Handle Height: 36 inches (914mm)
  • Shootbolt Teeth: Yes, croppable

Notes

  • When used with gears 8135-2310-81LA or 8145-2310-81-LA and shootbolt 5670-81, this assembly will fit doors with panel lengths from 108-1/2 inches to 121-1/2 inches maximum with a 36-inch handle height

Related Parts

  • 8135-2310-81LA - Gear
  • 8145-2310-81-LA - Gear
  • 5670-81 - Shootbolt

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What door sizes does this upper active assembly fit?

This assembly fits door panels ranging from 108-1/2 inches to 121 inches in length when used with the compatible gears and shootbolt at a 36-inch handle height.

Can the shootbolt teeth be trimmed to fit my door?

Yes, the shootbolt teeth are croppable, allowing you to customize the length during installation to fit your specific door requirements.

What other parts do I need to complete the installation?

This assembly works with gears 8135-2310-81LA or 8145-2310-81-LA and shootbolt 5670-81 for a complete 3-point shootbolt system.
