Monaco Wave Multipoint Handleset – 5-1/2" Bore Spacing, Schlage SC1 Keyway

Monaco Wave Multipoint Handleset – 5-1/2" Bore Spacing, Schlage SC1 Keyway

SKU:

$169.95 - $189.95
$169.95
$169.95 - $189.95
$169.95
  • Style: Monaco Wave curved lever with traditional arch top escutcheon plates
  • Plate Dimensions: 2-1/2" (63.5mm) wide x 9" (228.6mm) long
  • Bore Spacing: 5-1/2" (139.7mm) center-to-center for passage and deadbolt
  • Cross Bore: 2-1/8" (54mm) standard
  • Handle Hub to Cylinder: 5-1/4" (133.4mm)
  • Spindle Length: 4-5/16" (109.5mm)
  • Door Thickness: 1-3/4" (44.5mm)
  • Keyway: Schlage SC1, 5-pin with 2 keys included
  • Material: Solid forged brass
  • Finish: Brushed Satin Nickel or Antique Black
  • Application: Residential exterior doors with Rockwell triple latch multipoint locks
  • Function: Active keyed door
  • Strike plates sold separately (1-3/4" x 3-1/2", need 4 for 8' doors)
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.
*We have a fully-staffed customer support team happy to help!

Monaco Wave Multipoint Handleset – 5-1/2" Bore (14521)

This Monaco Wave style handleset is designed for use with triple latch multipoint lock systems featuring deadlocking tongue and shootbolt configurations. The set includes a curved wave lever with traditional arch top escutcheon plates, crafted from solid forged brass for lasting durability.

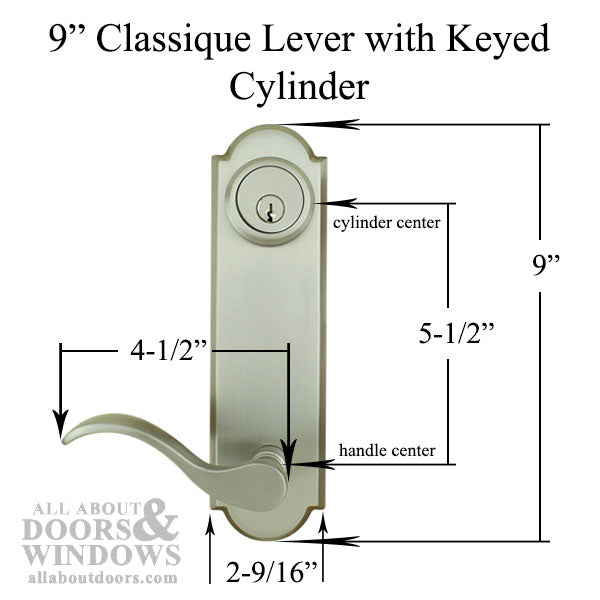

The handleset fits residential exterior doors equipped with Rockwell multipoint locks. It features a 5-1/2 inch center-to-center bore spacing for the passage and deadbolt holes, with a standard 2-1/8 inch cross bore. The handle hub to cylinder measurement is 5-1/4 inches, and the spindle length is 4-5/16 inches. This set is designed for doors with 1-3/4 inch thickness.

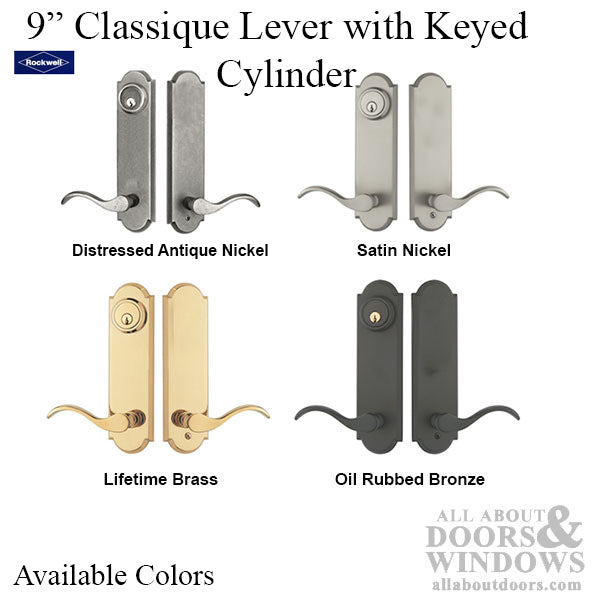

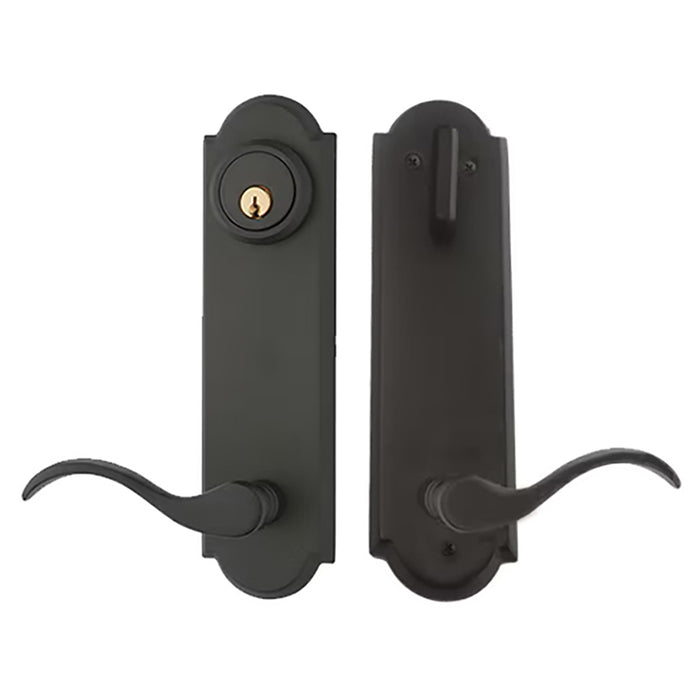

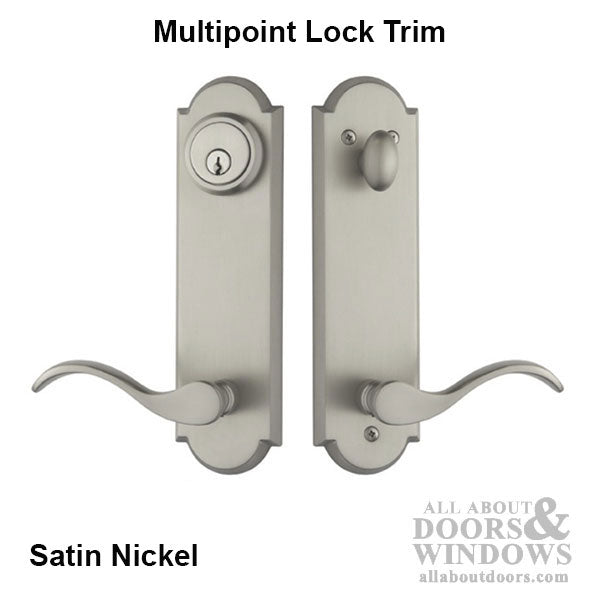

Available in Brushed Satin Nickel or Antique Black finish (similar to Oil Rubbed Bronze). The keyed cylinder uses a Schlage SC1 keyway with 5-pin configuration, and two keys with large bow heads are included.

Technical Information

  • Plate Width: 2-1/2 inches (63.5mm)
  • Plate Length: 9 inches (228.6mm)
  • Bore Spacing: 5-1/2 inches (139.7mm) center-to-center
  • Cross Bore: 2-1/8 inches (54mm)
  • Handle Hub to Cylinder: 5-1/4 inches (133.4mm)
  • Spindle Length: 4-5/16 inches (109.5mm)
  • Door Thickness: 1-3/4 inches (44.5mm)
  • Keyway: Schlage SC1, 5-pin
  • Material: Solid forged brass

Notes

  • The key cylinder hole on the deadbolt is offset from the center of the rosette by a small distance. This is why the handle hub to cylinder measures 5-1/4 inches while designed to fit a 5-1/2 inch center-to-center double bore.
  • Strike plates must be ordered separately (1-3/4" x 3-1/2" length). Four strike plates are needed for 8-foot doors.

Priced and sold as a complete handleset.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Why does the handle hub to cylinder measure 5-1/4 inches if it fits a 5-1/2 inch bore?

The key cylinder hole on the deadbolt is offset from the center of the rosette by a small distance, which is why the measurement differs slightly while still fitting the 5-1/2 inch center-to-center bore spacing.

What strike plates do I need for this handleset?

Strike plates are sold separately and measure 1-3/4 by 3-1/2 inches. For an 8-foot door with a triple latch multipoint system, you will need 4 strike plates.

What keyway does this handleset use?

This handleset uses a Schlage SC1 keyway with a 5-pin cylinder. Two keys with large bow heads are included.
