Hoppe Single Point Lock HLS9350 – 35mm Backset, 1" Deadbolt

Hoppe Single Point Lock HLS9350 – 35mm Backset, 1" Deadbolt

SKU 11880259

$125.79 - $125.79
$125.79
$125.79 - $125.79
$125.79

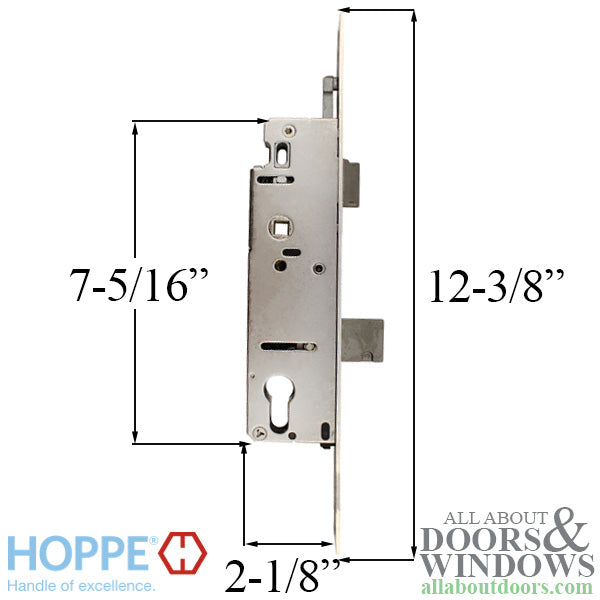

  • Backset: 1-3/8" (35mm)
  • Deadbolt Throw: 1" (25.4mm)
  • Faceplate Width: 7/8" (22mm)

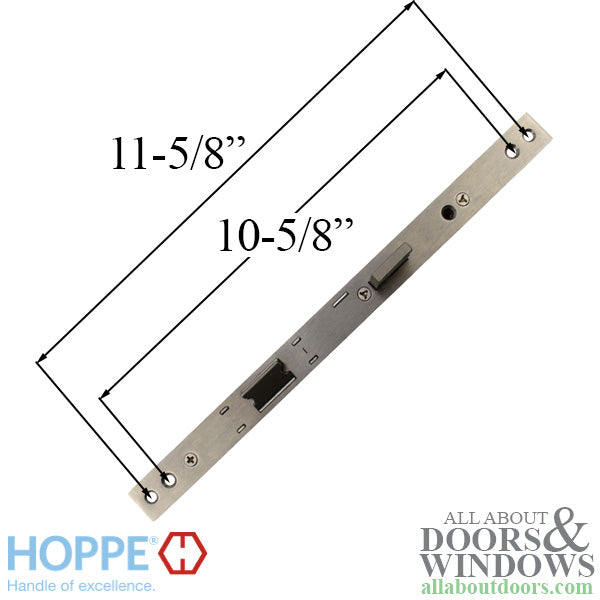

  • Faceplate Length: 12-3/8" (314.3mm)
  • Application: Active, Single Point Lock
  • Square end faceplate with rotation limiter/locking linkage
  • Handle remains fixed when locked
  • Sold individually
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

Hoppe Single Point Lock HLS9350 – 35mm Backset (11880259)

This Hoppe single point gear is designed for active single point lock applications. It features a 1-3/8 inch (35mm) backset and a 1 inch (25.4mm) deadbolt throw, providing secure locking for your door.

The faceplate measures 7/8 inch (22mm) wide and 12-3/8 inches (314.3mm) long with a square end design. This lock includes a rotation limiter and locking linkage system, which keeps the handle fixed in place when the lock is engaged, preventing handle movement when locked.

Technical Information

  • Model: HLS9350 / HLS9000 / GR SP HLS9000
  • Backset: 1-3/8 inches (35mm)
  • Deadbolt Throw: 1 inch (25.4mm)
  • Faceplate Width: 7/8 inch (22mm)
  • Faceplate Length: 12-3/8 inches (314.3mm)
  • Faceplate Style: Square end
  • Operation: Manual active

Notes

  • Features rotation limiter/locking linkage for fixed handle position when locked
  • CN Code: 83016000

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What does the rotation limiter do on this lock?

The rotation limiter and locking linkage keeps the handle fixed in place when the lock is engaged, preventing the handle from moving when locked for added security.

How do I measure my backset to confirm this lock will fit?

Measure from the edge of the door to the center of the handle bore hole. This lock requires a 1-3/8 inch (35mm) backset.

What is the difference between a single point lock and a multipoint lock?

A single point lock secures the door at one locking point, while a multipoint lock engages multiple locking points along the door edge for enhanced security.
