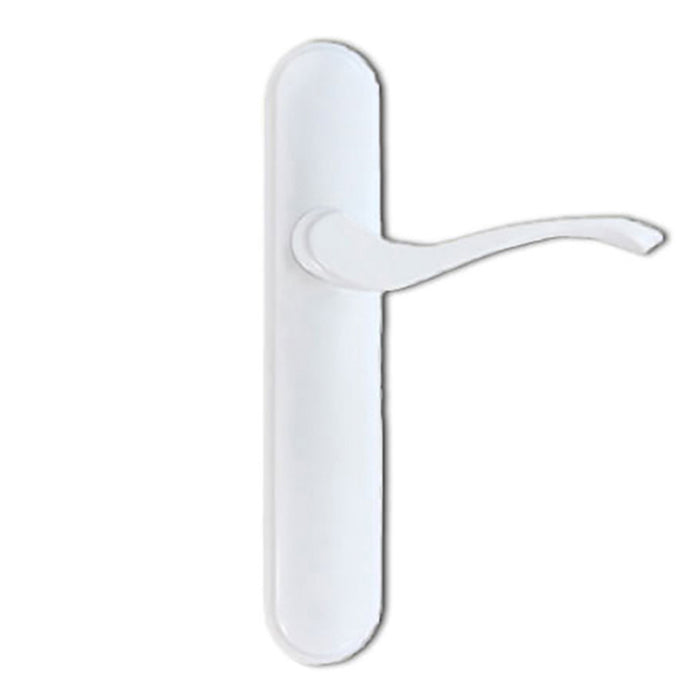

Marvin Integrity Passive Trim Set for Multipoint Doors – 92mm PZ, White

SKU: 11869244

Sold out

$153.19 - $153.19

$153.19

$153.19 - $153.19

$153.19

Function: Passive hardware for secondary door (no cylinder)
PZ (Cylinder to Handle): 3-5/8" (92mm)
Door Thickness: 1-3/4" (44.5mm)

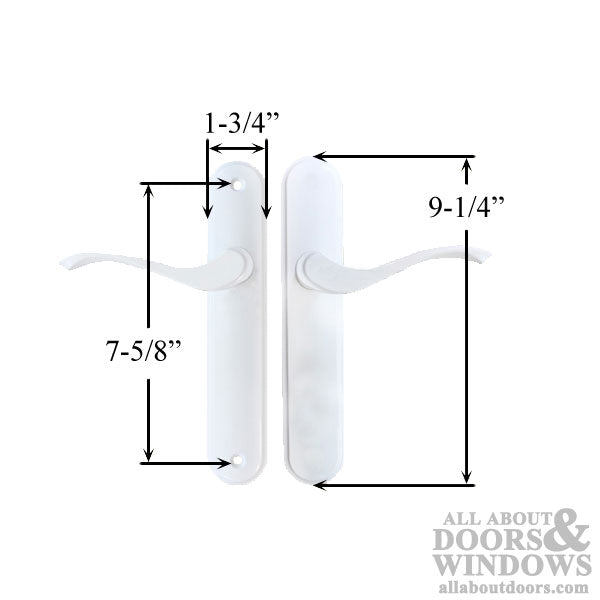

Escutcheon Plate: 1.80" x 9.31" (45.7mm x 236.5mm)
Escutcheon Screw Hole Spacing: 7.665" (194.7mm)
Spindle: 5/16" (8mm) square, 4-1/2" (114.3mm) length
Spring Cassette: 1-1/16" x 3-7/8" (27mm x 98.4mm)
Base Material: Zinc
Color: White
Handed: Yes, but handles can be removed and reattached (uses snap ring)
Installation Screws: M5 x 58mm included
Discontinued – limited to existing inventory

This part has been discontinued and is no longer available.

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

Marvin Integrity Passive Trim Set – White, 92mm PZ (11869244)

This complete inside and outside trim set is designed for Integrity by Marvin doors equipped with multipoint locks. As passive hardware, this trim is intended for secondary doors that do not require a keyed cylinder – ideal for the inactive leaf of a double door configuration.

The trim features white zinc escutcheon plates measuring 1.80 inches by 9.31 inches with a screw hole spacing of 7.665 inches. The cylinder to handle spacing (PZ) is 3-5/8 inches (92mm), which is standard for many European-style multipoint lock systems.

The lever handles attach to the escutcheon plates using a snap ring system rather than traditional set screws. This design allows the handles to be removed and reattached for rehanding if needed. A spring-loaded cassette measuring 1-1/16 inches by 3-7/8 inches provides smooth lever action and positive return.

Technical Information

Door Thickness: 1-3/4 inches (44.5mm)
PZ (Cylinder to Handle Spacing): 3-5/8 inches (92mm)
Escutcheon Plate Dimensions: 1.80 inches x 9.31 inches
Escutcheon Screw Hole Spacing: 7.665 inches
Spindle Diameter: 5/16 inch (8mm) square
Spindle Length: 4-1/2 inches (114.3mm)
Spring Cassette: 1-1/16 inches x 3-7/8 inches
Base Material: Zinc
Installation Screws: M5 x 58mm

Notes

Handed hardware – can be rehanded by removing and reattaching handles
Uses snap ring attachment (no handle set screws)
Includes spring-loaded cassette for lever return action
This part is discontinued and limited to existing inventory

Priced and sold as a complete trim set.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What does passive hardware mean?

Passive hardware is designed for secondary doors that do not require a keyed cylinder, such as the inactive leaf of a double door configuration. This trim set operates the multipoint lock but does not include a key cylinder.

Can I change the handing on this trim set?

Yes, the handles can be removed and reattached to change the handing. The levers use a snap ring attachment system rather than set screws, making rehanding possible.

What is the PZ measurement and why does it matter?

PZ refers to the distance from the center of the handle to the center of the cylinder bore, measured at 92mm (3-5/8 inches) on this trim. This measurement must match your existing multipoint lock for proper fit.
