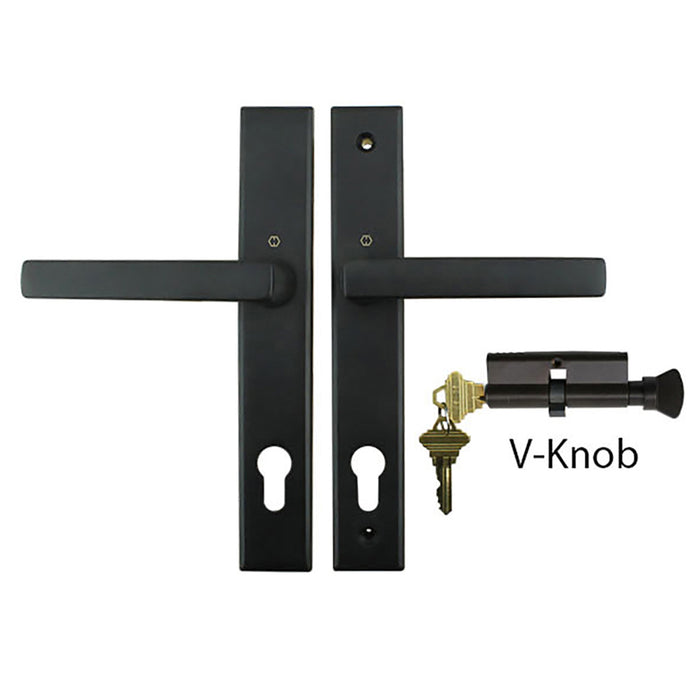

Hoppe Dallas Handleset for Multipoint Doors – 92mm PZ, Matte Black

Hoppe Dallas Handleset for Multipoint Doors – 92mm PZ, Matte Black

SKU 11687836

$293.96 - $293.96
$293.96
$293.96 - $293.96
$293.96
  • PZ: 3-5/8" (92mm) – handle center to cylinder center
  • Cylinder: 40.5/40.5mm with V-Knob, Schlage SC1 5-pin keyway
  • Door Thickness: Fits 2-1/4" or 2-3/8" (57mm or 60mm) thick doors
  • Spindle: 5/16" x 5-1/2" (8mm x 140mm)

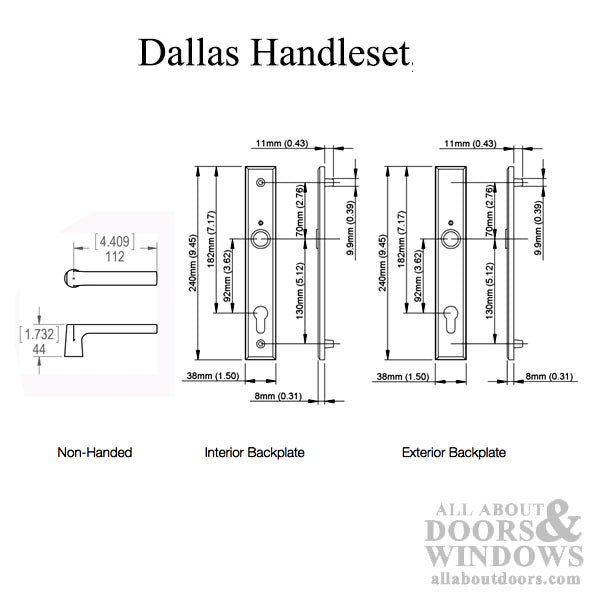

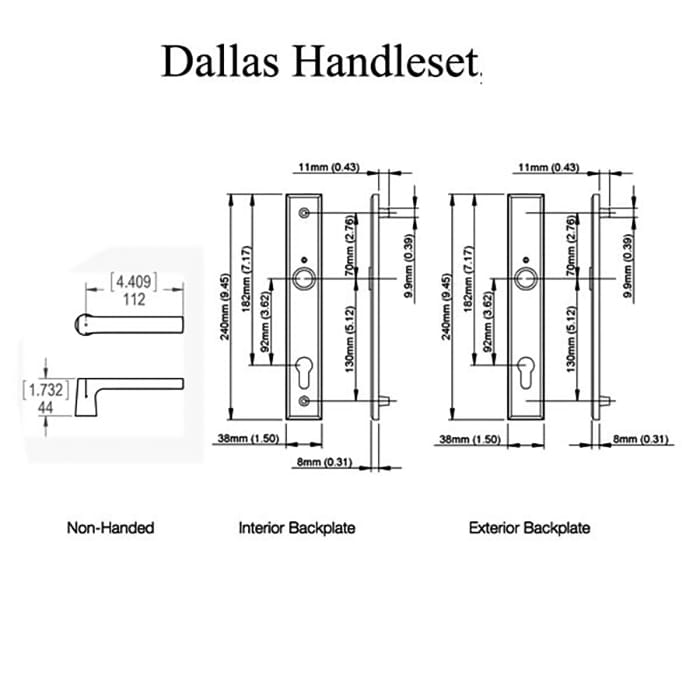

  • Escutcheon Plate: 9-7/16" x 1-1/2" (240mm x 38mm)
  • Screw Hole Centers: 8-5/8" (219mm)
  • Function: Active keyed
  • Finish: Matte Black (F9714M)
  • Material: Brass
  • Quick-Fit lever design – no set screw, held by spring tension
  • Includes special removal tool for lever handles

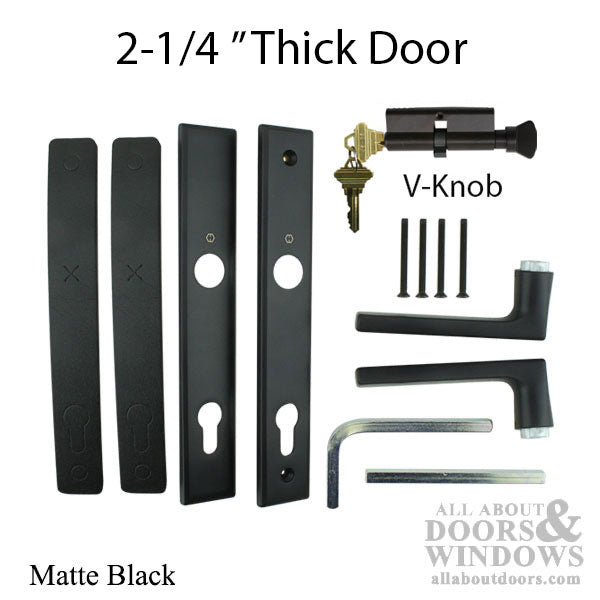

  • Sold as complete handleset
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

Hoppe Dallas Handleset – 92mm PZ, Matte Black (11687836)

The Hoppe Dallas Multipoint Lock Handle Set brings contemporary style to your entry door with its straight, modern lines. This active keyed handleset is designed for multipoint lock systems and features the M1643 lever on the 2161N back plate.

The Dallas Series uses Hoppe's Quick-Fit lever design, which means the lever is held in place by spring tension rather than a set screw. A special removal tool is included with the handleset for easy installation and removal. Note that the Dallas Series uses a different spindle than other Hoppe handlesets.

Technical Information

  • Style: Contemporary / Modern
  • Lever Model: M1643
  • Back Plate Model: 2161N
  • PZ (Handle to Cylinder Center): 3-5/8 inches (92mm)

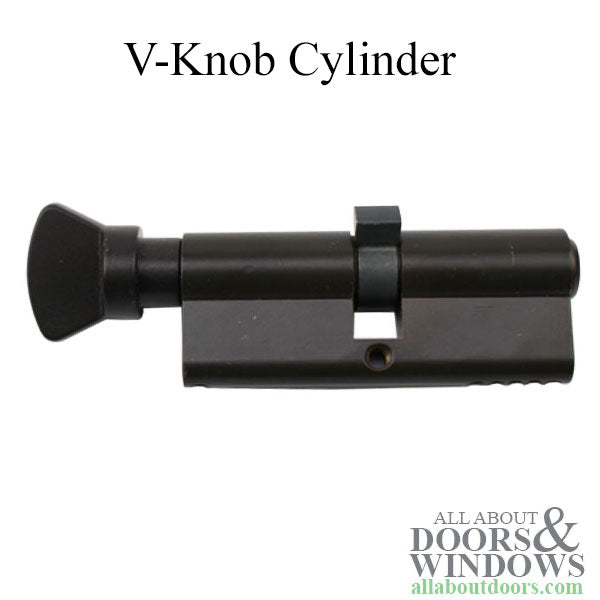

  • Cylinder: 40.5/40.5mm with V-Knob
  • Keyway: Schlage SC1 5-pin
  • Door Thickness: 2-1/4 or 2-3/8 inches (57mm or 60mm)
  • Spindle: 5/16 x 5-1/2 inches (8mm x 140mm)
  • Escutcheon Plate Length: 9-7/16 inches (240mm)
  • Escutcheon Plate Width: 1-1/2 inches (38mm)
  • Screw Hole Centers: 8-5/8 inches (219mm)
  • Material: Brass
  • Finish: Matte Black (F9714M)

Notes

  • Dallas Quick-Fit levers do not use set screws – held by spring tension
  • Special removal tool included for lever installation/removal
  • Dallas Series uses a unique spindle design
  • Also available in Polished Brass, Satin Nickel, and Dark Bronze Metallic
  • Available functions: Active with keyed cylinder, Inactive with 1/2 cylinder, Dummy fixed pair

Sold as complete handleset.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I remove the Dallas lever handle?

The Dallas Series uses a Quick-Fit design held by spring tension. Use the special removal tool included with the handleset – insert it into the hole in the lever shaft to release the lever.

What does PZ mean on a multipoint lock handleset?

PZ refers to the distance from the center of the handle to the center of the cylinder (keyhole). This handleset has a 92mm PZ measurement.

Will this handleset fit my door?

This handleset fits doors that are 2-1/4 or 2-3/8 inches thick and require a 92mm PZ spacing. Verify your multipoint lock specifications before ordering.
