Marvin Multipoint Lock Assembly for French Doors – 2-3/8" Backset, 3 Hooks (DISCONTINUED)

Marvin Multipoint Lock Assembly for French Doors – 2-3/8" Backset, 3 Hooks (DISCONTINUED)

SKU:

  • Status: DISCONTINUED - see replacement options below
  • Backset: 2-3/8" (60.3mm)
  • Locking Points: 3 (includes one safety strike)
  • Overall Length: 48" (1219.2mm)
  • Faceplate Width: 7/8" (22.2mm)
  • Distance Middle to Top Strike: 22" (558.8mm)
  • Distance Middle to Bottom Strike: 17-3/4" (450.9mm)

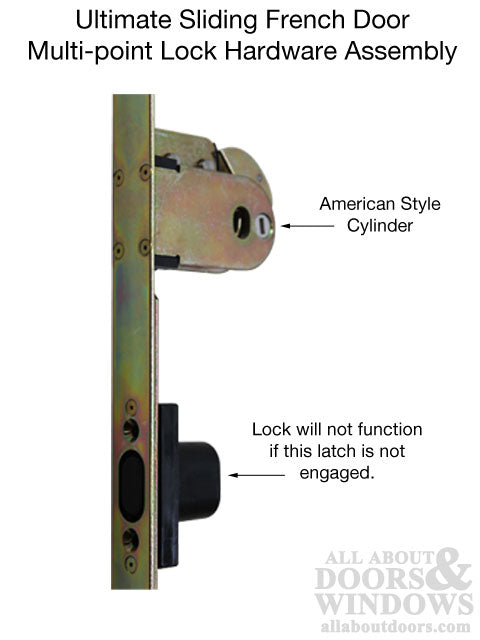

  • Cylinder Type: American style
  • For Active/Operative panel on French Doors and Ultimate Sliding French Doors
  • Safety strike prevents lock engagement unless activated
Discontinued and no longer available
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Marvin Multipoint Lock Assembly – DISCONTINUED (10145001)

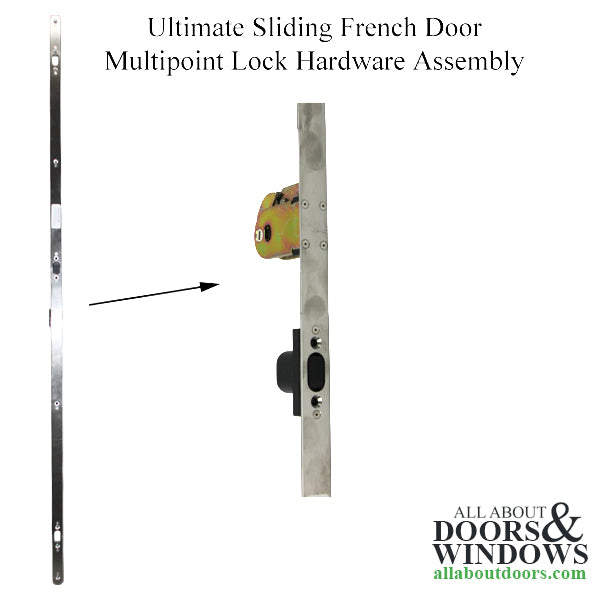

This multipoint lock hardware assembly for Marvin French Doors and Ultimate Sliding French Doors has been discontinued. This lock was designed for the active/operative panel and features 3 locking points, including one safety strike that prevents the lock from engaging unless properly activated.

The lock uses an American style cylinder to engage the locking strikes. The overall length is 48 inches (1219.2mm) with a faceplate width of 7/8 inches (22.2mm). The distance between the middle and top locking strikes is 22 inches (558.8mm), and the distance between the middle and bottom locking strikes is 17-3/4 inches (450.9mm).

Technical Information

  • Locking Points: 3
  • Overall Length: 48 inches (1219.2mm)
  • Faceplate Width: 7/8 inches (22.2mm)
  • Backset: 2-3/8 inches (60.3mm)
  • Cylinder Type: American style
  • Distance Middle to Top Strike: 22 inches (558.8mm)
  • Distance Middle to Bottom Strike: 17-3/4 inches (450.9mm)

Notes

This item has been discontinued. Replacement options require modifications to your door. The replacement lock (40214) uses a 1-3/4 inch backset instead of the original 2-3/8 inch backset, which will leave a 5/8 inch mark on the door edge from repositioning the handle.

Replaces / Replaced by

  • 40214 - Sliding Door Lock 3 Hooks, 1-3/4" backset (replacement lock)
  • 4991663 - Sliding Door 3 Point Strike Bar, W5203-76S1 Radius Ends, .755 offset
  • 8785695 - Installation Screws, 8mm Head, 1-3/8" Length (35mm) - Stainless Steel

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Why is this lock discontinued and what are my options?

This Marvin multipoint lock has been discontinued. You can either order a new door panel with current hardware, or modify your existing door to accept the replacement lock (40214) which has a different backset measurement.

What modifications are needed for the replacement lock?

The replacement lock (40214) uses a 1-3/4 inch backset instead of the original 2-3/8 inch backset. This will require moving the handle position, which will leave a 5/8 inch mark on the door edge.

What does the safety strike do on this lock?

The safety strike prevents the lock from being engaged unless it is properly activated, which helps prevent accidental lockouts and ensures secure operation.
