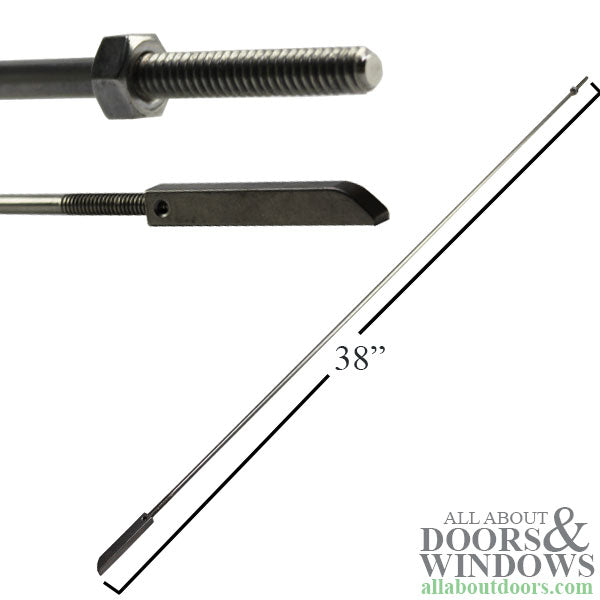

Marvin Top Locking Rod for 6' 8" Multipoint Doors – 38" Rod

SKU: 05700176

$75.91 - $75.91

$75.91

$75.91 - $75.91

$75.91

Application: Top locking rod for 6' 8" multipoint doors
Overall Rod Length: 38" (965.2mm)
Rod Diameter: 3/16" (4.8mm) stainless steel
End Bolt: 3/8" (9.5mm) square x 2-1/2" (63.5mm) aluminum with bevel
Lock Body End: 1/4-20 threaded, 1-3/8" (34.9mm)
Concealed rod design
Can be rehanded for left or right door configurations

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Marvin Top Locking Rod – 6' 8" Door (05700176)

This Marvin top locking rod is designed for 6 foot 8 inch multipoint door systems. The concealed rod design provides a clean appearance while delivering reliable locking performance at the top of your door.

The rod measures 38 inches (965.2mm) in overall length and features a 3/16 inch (4.8mm) diameter stainless steel construction for durability and corrosion resistance. The aluminum end bolt measures 3/8 inch (9.5mm) square by 2-1/2 inches (63.5mm) with a beveled edge for smooth operation.

The lock body end features 1/4-20 threading with a 1-3/8 inch (34.9mm) length for secure attachment to your multipoint lock body.

Technical Information

Overall Rod Length: 38 inches (965.2mm)
Rod Diameter: 3/16 inch (4.8mm)
Rod Material: Stainless Steel
End Bolt: 3/8 inch square x 2-1/2 inches aluminum with bevel
Lock Body End: 1/4-20 threaded, 1-3/8 inches
Door Height: 6 foot 8 inches

Notes

This locking rod can be rehanded to accommodate left or right door configurations
Concealed rod design for clean aesthetics

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can this locking rod be used on left-hand or right-hand doors?

Yes, this Marvin top locking rod can be rehanded to work with either left-hand or right-hand door configurations.

What door height is this locking rod designed for?

This top locking rod is specifically designed for 6 foot 8 inch multipoint doors.

What material is the rod made from?

The rod is made from stainless steel for durability and corrosion resistance, with an aluminum end bolt.
