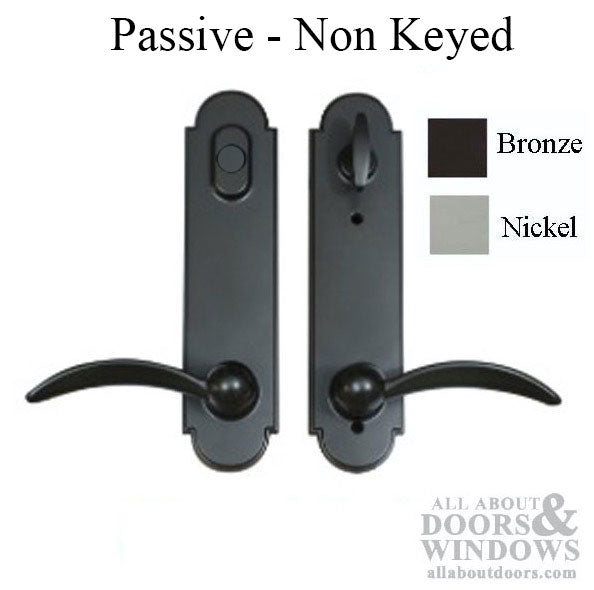

Trilennium Passive Handleset Trim with T-Turn Drive – 6" Handle Spacing

Trilennium Passive Handleset Trim with T-Turn Drive – 6" Handle Spacing

SKU

$179.98 - $379.86
$179.98
$179.98 - $379.86
$179.98
  • Handle to Cylinder Spacing: 6" (152.4mm)
  • Door Thickness: 1-3/4" (45mm)
  • Escutcheon Plate Width: 2-7/16" (61.9mm)
  • Escutcheon Plate Length: 10" (254mm)
  • Crossbore Options: 1-11/16" or 2-1/8"
  • Passive handleset trim with T-Turn drive for inactive panel operation
  • Lever handles do NOT move on this handleset
  • Compatible ONLY with Trilennium 3020 series Passive Multipoint Lock
  • Satin Nickel available in standard plated or TriLast tarnish-resistant finish
Visa Mastercard American Express Discover
Estimated Delivery
Between December 11 and December 15
*Delivery dates are estimates and may vary based on availability and shipping method

Trilennium Passive Handleset Trim – T-Turn, 6" Spacing (40071)

This Trilennium Passive Handleset Trim with T-Turn Drive is designed specifically for inactive panel multipoint door applications. The handleset works exclusively with the Trilennium 3020 series Passive Multipoint Lock, which is operated by the thumb turn mechanism. Note that the lever handles on this handleset are decorative and do not move during operation.

The trim features a 6 inch handle to cylinder spacing and is designed for standard 1-3/4 inch thick doors. The escutcheon plate measures 2-7/16 inches wide by 10 inches long, providing full coverage for your door preparation.

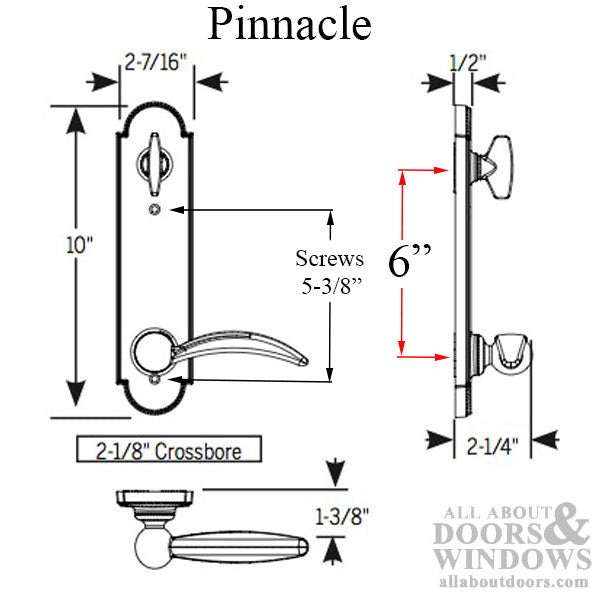

Technical Information

  • Handle to Cylinder Spacing: 6 inches (152.4mm)
  • Door Thickness: 1-3/4 inches (45mm)
  • Escutcheon Plate Width: 2-7/16 inches (61.9mm)
  • Escutcheon Plate Length: 10 inches (254mm)
  • Crossbore Options: 1-11/16 inches or 2-1/8 inches

Notes

  • Standard crossbore on most W&F or Endura hardware is 1-11/16 inches. Some doors use a 2-1/8 inch bore.
  • Pella Entry Door Cross Bore: 2-1/8 inches standard
  • Peachtree IPD Cross Bore: 1-11/16 inches standard
  • Handleset trim for 2-1/8 inch crossbore: Pinnacle, Eclipse, Rectangular & Grip Hardware
  • Handleset trim for 1-11/16 inch crossbore: Full W&F line including Horizon and some Emtek with 2 inch wide plates
  • Satin Nickel finish available in standard plated or TriLast finish which resists tarnishing and discoloration

Related Parts

  • PINL-THT-PB-175 - Bright Brass for 1-3/4" door
  • PINL-THT-SN-175 - Satin Nickel for 1-3/4" door
  • PINL-THT-VB-175 - Victorian Bronze for 1-3/4" door
  • PINL-THT-BK-175 - Black Powder Coat for 1-3/4" door
  • PINL-THT-SNTL-175 - Satin Nickel TriLast for 1-3/4" door
  • PINL-THT-VBTL-175 - Victorian Bronze TriLast for 1-3/4" door

For more information, visit the W&F Trilennium Hardware page.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Do the lever handles move on this handleset?

No, the lever handles on this passive handleset are decorative and do not move. The door is operated using the thumb turn mechanism.

What crossbore size do I need for this handleset?

This handleset fits both 1-11/16 inch and 2-1/8 inch crossbores. Standard W&F and Endura hardware uses 1-11/16 inch, while Pella entry doors typically use 2-1/8 inch.

What is the TriLast finish option?

TriLast is a special finish available on Satin Nickel and Victorian Bronze options that resists tarnishing and discoloration over time.
