Pella Eclipse Handleset with Kwikset SmartKey for Trilennium Multipoint Lock – 6" Spacing

Pella Eclipse Handleset with Kwikset SmartKey for Trilennium Multipoint Lock – 6" Spacing

SKU

$215.00 - $325.00
$215.00
$215.00 - $325.00
$215.00

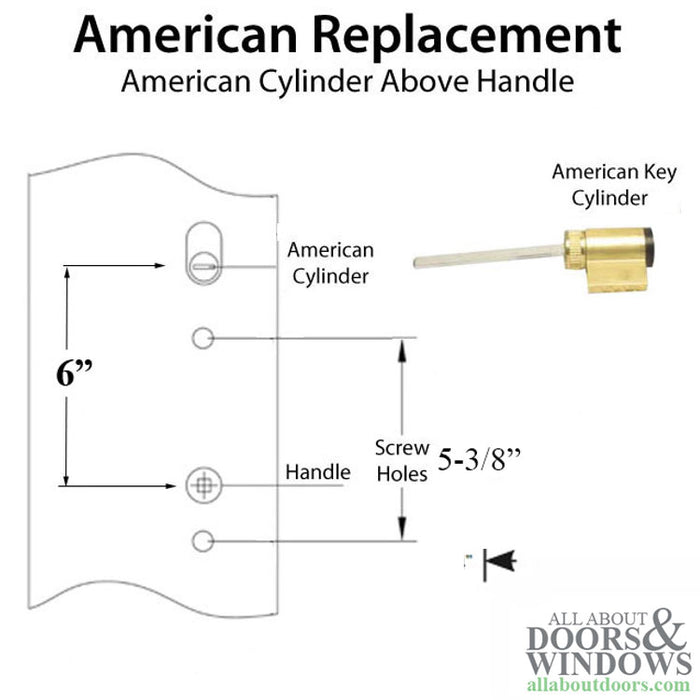

  • Handle to Cylinder Spacing: 6" (152.4mm)
  • Door Thickness: 1-3/4" (45mm)
  • Escutcheon Plate Width: 2-7/16" (61.9mm)
  • Escutcheon Plate Length: 10" (254mm)
  • Keyway: Kwikset SmartKey
  • Cross Bore Compatibility: 2-1/8" bore
  • Available Finishes: Satin Nickel, Victorian Bronze
  • Features SmartKey Security for easy re-keying
  • Designed for Trilennium Multipoint Lock systems
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

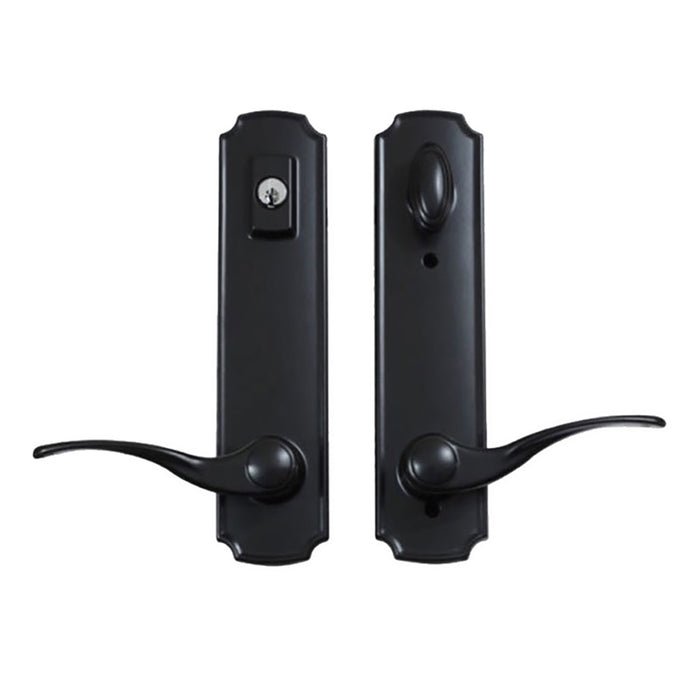

Pella Eclipse Handleset – Kwikset SmartKey, 6" Spacing (9060020)

The Pella Eclipse Handleset is designed for use with Trilennium Multipoint Lock systems and features a special Kwikset SmartKey cylinder. This handleset provides enhanced security with the convenience of SmartKey technology, allowing you to re-key your locks yourself so all your doors can share one key.

The Eclipse handleset features an escutcheon plate measuring 2-7/16 inches (61.9mm) wide by 10 inches (254mm) long, making it suitable for doors with a 2-1/8 inch cross bore. This larger escutcheon provides full coverage for doors with the larger bore size commonly found on some W&F or Endura Trilennium hardware.

Technical Information

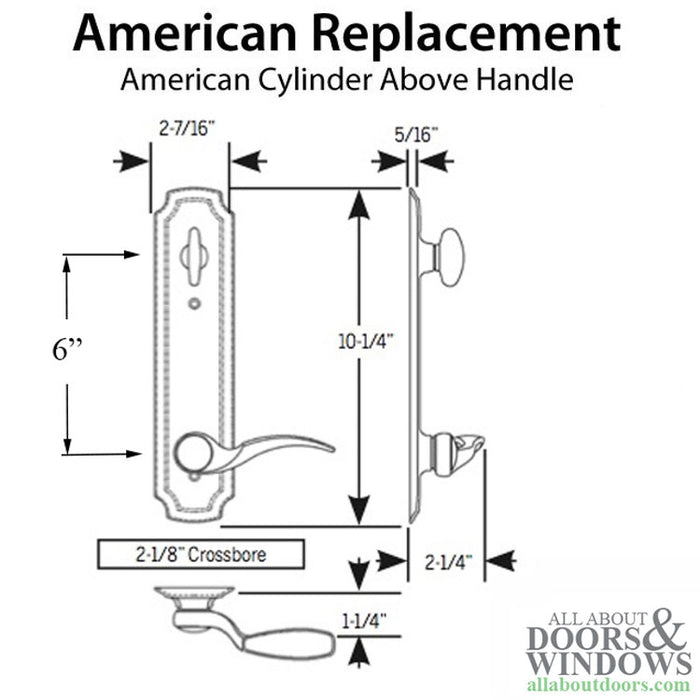

  • Handle to Cylinder Spacing: 6 inches (152.4mm)
  • Door Thickness: 1-3/4 inches (45mm)
  • Escutcheon Plate Width: 2-7/16 inches (61.9mm)
  • Escutcheon Plate Length: 10 inches (254mm)
  • Keyway: Kwikset SmartKey
  • Cross Bore Size: 2-1/8 inches

Notes

  • Available in Satin Nickel and Victorian Bronze finishes
  • For doors with a 2-1/8 inch cross bore, use Pinnacle, Eclipse, or Grip hardware
  • For doors with a 1-11/16 inch cross bore, use Emtek or Horizon hardware instead
  • Standard bore on most W&F or Endura Trilennium hardware is 1-11/16 inches

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I know if this handleset will fit my door?

This Eclipse handleset is designed for doors with a 2-1/8 inch cross bore. If your door has a 1-11/16 inch cross bore, you will need Emtek or Horizon hardware instead.

What is SmartKey Security and how does it work?

SmartKey Security allows you to re-key your lock yourself without removing it from the door. This lets you set all your doors to use the same key for convenience.

What door thickness does this handleset fit?

This handleset is designed for doors that are 1-3/4 inches (45mm) thick.
