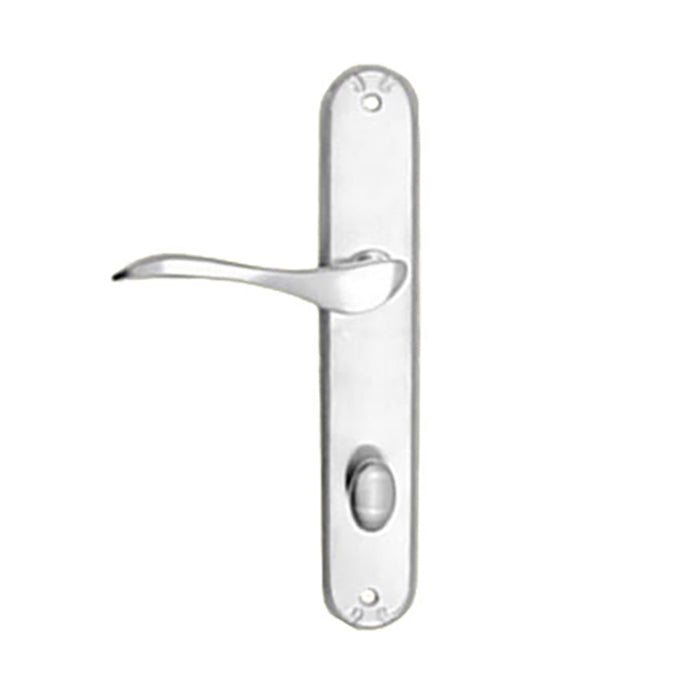

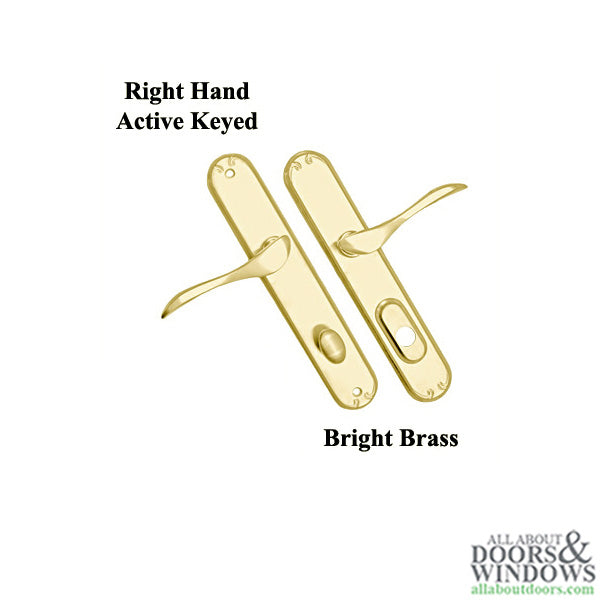

Pella Right Hand Active Handle Set for Hinged Door – 92mm PZ

SKU

$599.88 - $1,066.88

$599.88

$599.88 - $1,066.88

$599.88

PZ: 3-5/8" (92mm) from center of handle to center of thumbturn
Handing: Right Hand (can be changed to Left Hand with O-ring pliers)
Cylinder Type: American with flat tailpiece (key lock NOT included)
Escutcheon Plate Height: 9-7/8" (250.8mm)
Escutcheon Plate Width: 1-3/4" (44.5mm)
Escutcheon Plate Screw Hole Center: 8-3/8" (212.7mm)
Spindle Length: 4-1/4" (108mm)
Spindle Diameter: 5/16" (7.9mm)
Compatibility: Pella Proline multipoint lock hardware trim (also works with Architectural or Designer Series)
Special Order: No cancellations, returns, exchanges, or refunds
Priced and sold as kit with installation screws

Quantity

Estimated Delivery

Between December 13 and December 17

*Delivery dates are estimates and may vary based on availability and shipping method

Product Details

Pella RH Active Handle Set – 92mm PZ (9060002)

This Pella Right Hand Active Handle Set is designed for hinged doors with multipoint lock systems. It features Pella's proprietary hardware trim design originally made for the Proline series, but it is also compatible with Architectural and Designer Series doors.

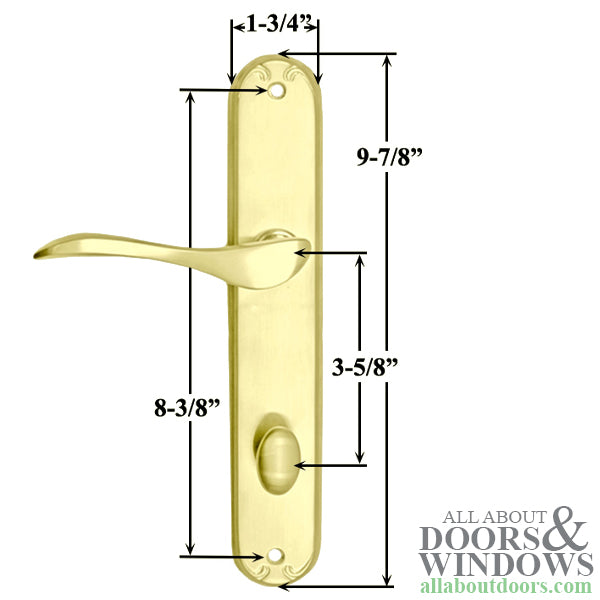

The handle set includes the exterior and interior trim with a 3-5/8 inch (92mm) PZ measurement from the center of the handle to the center of the thumbturn. The escutcheon plate measures 9-7/8 inches (250.8mm) in height and 1-3/4 inches (44.5mm) in width, with screw hole centers at 8-3/8 inches (212.7mm). The spindle is 4-1/4 inches (108mm) long with a 5/16 inch (7.9mm) diameter.

This handle set accepts an American cylinder with a flat tailpiece, but the key lock cylinder is not included and must be purchased separately. The handle is configured for right-hand doors but can be changed to left-hand orientation using O-ring pliers.

Technical Information

PZ (Handle to Thumbturn Center): 3-5/8 inches (92mm)
Escutcheon Plate Height: 9-7/8 inches (250.8mm)
Escutcheon Plate Width: 1-3/4 inches (44.5mm)
Escutcheon Plate Screw Hole Center: 8-3/8 inches (212.7mm)
Spindle Length: 4-1/4 inches (108mm)
Spindle Diameter: 5/16 inch (7.9mm)
Handing: Right Hand (reversible to Left Hand)
Cylinder Type: American with flat tailpiece

Notes

Key lock cylinder is NOT included
Handing is determined by viewing the door from outside your home by hinge location; the lever points towards the hinges
This is a special order item with no cancellations, returns, exchanges, or refunds

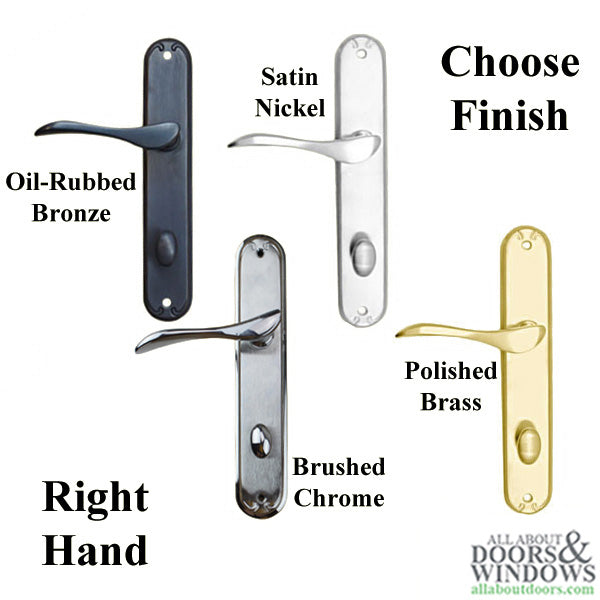

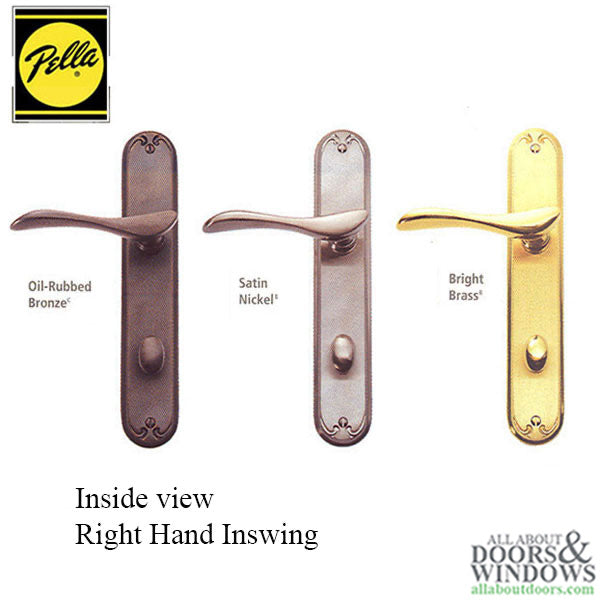

Available finishes: Flat Black (Matte), Polished Brass, Brushed Satin Nickel, Oil Rubbed Bronze, Polished Chrome, Brown

Related Parts

9060003 - Left Hand Active Handle Set
9060004 - Right Hand Dummy (Inactive) Handle Set
9060005 - Left Hand Dummy (Inactive) Handle Set
9060000 - Pella Replacement Cylinder, Schlage Key
14429 - Generic Pella Replacement Cylinder, Kwikset/Weiser Key
395007 - Expressions 12" Face Plate, Arch Non-Handed Active Keyed with Thumbturn
395009 - Expressions 12" Face Plate, Square Non-Handed Active Keyed with Thumbturn

Priced and sold as a kit with installation screws.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Does this handle set include the key lock cylinder?

No, the key lock cylinder is not included and must be purchased separately. This handle set accepts an American cylinder with a flat tailpiece.

Can I change the handing on this handle set?

Yes, this right-hand handle set can be changed to left-hand orientation using O-ring pliers.

How do I determine if I need a right-hand or left-hand handle set?

View the door from outside your home and note the hinge location. The lever points towards the hinges. If the hinges are on the right side, you need a right-hand handle set.
