Endura Trilennium 3000 Multipoint Lock – 60mm Backset, Locking Latch Bolts

SKU:

$330.00 - $528.81

$330.00

$330.00 - $528.81

$330.00

Backset: 2-3/8" (60mm)
PZ: Not specified - contact us for details
Faceplate Width: 1" (25.4mm)
Faceplate Length: 65-9/16" (1665mm) with radius ends
Deadbolt Throw: 15/16" (24mm)
Top Latching Bolt: 33" (838mm) from center bolt
Bottom Latching Bolt: 24-1/4" (616mm) from center bolt
Spindle Diameter: 1/4" (7mm)
Cylinder Type: American with flat tailpiece (not included)
Available Finishes: Polished Brass, Victorian Bronze, Stainless Steel
Handing: Left-handed (reversible)
Crossbore Options: Standard 2-1/8" or optional 1-11/16"
Panic release function - inside handle unlocks door
Configured for inswing doors - check panic function for outswing
Strike kit and accessories ordered separately
Priced and sold each

Quantity

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

Endura Trilennium 3000 Multipoint Lock (499130003)

The Endura Trilennium 3000 Series Multi-Point Lock provides secure three-point locking with a center deadbolt and two latching bolts. This lock assembly features a panic release function, allowing the inside handle to unlock the door for safe egress.

All locks are configured for inswing doors. If you have an outswing door, the panic function must be verified before installation. The lock is left-handed but can be reversed for right-hand applications.

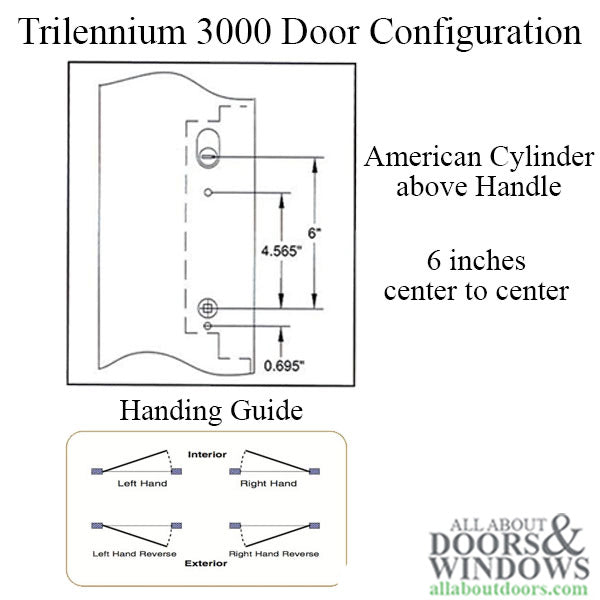

Technical Information

Backset: 2-3/8 inches (60mm)
Faceplate Width: 1 inch (25.4mm)
Faceplate Length: 65-9/16 inches (1665mm) with radius ends
Deadbolt Throw: 15/16 inch (24mm)
Top Latching Bolt Position: 33 inches (838mm) from center bolt
Bottom Latching Bolt Position: 24-1/4 inches (616mm) from center bolt
Spindle Diameter: 1/4 inch (7mm)
Cylinder Type: American with flat tailpiece (not included)
Available Faceplate Finishes: Polished Brass, Victorian Bronze, Stainless Steel
Country of Origin: Made in USA

Notes

Standard Crossbore: 2-1/8 inches - compatible with Pinnacle, Eclipse, and Grip hardware
Optional Crossbore: 1-11/16 inches - compatible with Europa, Horizon, and Emtek hardware
Horizon and Europa plates are only 1-7/8 inches wide and will not cover the 2-1/8 inch crossbore used on Pella and other doors with larger holes
Handle moves down only to operate
To lock: Use key or thumb turn to extend latch to deadbolt function
To unlock: Use key outside or thumb turn/lever inside

Lock assembly only - strike kit and accessories not included, ordered separately. Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

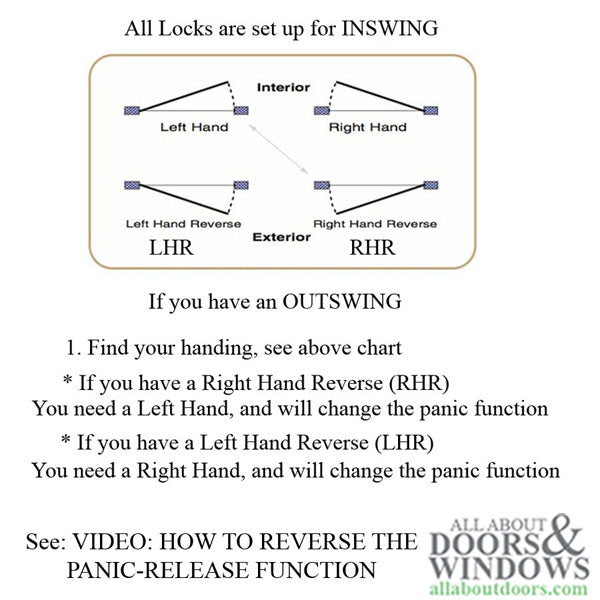

How do I determine the handing for this lock?

As viewed from outside, the hinge determines handing. If the hinge is on the left side, it is a left-hand door. This lock comes left-handed but can be reversed.

What crossbore size do I need for this lock?

The standard Trilennium crossbore is 2-1/8 inches, compatible with Pinnacle, Eclipse, and Grip hardware. An optional 1-11/16 inch crossbore works with Europa, Horizon, and Emtek hardware.

Can I use this lock on an outswing door?

Yes, but all locks are set up for inswing doors. If you have an outswing door, the panic function needs to be checked before installation.
