Endura Trilennium 3000 Multipoint Lock – 60mm Backset, 25mm Faceplate

SKU:

$302.50 - $456.98

$302.50

$302.50 - $456.98

$302.50

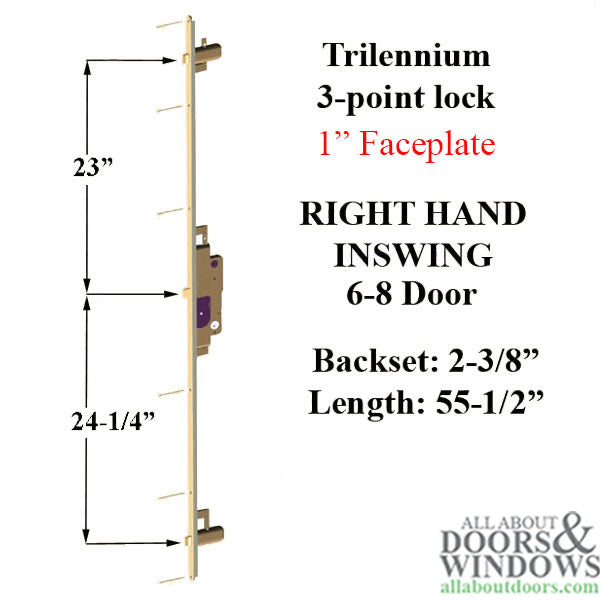

Backset: 2-3/8" (60mm)
Faceplate Width: 1" (25.4mm)
Faceplate Length: 55-1/2" (1410mm) with radius ends
Deadbolt Throw: 15/16" (23.8mm)
Top Latching Bolt: 23" (584.2mm)
Bottom Latching Bolt: 24-1/4" (616mm)
Spindle Diameter: 1/4" (7mm)
Standard Cross Bore: 2-1/8" for Pinnacle, Eclipse & Grip hardware
Optional Cross Bore: 1-11/16" for Europa, Horizon & Emtek hardware
Cylinder Type: American with flat tailpiece (not included)
Handing: Reversible, set up for left or right hand doors
Panic Release: Yes, pressing inside handle unlocks
Available in 10 faceplate finishes

Quantity

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

Endura Trilennium 3000 Multipoint Lock (499130002)

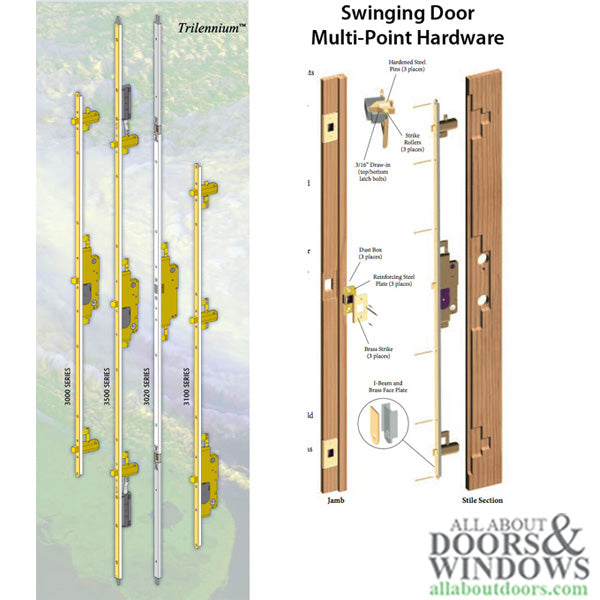

The Endura Trilennium 3000 Series Multi-Point Lock provides reliable security with a deadbolt and dual latching bolts for three-point engagement. This lock features a 2-3/8 inch (60mm) backset and a 1 inch (25.4mm) wide faceplate with radius ends, measuring 55-1/2 inches (1410mm) in total length.

The standard 2-1/8 inch cross bore accommodates Pinnacle, Eclipse, and Grip hardware. An optional 1-11/16 inch cross bore configuration works with Europa, Horizon, and Emtek hardware. Note that Horizon and Europa plates are only 1-7/8 inches wide and will not cover the 2-1/8 inch cross bore used on Pella and other doors with larger holes.

This lock uses an American cylinder with a flat tailpiece (cylinder not included). The handle operates in a downward motion only. To lock, use the key or thumb turn to extend the latch to deadbolt function. To unlock, use the key from outside or the thumb turn/lever from inside. The panic release feature allows the inside handle to unlock the door when pressed down.

Technical Information

Backset: 2-3/8 inches (60mm)
Faceplate Width: 1 inch (25.4mm)
Faceplate Length: 55-1/2 inches (1410mm)
Deadbolt Throw: 15/16 inch (23.8mm)
Top Latching Bolt: 23 inches (584.2mm)
Bottom Latching Bolt: 24-1/4 inches (616mm)
Spindle Diameter: 1/4 inch (7mm)
Standard Cross Bore: 2-1/8 inches
Optional Cross Bore: 1-11/16 inches

Notes

Handing is reversible and viewed from outside the door
Available in 10 faceplate finishes
Horizon and Europa plates will not cover 2-1/8 inch cross bore openings

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What cylinder type does this lock require?

This lock uses an American cylinder with a flat tailpiece. The cylinder is not included and must be purchased separately.

Can this lock be used on both left and right hand doors?

Yes, this lock is reversible and can be set up for either left or right hand doors as viewed from outside.

What hardware is compatible with the standard cross bore?

The standard 2-1/8 inch cross bore accommodates Pinnacle, Eclipse, and Grip hardware. For Europa, Horizon, or Emtek hardware, use the optional 1-11/16 inch cross bore configuration.
