Endura Trilennium 3000 Multipoint Lock – 60mm Backset, Left Inswing

SKU:

$302.50 - $407.08

$302.50

$302.50 - $407.08

$302.50

Backset: 2-3/8" (60mm)
Faceplate Width: 1" (25.4mm)
Faceplate Length: 55-1/2" (1410mm) with radius ends
Faceplate Colors Available: Bright Brass, Victorian Bronze, Stainless Steel
Deadbolt Throw: 15/16" (23.8mm)

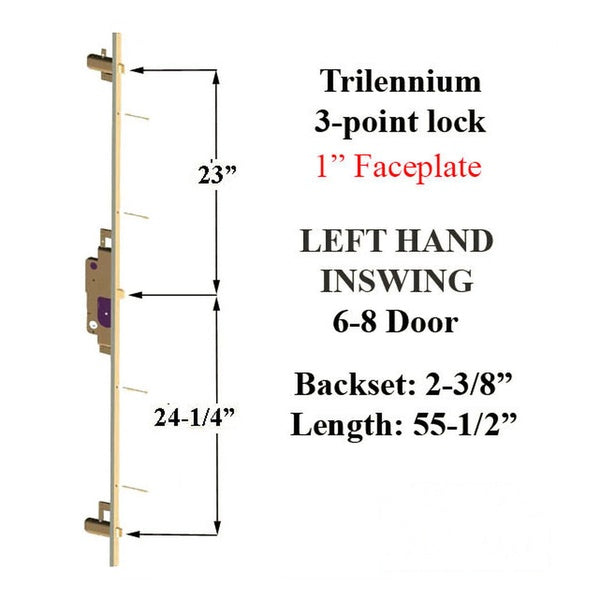

Top Latching Bolt: 23" (584.2mm)
Bottom Latching Bolt: 24-1/4" (615.9mm)
Spindle Diameter: 1/4" (7mm)
Cylinder Type: American with flat tailpiece (not included)
Handing: Left-handed inswing
Panic Release: Yes, pressing inside handle unlocks door
Standard Crossbore: 2-1/8" (for Pinnacle, Eclipse & Grip hardware)
Optional Crossbore: 1-11/16" (for Europa, Horizon & Emtek hardware)
Lock assembly only, no additional hardware included
Priced and sold each

Quantity

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

Endura Trilennium 3000 Multipoint Lock – Left Inswing (499130001)

The Endura Trilennium 3000 Series Multi-Point Lock features locking latch bolts for enhanced security on residential entry doors. This lock assembly is configured for left-handed inswing doors and includes panic release functionality for safe egress.

All Trilennium locks are factory set for inswing doors. If you have an outswing door, the panic function must be checked before installation to ensure proper operation.

Technical Information

Backset: 2-3/8 inches (60mm)
Faceplate Width: 1 inch (25.4mm)
Faceplate Length: 55-1/2 inches (1410mm) with radius ends
Faceplate Colors: Bright Brass, Victorian Bronze, Stainless Steel
Deadbolt Throw: 15/16 inch (23.8mm)
Top Latching Bolt: 23 inches (584.2mm)
Bottom Latching Bolt: 24-1/4 inches (615.9mm)
Spindle Diameter: 1/4 inch (7mm)
Cylinder Type: American with flat tailpiece (not included)
Handing: Left-handed inswing
Country of Origin: Made in USA

Notes

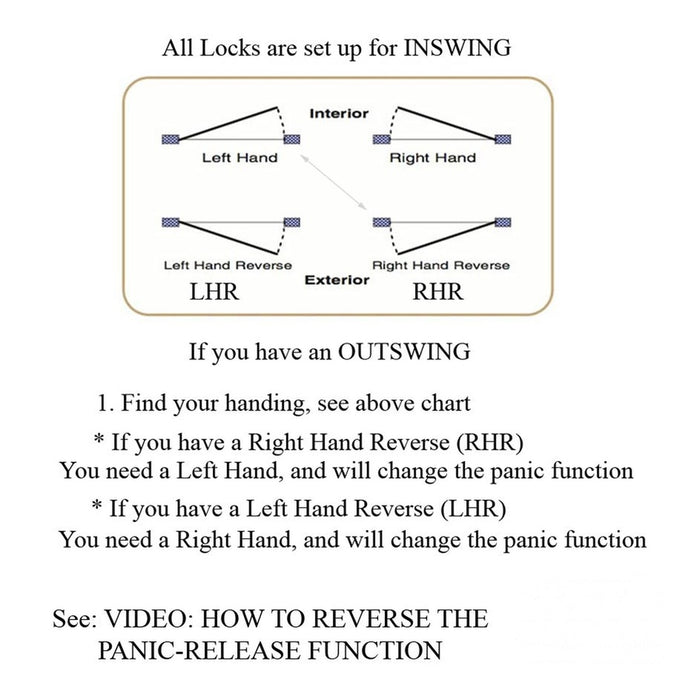

As viewed from outside, hinge determines handing. If hinge is on left, it is a left hand door.
Handle moves down only
To lock: Use key or thumb turn to extend latch to deadbolt function
To unlock: Use key outside or thumb turn/lever inside
Panic Release: Pressing down on inside handle will unlock door
Standard Trilennium Crossbore: 2-1/8 inches (use Pinnacle, Eclipse & Grip hardware)
Optional Crossbore: 1-11/16 inches (use Europa, Horizon & Emtek hardware)
The Horizon and Europa plates are only 1-7/8 inches wide and will not cover the 2-1/8 inch crossbore used on Pella and other doors with larger holes

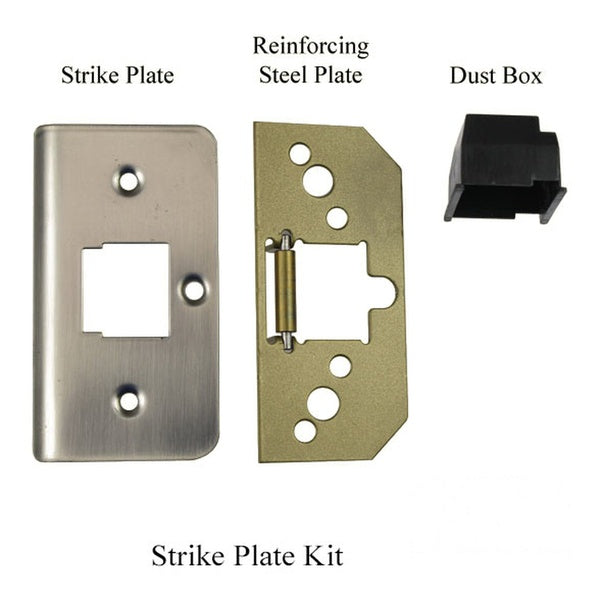

Optional strike kit and accessories not included. Lock assembly only, no additional hardware. Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I determine if this lock fits my door handing?

As viewed from outside your door, look at where the hinges are located. If the hinges are on the left side, you have a left-hand door and this lock will work for you.

Does this lock include a cylinder?

No, this lock requires an American cylinder with a flat tailpiece, which is sold separately.

What is the panic release feature?

The panic release allows you to unlock the door by simply pressing down on the inside handle, providing quick egress in emergency situations.
