Amesbury P2000 Shootbolt Multipoint Lock for Pella – 45mm Backset, 92mm PZ, 35-11/32" Handle Height

Amesbury P2000 Shootbolt Multipoint Lock for Pella – 45mm Backset, 92mm PZ, 35-11/32" Handle Height

SKU: 4990637-KIT

$379.00 - $379.00
$379.00
$379.00 - $379.00
$379.00
  • PZ: 3-5/8" (92mm) – handle to thumbturn
  • Backset: 1-3/4" (45mm)
  • Handle Height: 35-11/32" (897.6mm)
  • Faceplate Length: 83" (2109.7mm) with shootbolts retracted
  • Faceplate Width: 5/8" (16mm)
  • Deadbolt Throw: 1" (25mm)
  • Cylinder Type: American cylinder with flat tail piece
  • Faceplate Markings: Lower LF2400, Upper UF2414
  • Shootbolts attached to lock – cannot be cut down
  • Special size, non-stock item
  • Sold as complete kit
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.
*We have a fully-staffed customer support team happy to help!

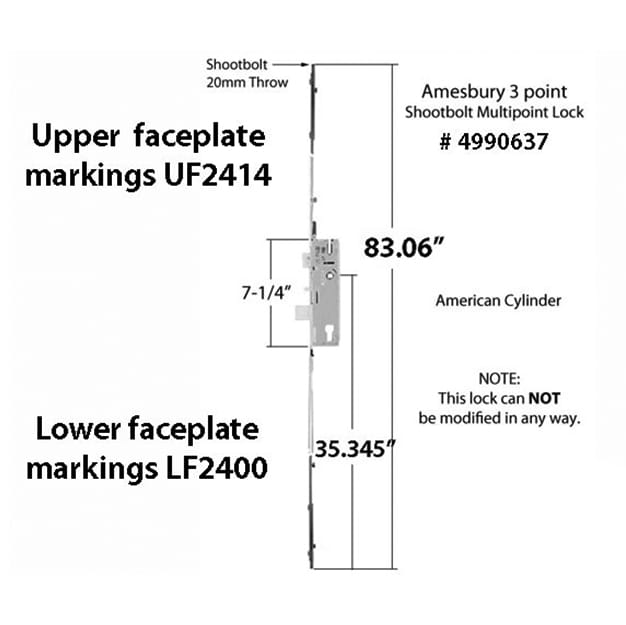

Amesbury P2000 Shootbolt Multipoint Lock – 45/92, 35" HH (4990637-KIT)

This Amesbury P2000 active shootbolt multipoint lock is a special size configuration designed for Pella doors. The shootbolts are permanently attached to the lock body and cannot be cut down, making proper measurement essential before ordering.

This lock features a 1-3/4 inch (45mm) backset with a 3-5/8 inch (92mm) PZ measurement from handle center to thumbturn center. The handle height measures 35-11/32 inches (897.6mm), and the faceplate extends 83 inches (2109.7mm) in the unlocked position with shootbolts retracted. The faceplate width is 5/8 inch (16mm).

The lock uses an American cylinder with a flat tail piece and delivers a 1 inch (25mm) deadbolt throw for secure locking.

Technical Information

  • Handle Height: 35-11/32 inches (897.6mm)
  • Faceplate Length: 83 inches (2109.7mm) – shootbolts retracted
  • Faceplate Width: 5/8 inch (16mm)
  • Backset: 1-3/4 inches (45mm)
  • PZ: 3-5/8 inches (92mm)
  • Deadbolt Throw: 1 inch (25mm)
  • Cylinder Type: American cylinder with flat tail piece
  • Faceplate Markings: Lower LF2400, Upper UF2414

Notes

  • Special size, non-stock item – contact office for availability
  • Shootbolts are attached and cannot be cut down
  • If your lock is broken, consider replacing the lock case only and reusing your other parts
  • Similar configurations: 8045230681 (83.87 inch height), 8045241479 (83.065 inch height)
  • Lock handing can be changed – see Amesbury lock handing instructions

Related Parts

  • P2000-45 – Replacement Lock Case

Sold as complete kit.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can this lock be cut down to fit a shorter door?

No, the shootbolts are permanently attached to this lock body and cannot be cut down. You must ensure your door measurements match before ordering.

What if only my lock case is broken?

If your lock case is broken but other components are functional, you can order the replacement lock case P2000-45 and reuse your existing parts.

Can I change the handing on this Amesbury lock?

Yes, Amesbury locks can be rehanded. Refer to the Amesbury lock handing instructions for the proper procedure.
