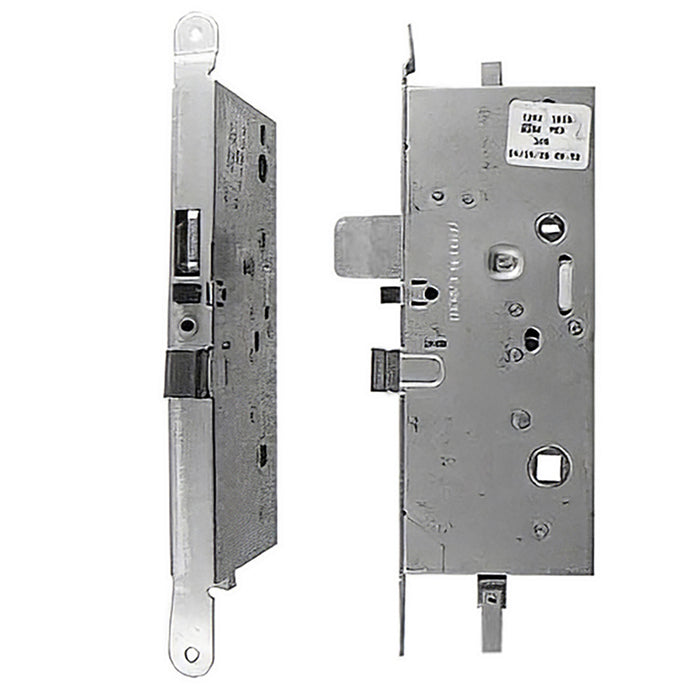

Ashland Active Multipoint Lock Body for Marvin Ultimate Doors – 60mm Backset, 92mm PZ

SKU: 4991637

$136.76 - $136.76

$136.76

$136.76 - $136.76

$136.76

PZ (Handle Spacing): 3-5/8" (92mm)
Backset: 2-3/8" (60mm) with faceplate
Deadbolt Throw: 1" (25.4mm) tapered
Cylinder Type: American 5-pin
Stamped: Patent NO. 6,209,931
Compatibility: Marvin Ultimate Inswing/Outswing doors (1/17/2000 to present)
Active multipoint lock body for use with concealed rods
Lock case only – rods not included
Sold individually

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

Ashland Multipoint Lock Body – 60/92 (4991637)

This active multipoint mortise lock body is designed to fit Marvin Ultimate Inswing and Outswing doors manufactured from January 17, 2000 to present. The lock body works with concealed rods that screw into the top and bottom of the door, providing secure three-point locking when engaged.

The lock features a 2-3/8 inch (60mm) backset with faceplate and 3-5/8 inch (92mm) handle spacing (PZ). It uses an American 5-pin cylinder and has a 1 inch (25.4mm) tapered deadbolt throw for reliable security.

Stamped With

Patent NO. 6,209,931

Technical Information

PZ (Handle Spacing): 3-5/8 inches (92mm)
Backset: 2-3/8 inches (60mm) with faceplate (measures 2-5/16 inches as shown)
Deadbolt Throw: 1 inch (25.4mm) tapered
Cylinder Type: American 5-pin
Marvin Part Number: 05700130

Notes

Lock case only – does not include top or bottom rods
Can be rehanded by inserting a screwdriver into the slot behind the latch, pulling down on the handing release, rotating the latch, and pushing back into the lock case
Always test lock function before closing the door
When reinstalling, the bottom plastic guide may need to be removed to reinsert the rod

Related Parts

40160 - Single point lock (no rods)
395040 - Faceplate for single point lock

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Does this lock body include the locking rods?

No, this is the lock case only. The concealed rods that screw into the top and bottom of the door are sold separately.

Can I change the handing on this lock?

Yes, insert a screwdriver into the slot behind the latch, pull down on the handing release until the latch pops out, rotate the latch, and push it back into the lock case. Always test the lock before closing the door.

What doors is this lock compatible with?

This lock body fits Marvin Ultimate Inswing and Outswing doors manufactured from January 17, 2000 to present.
