Essve Multipoint Lock for 6' 8" & 7' Doors – 45mm Backset, 92mm PZ, American Cylinder

SKU: 499051499

See Notes for Info

Type: 3-Point Multipoint Lock (2 hooks and deadbolt)
Backset: 1-3/4" (45mm)
PZ (Handle Spacing): 3-5/8" (92mm)
Faceplate Width: 25/32" (20mm)
Overall Faceplate Length: 68" (1727mm) with radius (rounded) ends
Door Size: Fits 6' 8" and 7' tall doors
Cylinder Type: American cylinder slot
Center of Handle to Bottom Hook: 26" (660mm)
Center of Handle to Top Hook: 46-1/4" (1175mm)
Status: Discontinued – Custom replacement available

Discontinued and no longer available

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

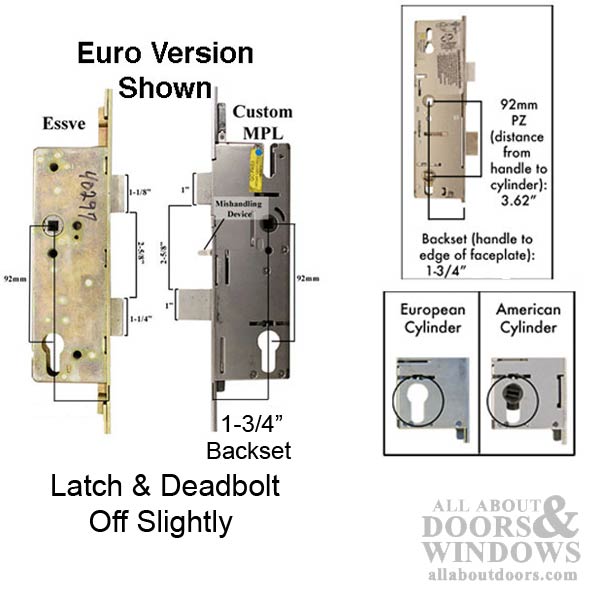

Essve 3-Point Multipoint Lock – 45/92, American Cylinder (499051499)

This Essve multipoint lock features a 3-point locking system with 2 hooks and a deadbolt, providing secure multi-point engagement for residential entry doors. Designed with a slot for an American cylinder, this lock was distributed by Truth Hardware and commonly used by Marvin, Pease, and other door manufacturers.

The lock has a 1-3/4 inch (45mm) backset and standard 3-5/8 inch (92mm) handle spacing (PZ). The faceplate measures 25/32 inches (20mm) wide with an overall length of 68 inches (1727mm) featuring radius (rounded) ends. This lock fits 6 foot 8 inch and 7 foot tall doors.

Technical Information

Type: 3-Point Lock (2 hooks and deadbolt)
Brand: Essve by Truth
Faceplate Width: 25/32 inches (20mm)
Overall Faceplate Length: 68 inches (1727mm) with radius ends
Lock Backset: 1-3/4 inches (45mm)
Handle Spacing (PZ): 3-5/8 inches (92mm)
Center of Handle to Bottom Hook: 26 inches (660mm)
Center of Handle to Top Hook: 46-1/4 inches (1175mm)
Door Size: 6' 8" and 7' tall doors
Cylinder Type: American cylinder

Notes

This item is discontinued. A custom replacement is available.
The original Essve was available with either an American or European profile cylinder. This is the American cylinder version.
For double French doors, the replacement will work but may require slightly enlarging the receptacle hole in the passive door.
If the passive lock fails at a later date, no replacement is currently available.
For additional information, contact: Rory@allaboutdoors.com

Related Parts

4990615-Kit: Custom 68-1/8 inch Multipoint Lock with squared off ends for single active door. This replacement kit is made to fit the cutout in the door panel; hook placement is slightly different. Installation requires minor modifications including cutting the locking rails to length, mortising the groove in the door to fit the new square shape, chiseling out certain areas for the new door lock railing and locking mechanism, and possibly enlarging the hole in the latch or hook strike plate.

Discontinued item.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the difference between American and European cylinder locks?

American cylinders have a different profile shape than European cylinders. This Essve lock is designed specifically for American cylinder profiles, which are commonly used in North American doors.

What modifications are needed to install the replacement lock?

The replacement requires cutting the locking rails to length, mortising the door groove to fit the new square shape, chiseling out areas for the locking mechanism, and possibly enlarging the strike plate holes.

Can this lock be used on double French doors?

Yes, but the replacement may require slightly enlarging the receptacle hole in the passive door. Note that if the passive lock fails later, no replacement is currently available.
