Marvin Passive Vertical Rod Lock Body – 92mm PZ, for In-Active Doors

Marvin Passive Vertical Rod Lock Body – 92mm PZ, for In-Active Doors

SKU: 10148040

  • PZ: 92mm (3-5/8")
  • Faceplate Width: 3/4" (19mm)
  • Faceplate Length: 8-3/8" (212.7mm)
  • Lock Body Length: 6" (152.4mm)
  • Lock Body Depth: 3" (76.2mm)
  • Standard Handle Height: 36" (914.4mm)
  • Faceplate Style: Radius / Rounded Corners
  • Passive/inactive multipoint lock body for in-active doors
  • No spring latch or deadbolt – designed to work with an active multipoint lock
  • Vertical locking rods screw into the mortise lock body (rods sold separately)
  • Available for door heights: 6' 6", 6' 8", 7', and 8'
  • Discontinued: No longer available for purchase
Discontinued and no longer available
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.
*We have a fully-staffed customer support team happy to help!

Marvin Passive Vertical Rod Lock Body (10148040)

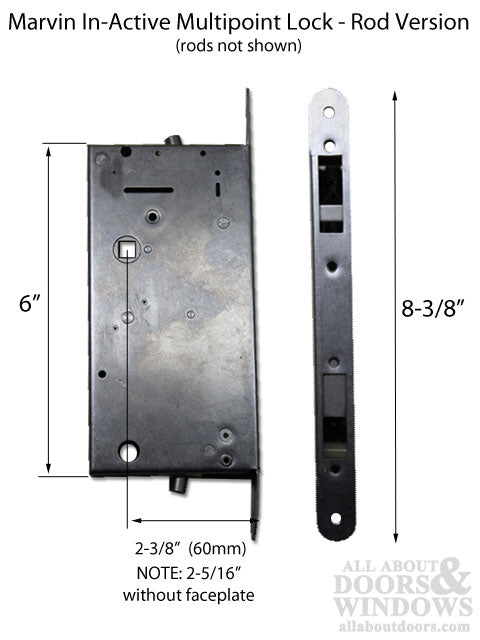

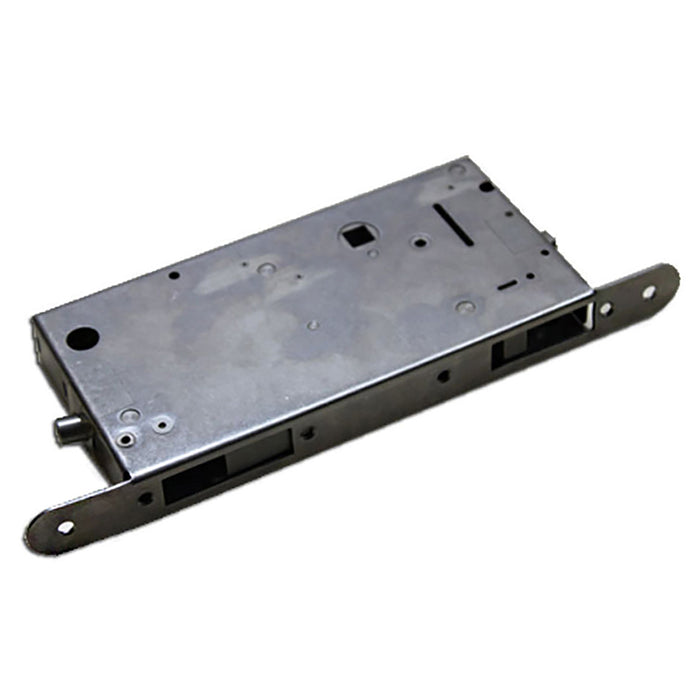

This Marvin passive vertical rod multipoint lock body is designed for in-active doors in a double-door configuration. The lock body accepts a pair of vertical locking rods that screw directly into the mortise lock housing, providing secure top and bottom engagement points.

Unlike active multipoint locks, this passive version does not include a spring latch or deadbolt. It is specifically engineered to work in conjunction with an active multipoint lock on the primary door, allowing the in-active door to be secured when closed.

Technical Information

  • Lock Body Length: 6 inches (152.4mm)
  • Lock Body Depth: 3 inches (76.2mm)
  • Handle Height (H.H.): Standard 36 inches (914.4mm)
  • Handle Spacing (PZ): 92mm (3-5/8 inches)
  • Faceplate Style: Radius / Rounded Corners
  • Faceplate Length: 8-3/8 inches (212.7mm)
  • Faceplate Width: 3/4 inch (19mm)
  • Installation Screws: 7 screws, 1/2 inch

Notes

  • Locking rods sold separately – available for 6' 6", 6' 8", 7', and 8' door heights
  • To select the correct rod size, measure the total height of your door
  • For non-standard handle heights above 36 inches, purchase longer rods and trim excess
  • Example: For a 7' door with 40-inch handle height, use 8' door rods and cut to fit
  • This product has been discontinued and is no longer available for purchase

Priced and sold as lock body only – rods not included.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is a passive or in-active multipoint lock?

A passive or in-active multipoint lock is used on the stationary door in a double-door setup. It has no latch or deadbolt and works together with an active lock on the primary door to secure both doors.

How do I choose the correct locking rod size?

Measure the total height of your door and select the corresponding rod size. If you need a non-standard handle height, purchase longer rods and trim the excess.

Are the locking rods included with this lock body?

No, the locking rods are sold separately. You will need to purchase rods that match your door height.
