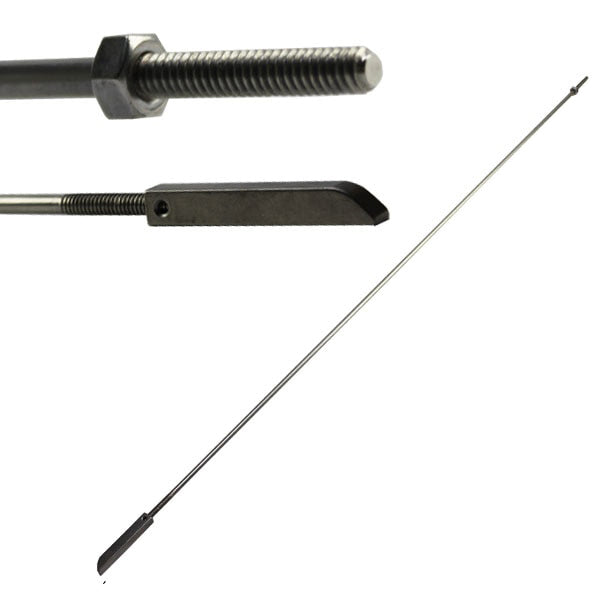

Marvin Bottom Locking Rod for Multipoint Doors – 34-9/32" Rod

SKU: 05700170

$58.68 - $58.68

$58.68

$58.68 - $58.68

$58.68

Overall Rod Length: 34-9/32" (870.7mm)
Rod Diameter: 3/16" (4.8mm) stainless steel
End Bolt: 3/8" (9.5mm) square x 2-1/2" (63.5mm) aluminum with bevel
Lock Body End: 1/4-20 threaded, 1-3/8" (34.9mm)
Concealed rod design for multipoint door systems
Compatible with all Marvin multipoint door heights
Sold individually

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

Marvin Bottom Locking Rod – 34-9/32" (05700170)

This Marvin bottom locking rod is designed for concealed rod multipoint lock systems. It works with all Marvin multipoint door heights and provides secure bottom engagement for your door's locking mechanism.

The rod features a stainless steel construction with a 3/16 inch (4.8mm) diameter for durability and corrosion resistance. The aluminum end bolt measures 3/8 inch (9.5mm) square by 2-1/2 inches (63.5mm) and includes a beveled edge for smooth operation. The lock body end has 1/4-20 threading with a 1-3/8 inch (34.9mm) length for secure attachment to the multipoint lock body.

Technical Information

Overall Rod Length: 34-9/32 inches (870.7mm)
Rod Diameter: 3/16 inches (4.8mm)
Rod Material: Stainless Steel
End Bolt: 3/8 inches (9.5mm) square x 2-1/2 inches (63.5mm) aluminum with bevel
Lock Body End: 1/4-20 threaded, 1-3/8 inches (34.9mm)

Related Parts

05700130 - Marvin Multipoint Lock Body (4991637)

Priced and sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I know if this is the correct bottom locking rod for my door?

Measure your existing rod length and compare it to the 34-9/32 inch overall length. This rod works with all Marvin multipoint door heights.

Can the locking rod handing be reversed?

Yes, Marvin multipoint locks can be rehanded. Insert a small screwdriver into the designated hole, push forward, twist, and release to reverse the latch direction.
