INTERLOCK Lever Compression Handleset – 30mm Backset, 85mm PZ, Satin White

INTERLOCK Lever Compression Handleset – 30mm Backset, 85mm PZ, Satin White

SKU: P84650-SW

$0.00 - $0.00
$0.00
$0.00 - $0.00
$0.00

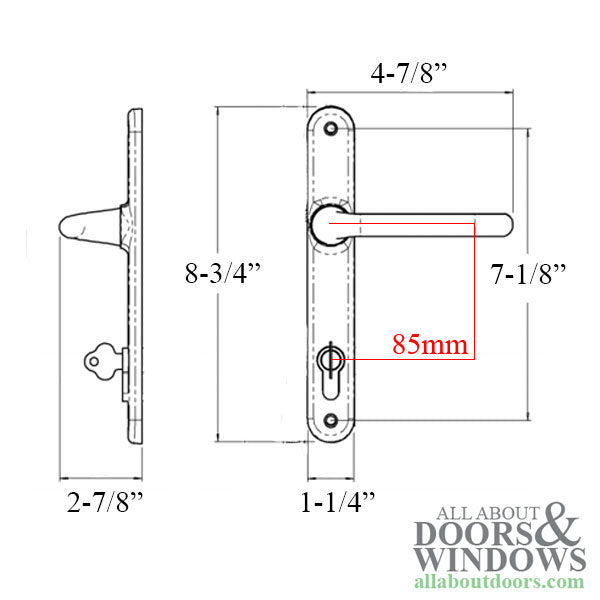

  • PZ (Handle to Cylinder): 3-5/16" (85mm)
  • Backset: 1-3/16" (30mm)
  • Faceplate: 24 x 210mm
  • Spindle: 5/16" x 3-5/8" (8 x 92mm)
  • Cylinder Length: 2-11/16" (68mm)
  • Cylinder Keyway: Kwikset KW1
  • Cylinder Finish: Satin Chrome

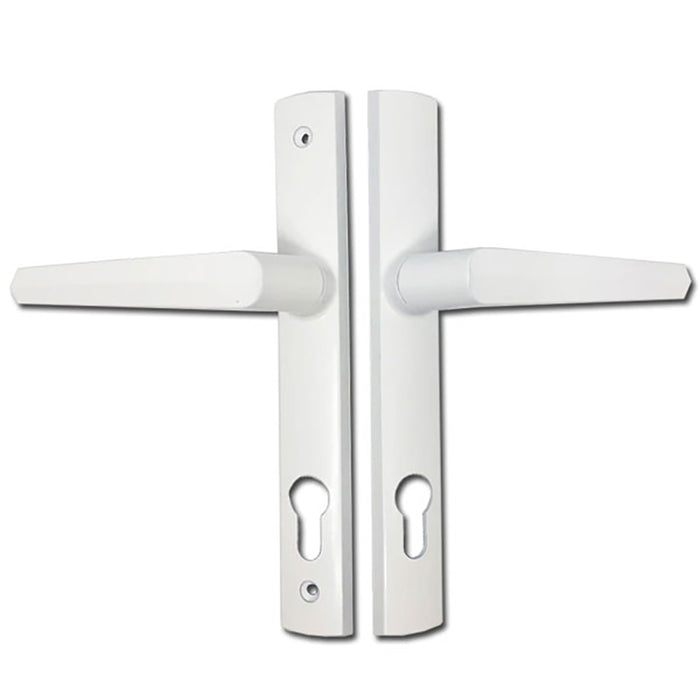

  • Handle Color: Satin White
  • Handing: Non-handed, reversible for left or right hand doors
  • Single-motion handle activates deadbolt and throws upper and lower rods
  • Compatible with INTERLOCK lever compression lock systems

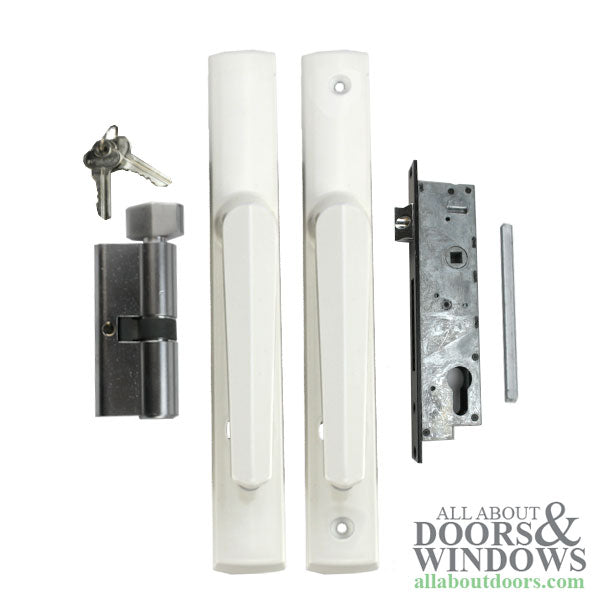

  • Kit Includes: Mortise lock, handleset with inside and outside plates and levers, keyed cylinder with 2 keys, screw pack, and spindle
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

INTERLOCK Lever Compression Handleset – 30/85 (P84650)

This complete handleset kit is designed for aluminum and vinyl swing door applications using the INTERLOCK lever compression lock system. The single-motion lifting handle engages the deadbolt and throws both upper and lower locking rods simultaneously, providing secure multi-point locking with one simple action.

The non-handed design allows installation on either left or right hand doors without modification, making it a versatile solution for various door configurations. The zinc alloy construction with nickel plating ensures durability, while the satin white finish with satin chrome cylinder creates a clean, modern appearance.

Technical Information

  • PZ (Handle to Cylinder): 3-5/16 inches (85mm)
  • Backset: 1-3/16 inches (30mm)
  • Faceplate Dimensions: 24 x 210mm
  • Spindle: 5/16 x 3-5/8 inches (8 x 92mm)
  • Cylinder Length: 2-11/16 inches (68mm)
  • Cylinder Keyway: Kwikset KW1
  • Cylinder Finish: Satin Chrome
  • Handle Color: Satin White
  • Handing: Non-handed, reversible
  • Material: Zinc alloy with nickel plating

Notes

  • Compatible with INTERLOCK lever compression lock systems
  • Suitable for aluminum and vinyl swing door applications
  • Available in powdercoat and architectural finishes

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can this handleset be installed on a left-hand or right-hand door?

Yes, this handleset is non-handed and reversible, so it can be installed on either left or right hand doors without modification.

What cylinder keyway does this handleset use?

This handleset uses a Kwikset KW1 keyway cylinder, which is a common residential keyway that can be rekeyed by most locksmiths.

What is included in this handleset kit?

The kit includes a mortise lock with faceplate, complete handleset with inside and outside plates and levers, a keyed cylinder with 2 keys, screw pack, and spindle.
