Interlock Assa Abloy Compression Lock – 50mm Backset, 92mm PZ

Interlock Assa Abloy Compression Lock – 50mm Backset, 92mm PZ

SKU: DL01-6540

$56.25 - $56.25
$56.25
$56.25 - $56.25
$56.25
  • PZ (Handle to Cylinder): 92mm (3-5/8")
  • Backset: 2" (50mm)
  • Faceplate Width: 15/16" (24mm)
  • Faceplate Length: 8-7/16" (214mm)
  • Deadbolt Throw: 3/4" (20mm)
  • Spindle Hub Diameter: 5/16" (8mm)
  • Lock Body Depth: 2-9/16" (65mm)
  • Lock Body Length: 7-1/4" (184mm)
  • Compression lock with deadlocking spring latch and deadbolt
  • Becomes a 4-point lock when rods are connected and engaged
  • Verify PZ measurement before ordering – similar locks available in 85mm or 92mm
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.
*We have a fully-staffed customer support team happy to help!

Interlock Compression Lock – 50/92 (DL01-6540)

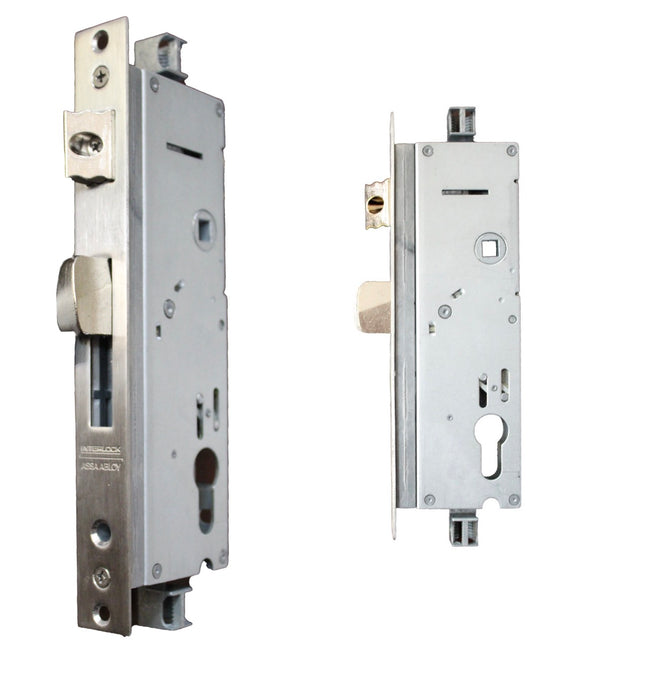

The Interlock Assa Abloy Optimum Compression Lock (model DL01-6450) is a multipoint lock body featuring both a deadlocking spring latch and a deadbolt for enhanced security. When locking rods are connected and engaged, this lock functions as a 4-point locking system.

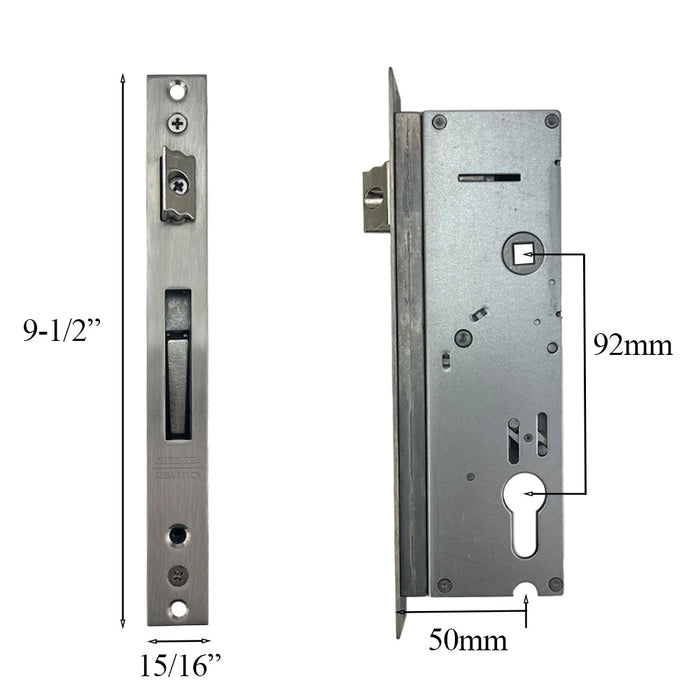

This lock has a 50mm (2 inches) backset and a 92mm (3-5/8 inches) PZ measurement (handle center to cylinder center). The faceplate measures 15/16 inches (24mm) wide by 8-7/16 inches (214mm) long. The deadbolt throw is 3/4 inches (20mm).

Technical Information

  • Backset: 2 inches (50mm)
  • PZ (Handle to Cylinder): 92mm (3-5/8 inches)
  • Deadbolt Throw: 3/4 inches (20mm)
  • Faceplate Width: 15/16 inches (24mm)
  • Faceplate Length: 8-7/16 inches (214mm)
  • Spindle Hub Diameter: 5/16 inches (8mm)
  • Lock Body Depth: 2-9/16 inches (65mm)
  • Lock Body Length: 7-1/4 inches (184mm)
  • Model: DL01-6450

Notes

  • Similar locks are available with different PZ measurements: 85mm (3-5/16 inches) or 92mm (3-5/8 inches)
  • Verify your PZ measurement before purchasing to ensure correct fit

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What does PZ mean on a multipoint lock?

PZ refers to the distance from the center of the handle spindle to the center of the cylinder (key hole). This lock has a 92mm PZ measurement.

How do I know if I need the 85mm or 92mm PZ version?

Measure from the center of your existing handle hole to the center of your cylinder hole. If it measures approximately 3-5/8 inches (92mm), this lock will fit. If it measures 3-5/16 inches (85mm), you need the 85mm version.

What makes this a 4-point lock?

When locking rods are connected to the top and bottom of this lock body and engaged, the system locks at four points: the spring latch, the deadbolt, and the two rod locking points.
