Interlock Lever Compression Swing Deadbolt Lock – 30mm Backset, 85mm PZ

Interlock Lever Compression Swing Deadbolt Lock – 30mm Backset, 85mm PZ

SKU: DL01-6007

$129.54 - $129.54
$129.54
$129.54 - $129.54
$129.54
  • PZ (Handle to Cylinder): 3-5/16" (85mm)
  • Backset: 1-3/16" (30mm)
  • Faceplate: 15/16" (24mm) wide x 8-1/4" (210mm) long
  • Deadbolt Throw: 15/16" (24mm)
  • Rod Throw: 1" (25.4mm)
  • Spindle Hub: 5/16" (8mm)
  • Lock Type: Lever compression mortise lock case with swing deadbolt
  • Operation: Lift handle to swing deadbolt up while shootbolts extend 1", spring latch also becomes a locking point
  • Application: Aluminum and PVC doors
  • Available Backsets: 30mm, 35mm, and 40mm
  • Available Deadbolt Lengths: 13mm, 16mm, and 24mm
  • Handing: Reversible by rotating latch
  • Markings: Stamped "Interlock Group, Made in New Zealand"
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.
*We have a fully-staffed customer support team happy to help!

Interlock Lever Compression Lock – 30/85 (DL01-6007)

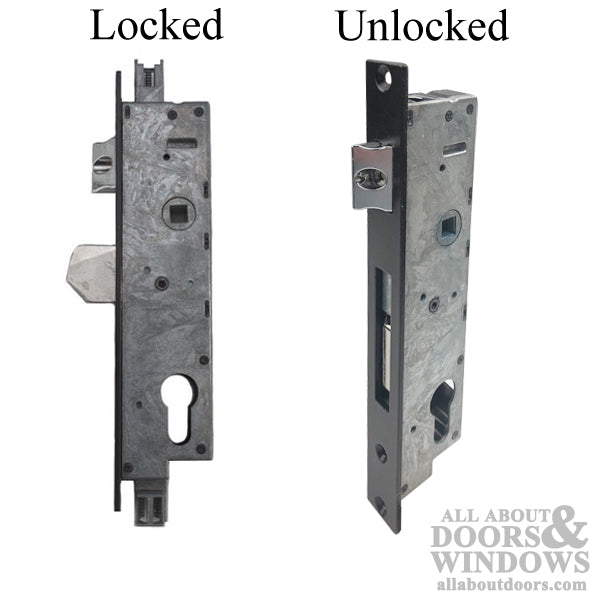

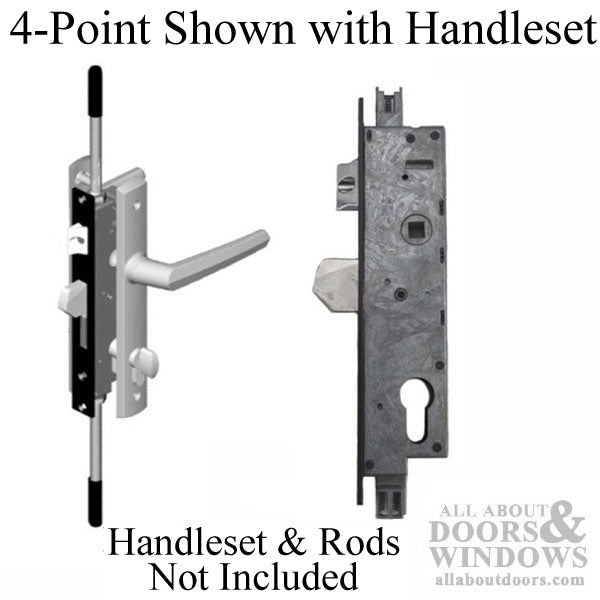

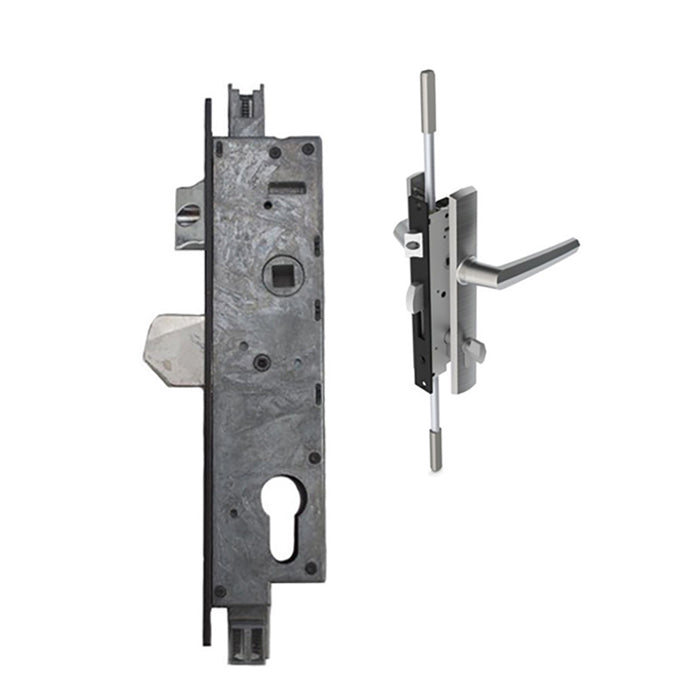

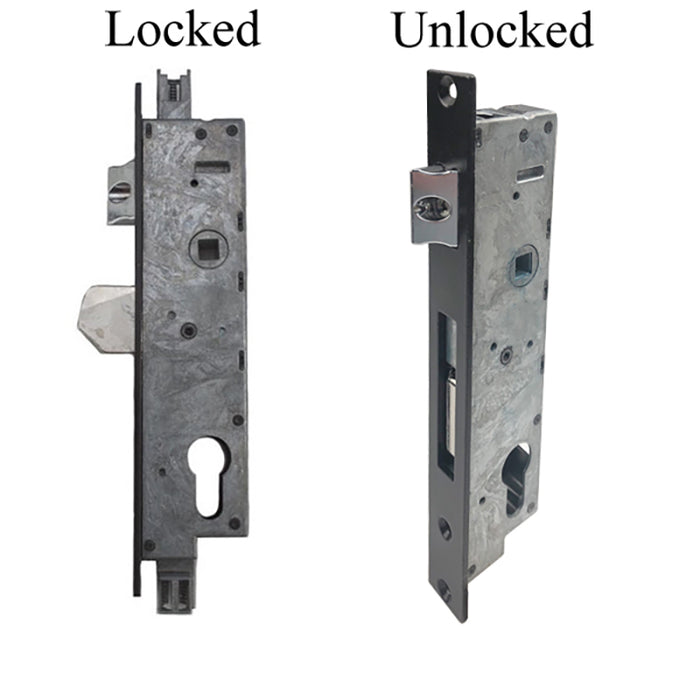

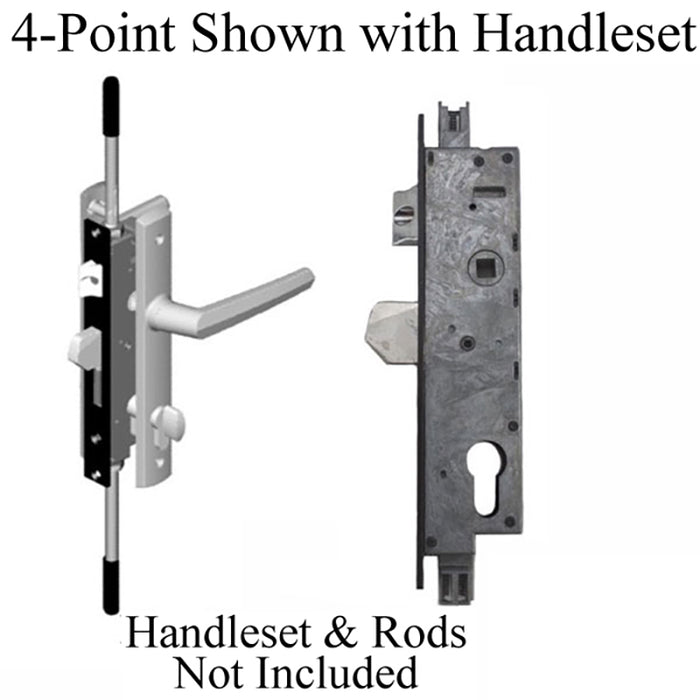

This Interlock lever compression mortise lock case features a handle-activated swing deadbolt and shootbolt system designed for enhanced security and superior weather performance. When the handle is lifted, the deadbolt swings upward while the shootbolts extend 1 inch, and the spring latch also engages as an additional locking point.

The lock case offers versatility with multiple configuration options. Choose from three backset sizes (30mm, 35mm, or 40mm), three deadbolt lengths (13mm, 16mm, or 24mm), and two rod throw options (5/8 inch or 1 inch). This flexibility allows the lock to be adapted for various door applications.

Built for aluminum and PVC doors, this lock provides high corrosion resistance for long-lasting performance. The handing can be easily reversed by removing the latch screw, rotating the latch, and reinstalling the screw.

Stamped With

  • Interlock Group
  • Made in New Zealand

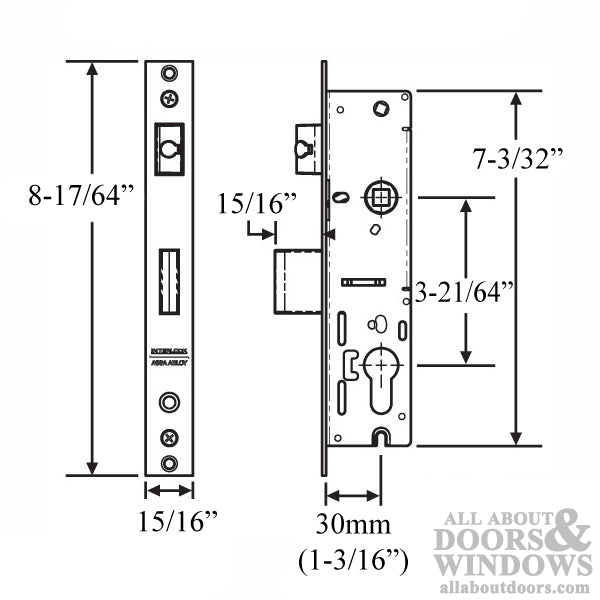

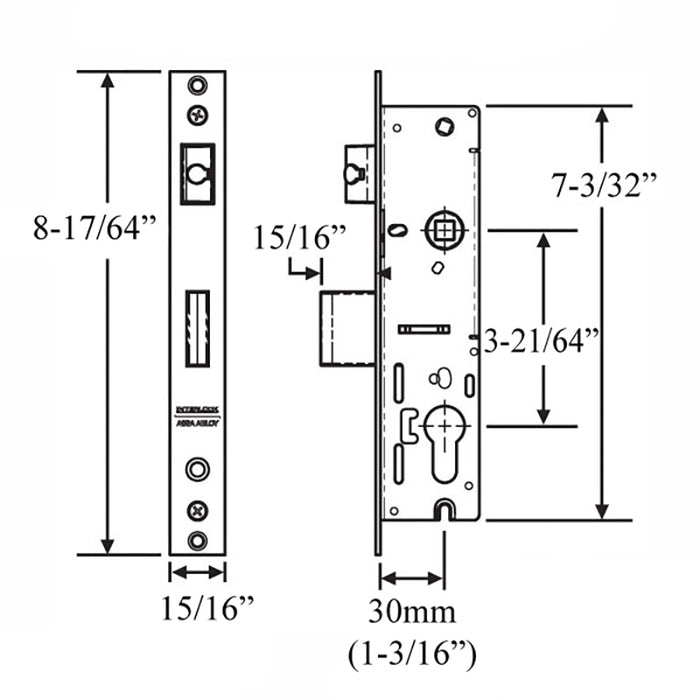

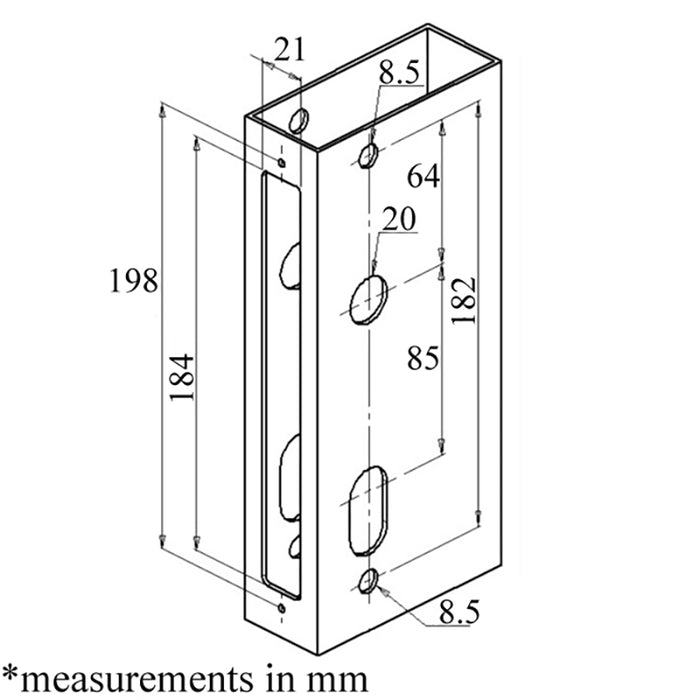

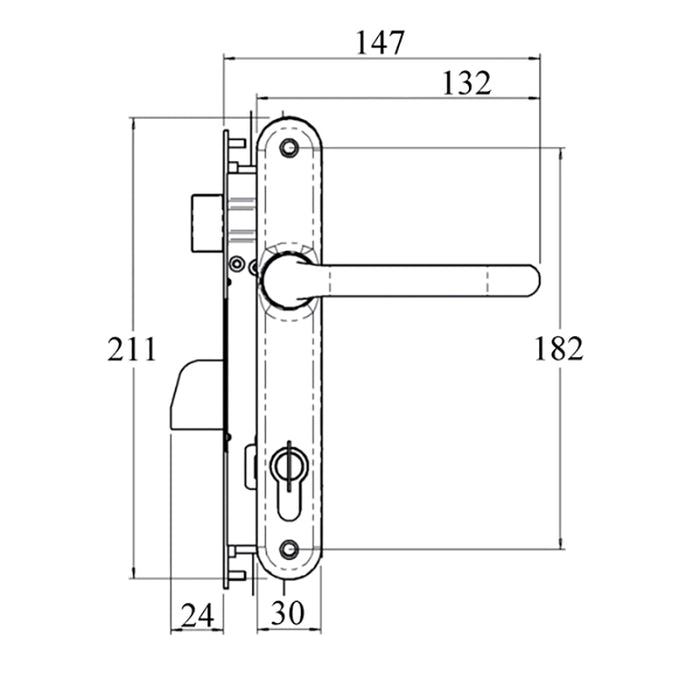

Technical Information

  • Lock Type: Lever compression mortise lock case
  • PZ (Handle to Cylinder): 3-5/16 inches (85mm)
  • Backset: 1-3/16 inches (30mm)
  • Faceplate Width: 15/16 inch (24mm)
  • Faceplate Length: 8-1/4 inches (210mm)
  • Deadbolt Throw: 15/16 inch (24mm)
  • Rod Throw: 1 inch (25.4mm)
  • Spindle Hub: 5/16 inch (8mm)

Notes

  • Available backsets: 30mm (1.2 inches), 35mm (1.4 inches), and 40mm (1.6 inches)
  • Available deadbolt lengths: 13mm (1/2 inch), 16mm (5/8 inch), and 24mm (15/16 inch)
  • Available rod throws: 16mm (5/8 inch) or 25.4mm (1 inch)
  • To remove lock with shootbolt rods: Remove guides at top and bottom of door, unscrew rods, then remove lock case

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I change the handing on this lock?

Remove the screw in the latch, rotate the latch to the desired orientation, then reinstall the screw.

How does the lever compression lock operate?

Lift the handle and the deadbolt swings up while the shootbolts extend 1 inch. The spring latch also becomes an additional locking point for enhanced security.

What door types is this lock designed for?

This lock is designed for aluminum and PVC doors and features high corrosion resistance for long-lasting performance.
