Interlock 4-Point Lever Compression Lock – 35mm Backset, 85mm PZ

Interlock 4-Point Lever Compression Lock – 35mm Backset, 85mm PZ

SKU: DL01-6000EF-35

$235.66 - $235.66
$235.66
$235.66 - $235.66
$235.66
  • Backset: 1-3/8" (35mm)
  • PZ (Handle to Cylinder): 3-5/16" (85mm)
  • Faceplate Width: 29/32" (23mm)
  • Faceplate Length: 11-1/4" (286mm)
  • Faceplate Screw Holes: 10-5/8" (270mm)
  • Deadbolt Projection: 3/4" (18.8mm)
  • Rod Connection Backset: 13/16" (21mm)
  • Can be used as a single point lock or 4-point lock with concealed rods
  • 24mm interlock lever compression lock
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.
*We have a fully-staffed customer support team happy to help!

Interlock 4-Point Lever Compression Lock – 35/85 (DL01-6000EF)

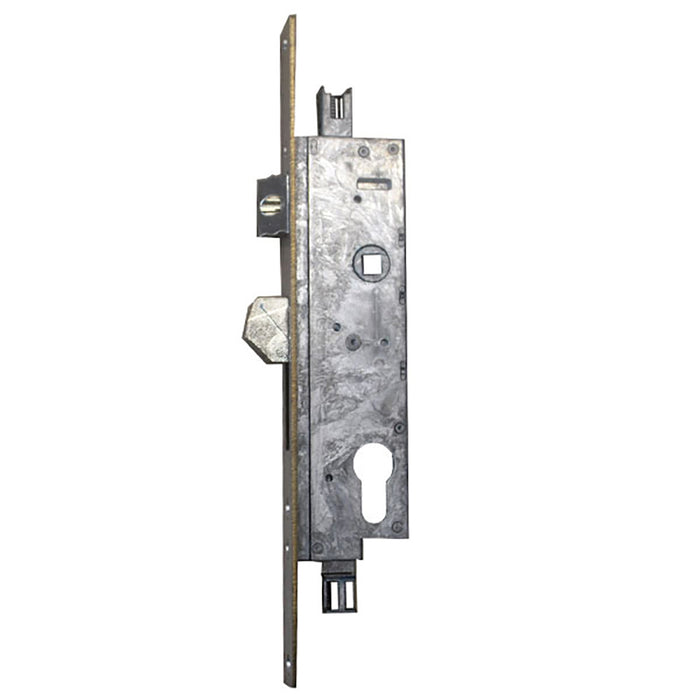

This 24mm Interlock lever compression lock offers versatile installation options, functioning as either a single point lock or a 4-point lock when paired with concealed rods. The lock features a 35mm backset and 85mm PZ measurement, making it suitable for doors requiring precise handle-to-cylinder spacing.

The extended faceplate measures 11-1/4 inches (286mm) in length with a width of 29/32 inches (23mm), providing a secure fit in the door edge. Faceplate screw holes are spaced at 10-5/8 inches (270mm) apart. The deadbolt projects 3/4 inches (18.8mm) for reliable security, and the rod connection backset is positioned at 13/16 inches (21mm).

Technical Information

  • Backset: 1-3/8 inches (35mm)
  • PZ (Handle to Cylinder): 3-5/16 inches (85mm)
  • Faceplate Width: 29/32 inches (23mm)
  • Faceplate Length: 11-1/4 inches (286mm)
  • Faceplate Screw Holes: 10-5/8 inches (270mm)
  • Deadbolt Projection: 3/4 inches (18.8mm)
  • Rod Connection Backset: 13/16 inches (21mm)
  • Lock Type: Lever Compression Lock
  • Configuration: Single point or 4-point with concealed rods

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can this lock be used as a single point lock?

Yes, this lever compression lock can be configured as either a single point lock or a 4-point lock when used with concealed rods.

What is the PZ measurement on this lock?

The PZ (handle center to cylinder center) measurement is 3-5/16 inches (85mm).

How far does the deadbolt extend when locked?

The deadbolt projects 3/4 inches (18.8mm) from the faceplate when fully extended.
