HOPPE Swing Hook Multipoint Locks — Euro-Style Multipoint Hardware

HOPPE HLS9000 Swing Hook Multipoint Lock Components and Assemblies

HOPPE swing hook multipoint locks are engineered for doors requiring a streamlined appearance without sacrificing security. Unlike traditional hook or tongue systems, swing hooks pivot into the strike plate when engaged and retract flush with the door edge when released—eliminating the visible hardware profile that other lock types leave behind. MPLocks carries both bottom gear assemblies and top extensions in the HLS9000 series, allowing you to build or replace a complete swing hook system matched to your specific door height and backset requirements.

Backset Options for Proper Door Fit

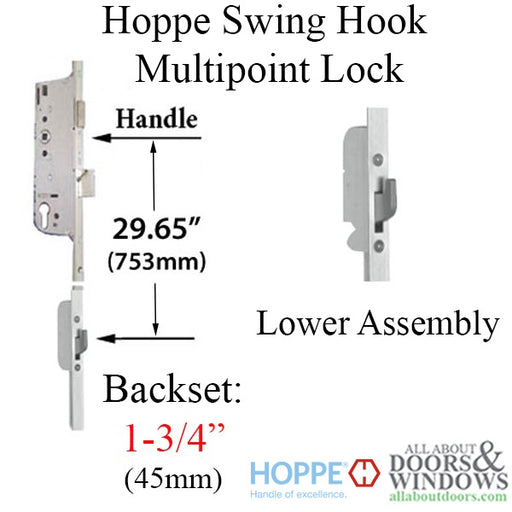

Selecting the correct backset is essential for swing hook bottom gear compatibility. This collection includes options in 35mm, 45mm, 60mm, and 70mm backsets, all with standard 92mm PZ spacing and 36-inch handle height configurations. The bottom gear serves as the foundation of your multipoint system, housing the deadbolt and primary swing hook at 29.65 inches below the handle center. Matching your existing backset ensures the lock cylinder, handle, and strike plate align correctly without door modification.

Top Extensions for Various Door Heights

HOPPE swing hook top extensions are available in single and dual hook configurations to accommodate different door heights. Single hook extensions work well for standard 78 to 80-inch doors, while dual hook versions provide additional security points for taller entries up to 127 inches. Each extension features a 16mm faceplate width and includes precise hook positioning measurements, making it straightforward to select the right component for your installation or replacement project.

• HOPPE HLS9000 Euro-Style Multipoint Lock Systems
• HOPPE HLS9000 Strike Plates for Multipoint Locks
• Complete HOPPE Multipoint Lock Hardware Collection

Measuring for Swing Hook Replacement Parts

When replacing swing hook components, measure your existing bottom gear backset from the faceplate edge to the center of the cylinder hole, and confirm the PZ measurement (typically 92mm for HOPPE systems). For top extensions, note your total door height and current handle height to determine which extension length provides proper hook engagement. Most configurations in this collection assume a 36-inch handle height, though specialty options like the 41.11-inch handle height version are available for non-standard installations.

Need help confirming the right swing hook components for your door? Our team specializes in HOPPE multipoint lock systems and can walk you through the selection process. Call (816) 221-6543 to speak with an expert, or use our free Multipoint Lock Identifier to submit your lock details for a personalized replacement recommendation.
