3-Point Multipoint Lock Kit with Rollers – 45mm Backset, 92mm PZ

3-Point Multipoint Lock Kit with Rollers – 45mm Backset, 92mm PZ

SKU: 4990917-KIT

$265.00 - $265.00
$265.00
$265.00 - $265.00
$265.00
  • Backset: 45mm
  • PZ: 92mm
  • Faceplate Width: 16mm
  • Bottom Roller Position: 27-3/8" (695.3mm) from handle
  • Top Roller Position: 32-1/2" (825.5mm) from handle
  • Maximum Door Height: 93" (2362.2mm)
  • 3-part kit includes bottom gear with lockbox, top extension, and screws
  • Replaces Roto 3-point lock (499090099) and Winkhaus 3-point lock (499110099)
  • Sold as a complete kit
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

3-Point Multipoint Lock Kit with Rollers (4990917-KIT)

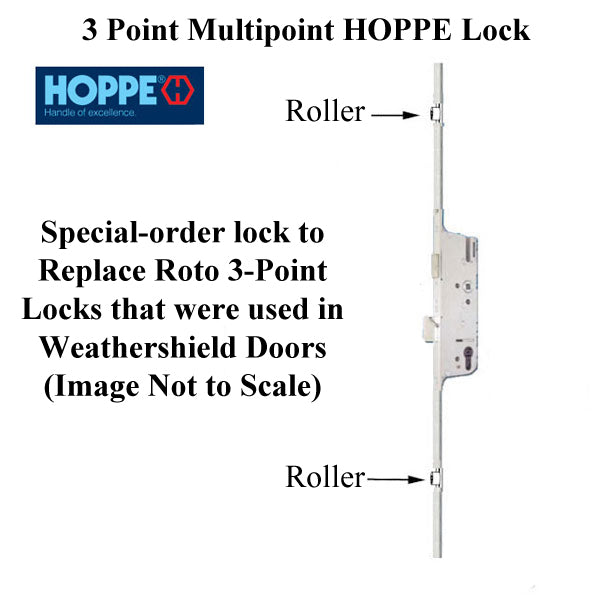

This 3-point multipoint lock kit with rollers is designed as a direct replacement for older Roto and Winkhaus 3-point locks used in hinged patio doors. The kit provides everything needed to replace a worn or damaged multipoint lock system in compatible door applications.

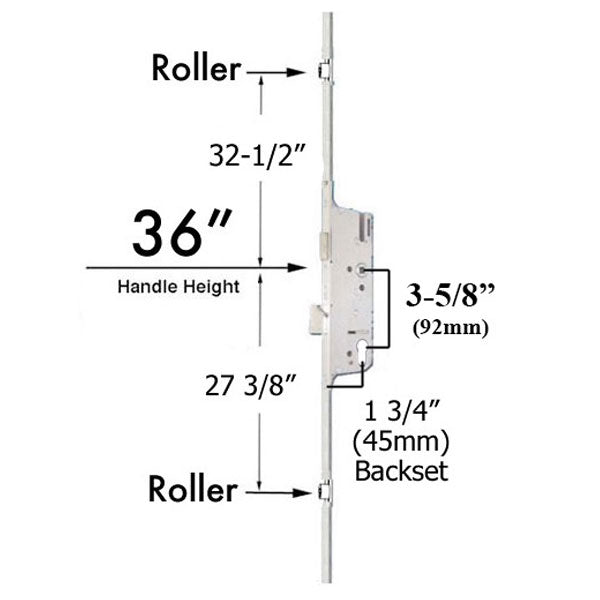

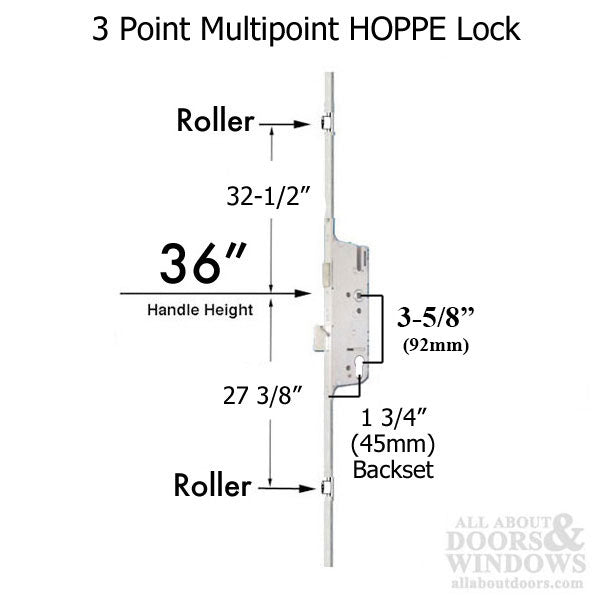

This lock features a 45mm backset and 92mm PZ (handle center to keyhole center), with a 16mm wide faceplate. The bottom roller is positioned 27-3/8 inches from the handle, and the top roller is positioned 32-1/2 inches from the handle. This configuration fits door panels up to 93 inches tall.

Technical Information

  • Backset: 45mm
  • PZ: 92mm
  • Faceplate Width: 16mm
  • Bottom Roller to Handle: 27-3/8 inches (695.3mm)
  • Top Roller to Handle: 32-1/2 inches (825.5mm)
  • Maximum Door Panel Height: 93 inches (2362.2mm)

Kit Contents

  • Bottom gear and lockbox
  • Top extension
  • Screws

Notes

  • Existing stock is limited; these are special order and may take longer to ship

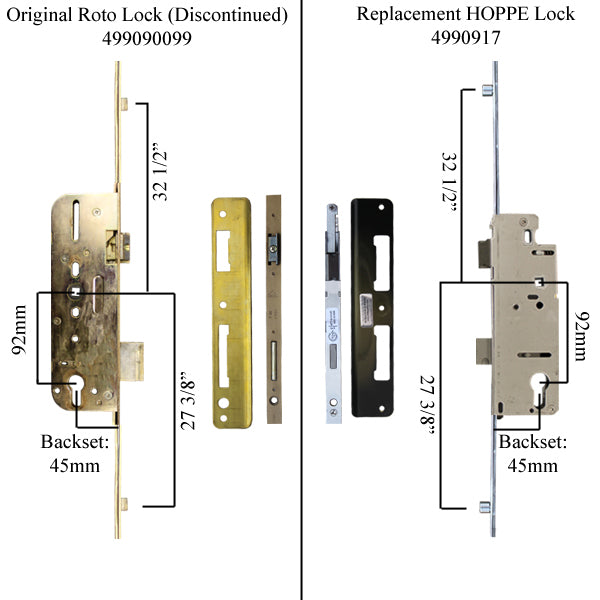

Replaces / Replaced by

  • Roto 3-point lock (part 499090099)
  • Winkhaus 3-point lock (part 499110099)

Compatibility

  • Weathershield hinged patio doors made prior to March 2002
  • ProShield hinged patio doors made prior to August 2004
  • Visions hinged patio doors made prior to February 2004

Additional Resources

Sold as a complete kit.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What doors is this multipoint lock compatible with?

This lock fits Weathershield hinged patio doors made before March 2002, ProShield hinged patio doors made before August 2004, and Visions hinged patio doors made before February 2004.

What is included in this multipoint lock kit?

The kit includes three parts: the bottom gear with lockbox, the top extension, and mounting screws.

Can I change the handing on this lock?

Yes, Hoppe multipoint locks can be rehanded. Refer to the installation guides for instructions on changing the handing direction.
