Hoppe HLS7 Multipoint Lower Extension with Tongue and Shootbolt – 45mm Backset, 92mm PZ, 36" Handle Height, Left Hand

Hoppe HLS7 Multipoint Lower Extension with Tongue and Shootbolt – 45mm Backset, 92mm PZ, 36" Handle Height, Left Hand

SKU: 2666480

$317.69 - $317.69
$317.69
$317.69 - $317.69
$317.69
  • Series: Hoppe HLS7 (one motion retracts deadbolt with turn of handle)
  • Type: Active Bottom Gear with Tongue and Shootbolt
  • Handing: Left Hand

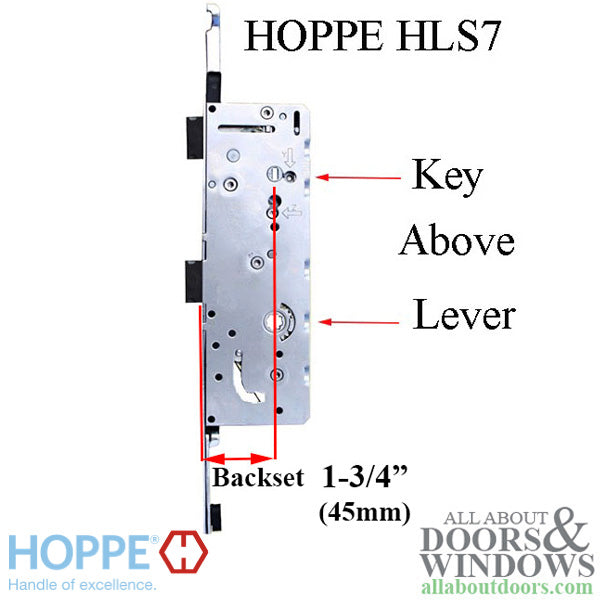

  • Backset: 1-3/4" (45mm)
  • PZ: 92mm
  • Faceplate Width: 16mm
  • Deadbolt Throw: 1" (25.4mm)
  • Handle Height: 36" (914mm)
  • Bottom Tongue Position: 24.41" (620mm)
  • Number of Screws: 5
  • This is the bottom half of the multipoint lock system; top extension sold separately based on door height
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.
*We have a fully-staffed customer support team happy to help!

Hoppe HLS7 Active Bottom Gear – 45/92, Left Hand (2666480)

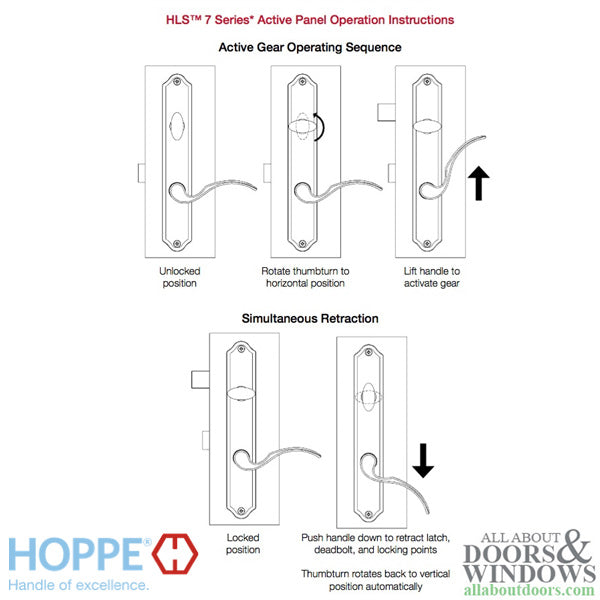

This Hoppe HLS Series 7 active bottom gear is designed for multipoint lock systems and features an integrated tongue with shootbolt. The HLS7 series operates with one motion, retracting the deadbolt with a turn of the handle for smooth, efficient door operation.

This left-hand component serves as the bottom half of a complete multipoint lock system. It features a 1-3/4 inch (45mm) backset, 92mm PZ spacing, and a 16mm faceplate width. The deadbolt throw measures 1 inch (25.4mm), providing secure engagement with the door frame.

The handle height is positioned at 36 inches (914mm) from the bottom of the gear, with the bottom tongue position at 24.41 inches (620mm). Installation requires 5 screws.

Technical Information

  • Series: HLS7
  • Backset: 1-3/4 inches (45mm)
  • PZ: 92mm
  • Faceplate Width: 16mm
  • Deadbolt Throw: 1 inch (25.4mm)
  • Handle Height: 36 inches (914mm)
  • Bottom Tongue Position: 24.41 inches (620mm)
  • Number of Screws: 5
  • Handing: Left Hand

Notes

  • This is the bottom half of the multipoint lock system.
  • Top extension is determined by door height and tongue position and must be purchased separately.
  • Maximum cutoff information not available.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the HLS7 series and how does it operate?

The Hoppe HLS7 series is a multipoint lock system that operates with one motion, retracting the deadbolt with a turn of the handle for convenient door operation.

Do I need additional parts to complete this multipoint lock system?

Yes, this is only the bottom half of the multipoint lock system. You will need to purchase a top extension separately, which is determined by your door height and tongue position.

How do I determine if I need a left-hand or right-hand version?

Stand on the exterior side of the door. If the hinges are on the left, you have a left-hand door and need this left-hand gear. If hinges are on the right, you need a right-hand version.
