Hoppe HLS7 Tongue Active Gear – 45mm Backset, 92mm PZ, 29.65" Tongue, Left Hand

SKU: 2661110

$246.51 - $246.51

$246.51

$246.51 - $246.51

$246.51

PZ: 92mm

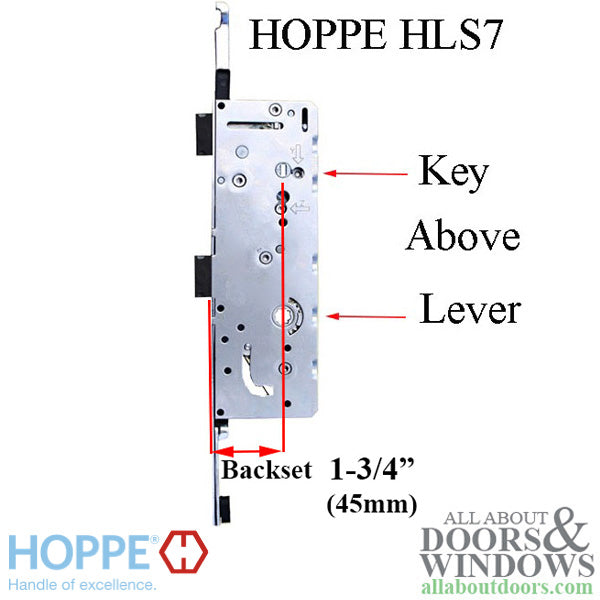

Backset: 1-3/4" (45mm)
Handle Height: 36" (914.4mm)
Tongue Position: 29.65" (753.1mm)
Handing: Left Hand (can be changed if needed)
Spindle Hub Diameter: 5/16" (8mm)
Series: HLS 7 (one motion retracts deadbolt with turn of handle)
Panic release function on inside – push down lever to retract deadbolt and latch
Uses 1/2 spindles attached to handleset
Bottom half of multipoint lock system – top extension sold separately based on door height
Sold individually

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe HLS7 Tongue Active Gear – 45/92, LH (2661110)

This Hoppe HLS7 Tongue Active Gear is the bottom half of a multipoint lock system designed for left-hand doors. The HLS 7 series features one-motion operation where turning the handle retracts the deadbolt, providing convenient egress.

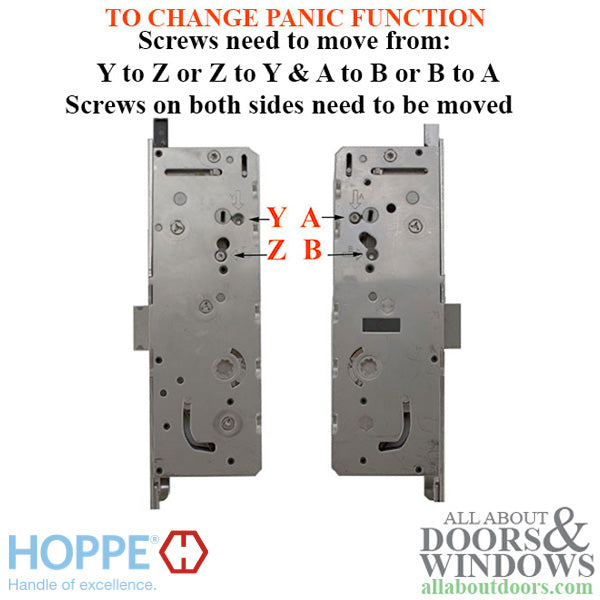

This active gear includes a panic release function on the interior side. To exit a locked door from inside, simply push down on the lever and both the deadbolt and latch will retract simultaneously. The thumbturn automatically rotates back to the vertical position.

Technical Information

Series: Hoppe HLS 7
Version: Tongue
Backset: 1-3/4 inches (45mm)
PZ: 92mm
Handle Height: 36 inches (914.4mm)
Tongue Position: 29.65 inches (753.1mm)
Handing: Left Hand
Spindle Hub Diameter: 5/16 inches (8mm)

Notes

All HLS 7 gears have the same backsets and are handed for left or right hand doors
Handing can be changed if needed
Spindle hub has a blocker and uses 1/2 spindles attached to handleset
This is the bottom half of the multipoint lock system – top extension is determined by door height and tongue position
The half-moon slot next to the handle hub must have the nub in the 3 o'clock or 9 o'clock position (depending on the side of the gear box). The handleset with spring assist naturally moves this to the proper position when installed

Operation of Lock

To Lock Door: Turn thumbturn to horizontal position or key to locked position, then lift handle and deadbolt will extend (outside is locked).

To Unlock from Inside: Depress lever – latch and deadbolt will retract. Thumbturn rotates back to vertical position automatically.

To Unlock from Outside: Insert key and turn, then depress lever to open door.

Sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can I change the handing on this lock?

Yes, the handing can be changed if needed. All HLS 7 gears are handed for left or right hand doors but can be converted.

What is the HLS 7 series?

The Hoppe HLS 7 series features one-motion operation where turning the handle retracts the deadbolt, and includes a panic release function for easy egress from inside.

Do I need additional parts with this gear?

Yes, this is the bottom half of the multipoint lock system. You will need a top extension, which is determined by your door height and tongue position.
