GU Inactive Multipoint Shootbolt Assembly – 50mm Backset, 92mm PZ, Adjustable Handle Height

SKU: 6-UI638-50-0-FG

$247.25 - $247.25

$247.25

$247.25 - $247.25

$247.25

PZ (Handle to Cylinder Spacing): 3-5/8" (92mm)
Backset: 2" (50mm)
Faceplate Width: 5/8" (16mm)
Handle Height: Adjustable, standard is 35" (889mm)
Overall Length: 72.047" (1830mm)
Cylinder Type: American with flat tailpiece
Spindle Size: 5/16" (8mm)
Function: 2-point shootbolt lock for inactive/passive door
Faceplate Finish: Silver Ferguard
Series: Europa
Key Position: Below handle
Main assembly only – does not include top or bottom shootbolt extensions
Requires astragal configuration with active door deadbolt

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

GU Inactive Multipoint Shootbolt – 50/92 (6-UI638-50-0-FG)

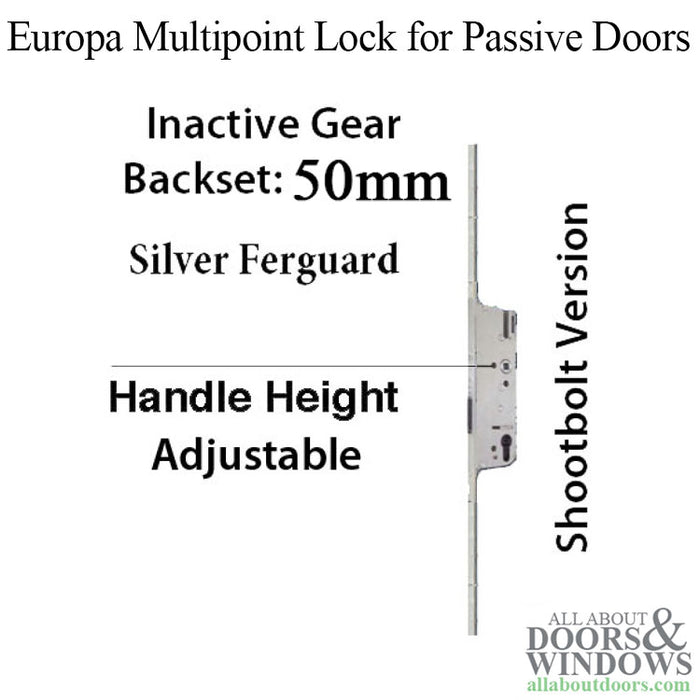

This GU Europa Series inactive multipoint lock shootbolt assembly is designed for passive doors in double-door configurations. The lock features an adjustable handle height with a standard setting of 35 inches (889mm), allowing for flexible installation to match your existing door setup.

With a 2-inch (50mm) backset and 3-5/8 inch (92mm) PZ spacing, this 2-point shootbolt lock accepts an American cylinder with a flat tailpiece. The 5/8-inch (16mm) wide faceplate has a silver Ferguard finish for durability and corrosion resistance. The overall length measures 72.047 inches (1830mm).

Technical Information

Series: Europa
Backset: 2 inches (50mm)
PZ (Handle to Cylinder Spacing): 3-5/8 inches (92mm)
Faceplate Width: 5/8 inch (16mm)
Handle Height: Adjustable, standard 35 inches (889mm)
Overall Length: 72.047 inches (1830mm)
Cylinder Type: American with flat tailpiece
Spindle Size: 5/16 inch (8mm)
Faceplate Finish: Silver Ferguard
Key Position: Below handle

Notes

Main assembly only – top and bottom shootbolt extensions sold separately

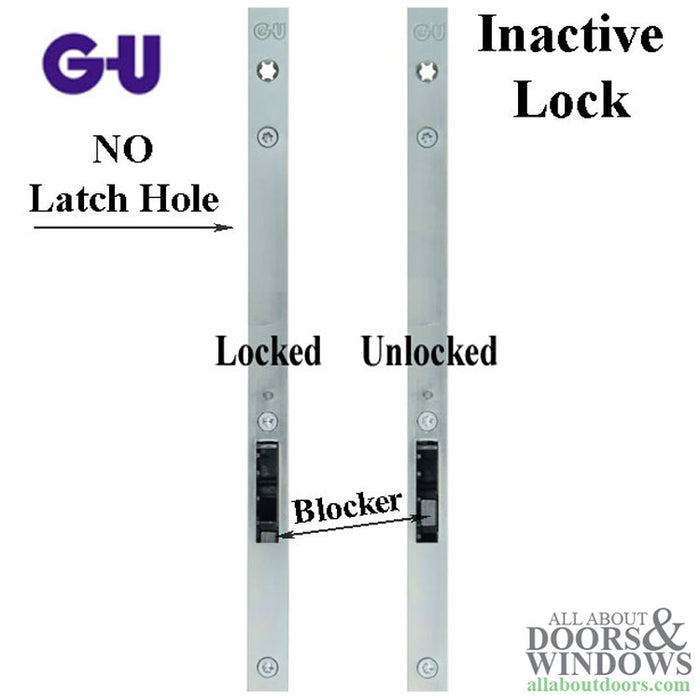

This lock does not have a receptacle for a spring latch and must be used with an astragal configuration
The active door deadbolt enters a receiving hole in the face of this inactive lock, but only when the inactive handles have been lifted and shootbolts engaged
When handles are turned up and shootbolts engaged, the mechanism in the receiver hole lifts up to allow the deadbolt to fit inside
Unless the passive door is shut and shootbolts engaged, the active door cannot be locked
For doors over 81-1/2 inches, use middle extension G-16790-05-0-1

Related Parts

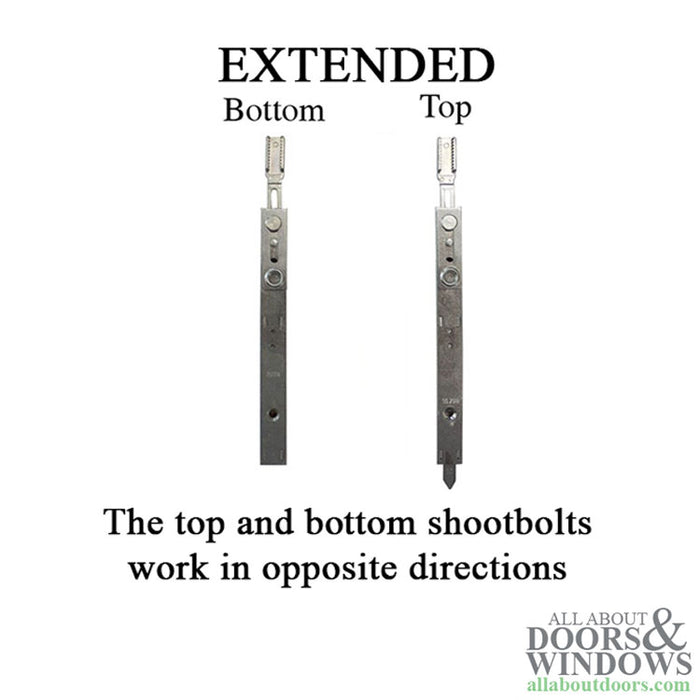

G-20416-00-0-1 – Top Shootbolt with Reversing Gear (Silver)
G-20415-00-0-1 – Bottom Shootbolt (Silver)
G-16790-05-0-1 – Middle Extension, 19.685 inches (500mm) for doors over 81-1/2 inches
9-34442-00-0-0 – Brass Sleeve / Shootbolt Socket Strike

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What additional parts do I need with this inactive shootbolt assembly?

This is the main assembly only. You will need to purchase the top shootbolt (G-20416-00-0-1) and bottom shootbolt (G-20415-00-0-1) separately. For doors over 81-1/2 inches, you may also need the middle extension (G-16790-05-0-1).

How does this inactive lock work with the active door?

When the passive door handles are lifted and shootbolts engaged, a mechanism in the receiver hole lifts up to accept the active door's deadbolt. The active door cannot be locked unless the passive door is closed with shootbolts engaged.

What cylinder type does this lock use?

This lock accepts an American cylinder with a flat tailpiece. The key position is below the handle.
