Atrium ESSVE Multipoint Lock – 45mm Backset, 92mm PZ, 68" Length

SKU: 499051799

Sold out

$0.00 - $0.00

$0.00

$0.00 - $0.00

$0.00

Backset: 1-3/4" (45mm)
PZ: 3-5/8" (92mm)
Faceplate Width: 25/32" (20mm)
Overall Length: 68" with radius ends
Bottom Hook Position: 26-3/4" (679.5mm)
Top Hook Position: 33-1/2" (850.9mm)
Lock Cylinder: European style
Status: Discontinued – see 4990615-KIT for replacement

This product has been discontinued and is no longer available

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

Atrium ESSVE Multipoint Lock (499051799)

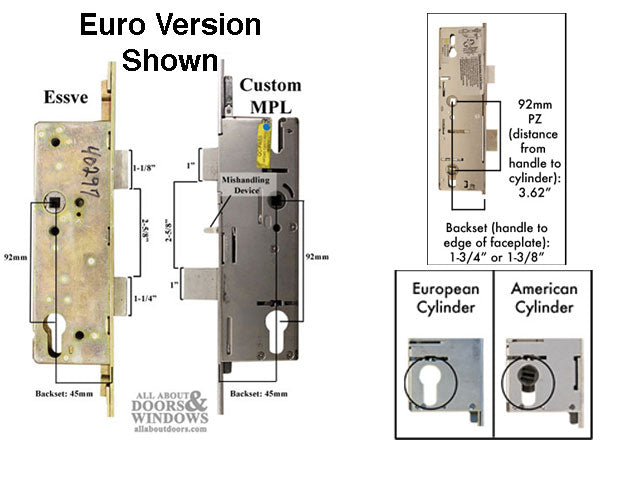

This is the original Atrium ESSVE multipoint lock featuring a 68-inch overall length with radius ends. The lock has a 1-3/4 inch (45mm) backset and 3-5/8 inch (92mm) PZ measurement, with a 25/32 inch (20mm) faceplate width. It uses a European style lock cylinder.

The bottom hook is positioned at 26-3/4 inches and the top hook at 33-1/2 inches from the bottom of the faceplate.

Technical Information

Overall Length: 68 inches with radius ends
Faceplate Width: 25/32 inch (20mm)
PZ (Handle Center to Cylinder Center): 3-5/8 inches (92mm)
Backset: 1-3/4 inches (45mm)
Bottom Hook Position: 26-3/4 inches
Top Hook Position: 33-1/2 inches
Lock Cylinder Type: European style

Notes

This lock has an anti-slam/mishandling latch that needs to be pushed in to operate
To lock: Lift the handle to extend deadbolt and other locking positions, then turn thumb-turn to secure
To unlock: Turn thumb-turn or key to unlocked position and push down on lever
Spring latch direction can be reversed by extending the deadbolt, pulling out the spring latch, and rotating accordingly

Replaces / Replaced by

Replaced by: 4990615-KIT – ESSVE replacement lock kit with square ends (crop-able to 68-1/8 inches)

Related Parts

395009 - Expressions 2 x 12 Series Hardware, Modern Square Top, Keyed
395007 - Expressions 2 x 12 Series Hardware, Traditional Arch Top, Keyed

When replacing with the 4990615-KIT, note that the replacement has square ends instead of radius ends and can be trimmed to fit your door panel height. The gear and hook lock boxes will fit into the existing mortised groove, but the hooks are positioned slightly differently (replacement bottom hook at 26 inches, top hook at 32-3/4 inches) and may require slightly enlarging the strike plate hole.

For Atrium doors with the Euro cylinder version, the original handleset trim will not work and new trim will be required. For Marvin and Pease doors with American version locks, the original trim with 6-3/8 inch screw hole spacing will work with minor modifications to the lock body cylinder hole.

Discontinued item.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the replacement for this discontinued Atrium ESSVE lock?

The replacement is the 4990615-KIT, which has square ends instead of radius ends and can be trimmed to fit door panels up to 68-1/8 inches.

Will my original handleset trim work with the replacement lock?

For Atrium doors with Euro cylinder trim, new trim is required. For Marvin and Pease doors with American version locks, the original trim may work with minor modifications to the cylinder hole.

How do I reverse the latch direction on this lock?

Extend the deadbolt first, then pull out the spring latch and rotate it to the desired direction.
