Hoppe 81" Multipoint Lock Replacement Kit for ESSVE – 45mm Backset, 92mm PZ, Euro Cylinder

SKU: 4990218-KIT

$314.42 - $314.42

$314.42

$314.42 - $314.42

$314.42

PZ: 92mm (3-5/8")
Backset: 45mm (1-3/4")
Faceplate Width: 20mm (25/32")
Overall Length: 81-1/8" (2060.6mm), trimmable to fit door panel height
Cylinder Type: Euro style
Bottom Tongue Position: 26.42" (671.1mm)
Top Tongue Position: 46.97" (1193mm)
Kit Includes: 20mm 45/92 lower gear with tongue, 20mm upper extension with tongue, stainless steel installation screws
Note: Replacement kit has square ends vs original radius ends; converts hook locking positions to tongues (may require minor strike modification)
Sold as a complete kit

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe 81" Multipoint Lock Kit for ESSVE – 45/92, Euro (4990218-KIT)

This Hoppe multipoint lock replacement kit is designed specifically for ESSVE multipoint lock systems. The kit provides a complete solution for replacing your existing 81-inch ESSVE lock with a modern Hoppe HLS9000 series multipoint system featuring Euro cylinder compatibility.

The replacement kit includes a 20mm lower gear with tongue positioned at 26.42 inches and an upper extension with tongue at 46.97 inches, along with stainless steel installation screws. The overall length of 81-1/8 inches can be trimmed to fit your specific door panel height requirements.

One important difference from the original ESSVE lock: this replacement kit features square ends rather than radius ends, and converts the original hook locking positions to tongue-style locking points. Minor modification of your existing strikes may be required to accommodate this change.

Technical Information

PZ (Handle to Cylinder Center): 92mm (3-5/8 inches)
Backset: 45mm (1-3/4 inches)
Faceplate Width: 20mm (25/32 inches)
Overall Length: 81-1/8 inches (2060.6mm), trimmable
Cylinder Type: Euro style
Bottom Tongue Position: 26.42 inches (671.1mm)
Top Tongue Position: 46.97 inches (1193mm)

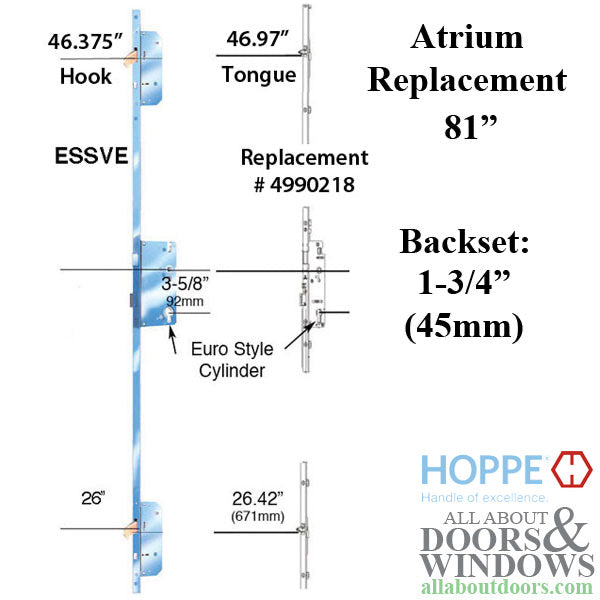

Original Bottom Hook Position: 26 inches
Original Top Hook Position: 46.97 inches

Notes

Replacement kit has square ends vs original radius ends
Converts hook locking positions to tongues; may require minor strike modification
Lock features anti-slam/mishandling latch that must be pushed in to operate
To lock: Lift handle to extend deadbolt and locking positions, turn thumb-turn to secure
To unlock: Turn thumb-turn or key to unlocked position, push down on lever
Latch handing can be reversed by extending the deadbolt, pulling out the spring latch, and rotating accordingly

Replaces / Replaced by

Original ESSVE multipoint lock systems with 81-inch overall length, 45mm backset, and 92mm PZ

Sold as a complete kit.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the difference between this replacement kit and my original ESSVE lock?

This replacement kit has square ends instead of radius ends and converts the original hook locking positions to tongue-style locking points. Minor modification of your existing strikes may be required.

Can I trim this lock to fit my door?

Yes, the 81-1/8 inch overall length can be trimmed to fit your specific door panel height requirements.

How do I reverse the latch handing on this lock?

Extend the deadbolt first, then pull out the spring latch and rotate it to the desired direction.
