Active Multipoint Lock with Concealed Shootbolts – 60mm Backset, 22mm Faceplate

SKU: 4991630-60-22

$224.57 - $224.57

$224.57

$224.57 - $224.57

$224.57

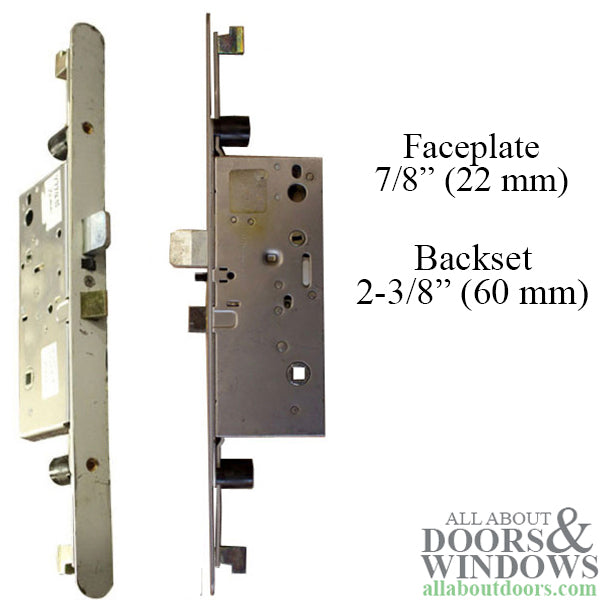

Backset: 2-3/8" (60mm)
Faceplate Width: 7/8" (22mm)
Faceplate Length: 16" (405mm)
Faceplate Corners: Radius
Rod Connection Thread: 1/4-20 (PGT uses 5/16-18 thread)
Stamped: Patent NO. 6,209,931
Active multipoint lock with concealed shootbolt rods at top and bottom
Faceplate is riveted to lock case
Does not include rods – gearbox only
Does NOT fit Marvin or Peachtree doors
Handing can be reversed with a screwdriver
Priced and sold each

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

Active Multipoint Lock – 60mm Backset, Radius Faceplate (4991630-60-22)

This active multipoint lock features concealed shootbolt rods at the top and bottom of the door panel. The lock case comes with an attached radius-end faceplate that is riveted in place. This gearbox is used by several door manufacturers but does NOT fit Marvin or Peachtree doors.

The lock operates by lifting the handle to extend the rods, then turning the key or thumbturn to extend the deadbolt. The handing can be reversed by inserting a screwdriver into the slot behind the latch, pulling down on the handing release until the latch pops out, rotating the latch, and pushing it back into the lock case. Always check the function of the lock before closing the door.

Stamped With

Patent NO. 6,209,931

Technical Information

Backset: 2-3/8 inches (60mm)
Faceplate Width: 7/8 inch (22mm)
Faceplate Length: 16 inches (405mm)
Faceplate Corners: Radius
Rod Connection Thread: 1/4-20 (PGT uses 5/16-18 thread)

Notes

Does NOT fit Marvin or Peachtree doors

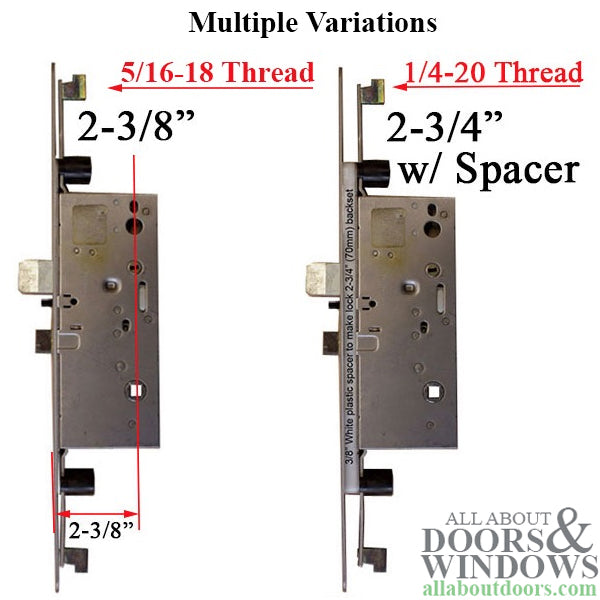

Available backsets: 2-3/8 inches or 2-3/4 inches
Faceplates available with either square or radius corners
Does not include rods – this is the gearbox only
Rods have a guide bracket at top and bottom of door that must be removed to extract rods
Rods have a hex shape that allows an extended socket to fit
If you remove the top bracket and top rod, the lock body may be removed with the bottom rod still attached

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I change the handing on this multipoint lock?

Insert a screwdriver into the slot behind the latch, pull down on the handing release until the latch pops out, rotate the latch 180 degrees, and push it back into the lock case.

Does this lock include the shootbolt rods?

No, this is the gearbox only. The top and bottom shootbolt rods are sold separately.

Will this lock fit my Marvin or Peachtree door?

No, this lock does NOT fit Marvin or Peachtree doors. Please contact us to find the correct lock for your door.
