Ashland Sentinel Swing Passive Gearbox – XP25 2-Point, 20mm Faceplate

SKU: 4991331

$121.80 - $121.80

$121.80

$121.80 - $121.80

$121.80

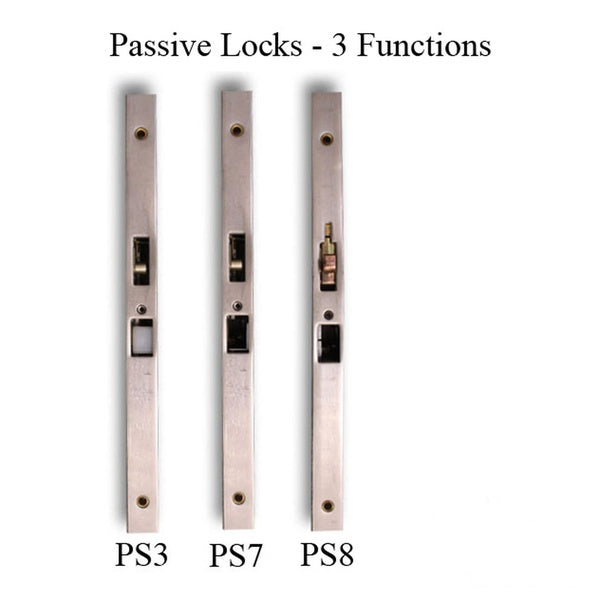

Type: Passive (PS3) center gearbox for double door systems without astragal
Faceplate Length: 40-15/16" (1039.6mm)
Faceplate Width: 25/32" (20mm)
Function: Receiver gearbox with receptacles for deadbolt and spring latch

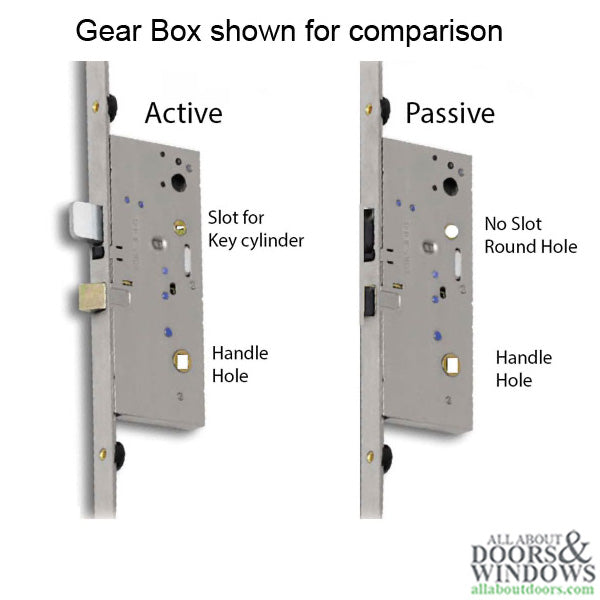

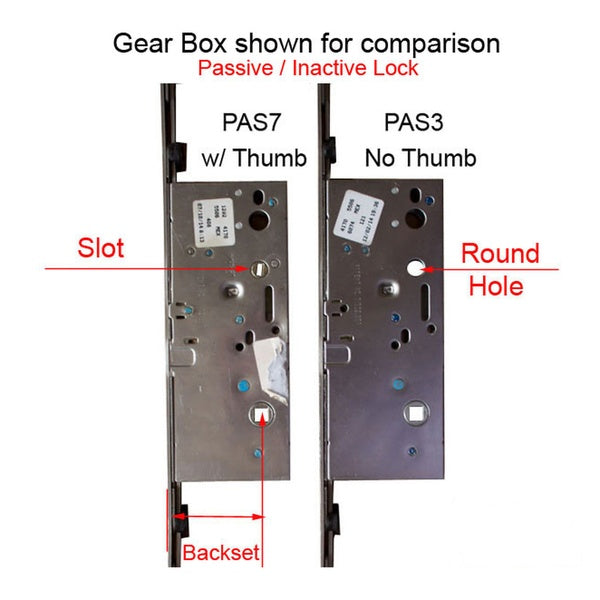

Passive gearbox has round hole only (no tailpiece slot)
Handle trim does NOT have a thumbturn on passive side
Deadbolt from active door locks into receptacle to prevent handle movement
1 of 3 pieces needed to complete a passive lock with shootbolts
Manufacturer part number: W5100STPAS3
Sold individually

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

Ashland Sentinel Swing Passive Gearbox (4991331)

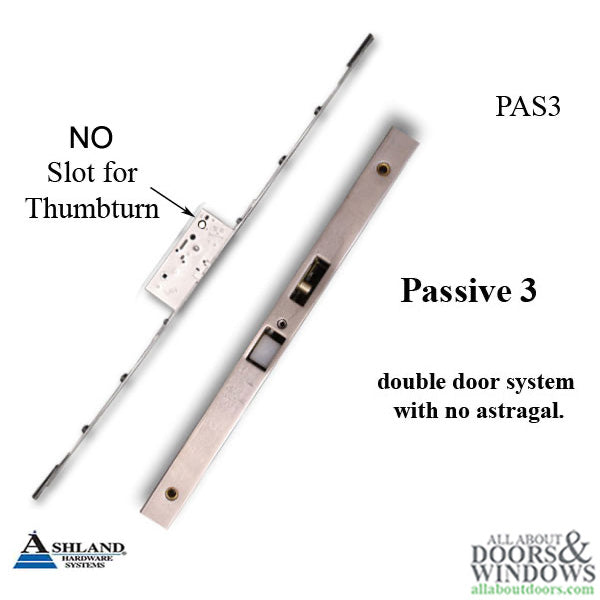

This Ashland passive (PS3) center gearbox is designed for use in double door multipoint systems without an astragal between panels. As the center section of the Sentinel Swing Multipoint XP25 2-point passive lock with shootbolts, this receiver gearbox contains receptacles for both the deadbolt and spring latch from the active door panel.

The passive gearbox features a round hole rather than a slot for a tailpiece, and the corresponding handle trim on the passive side does not include a thumbturn. When the deadbolt from the active door engages the receptacle on this passive lock, it prevents the handles from moving, securing both door panels.

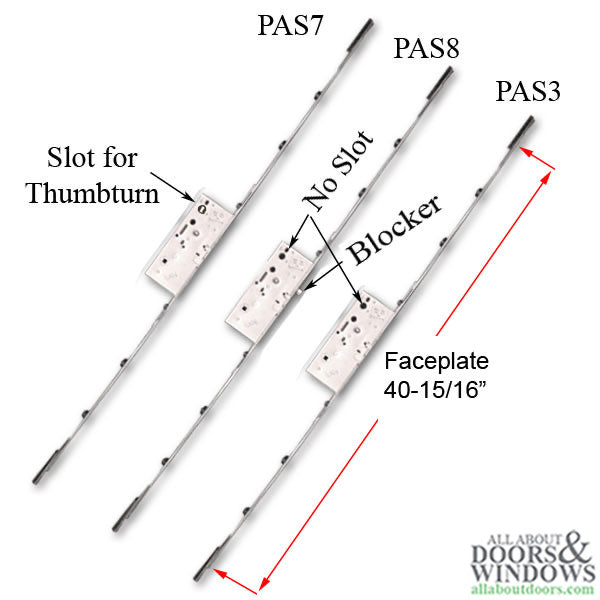

Please review all product images carefully, as there are 3 similar-looking components in this system. This gearbox is 1 of 3 pieces required to complete a passive lock assembly with shootbolts.

Technical Information

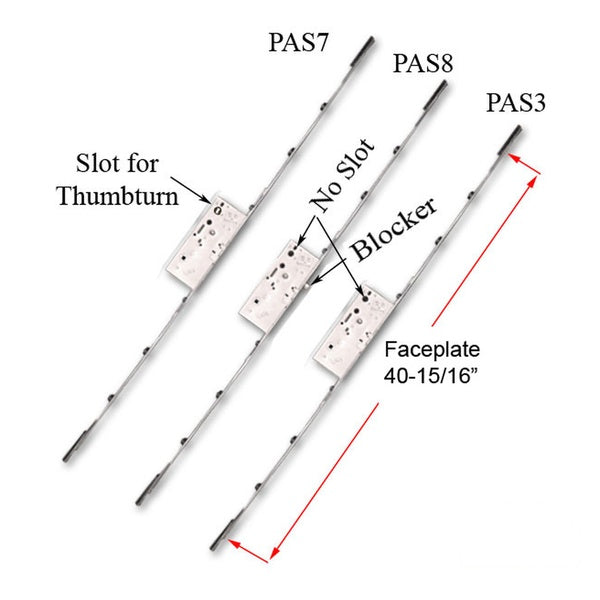

Faceplate Length: 40-15/16 inches (1039.6mm)
Faceplate Width: 25/32 inches (20mm)
Original Manufacturer SKU: W5100STPAS3

Related Parts

4101341 - Lower Shootbolt, 36" Handle Height (Jeldwen, Caradco)
Upper Extensions available for 77", 80", 93" doors (Jeldwen)

Sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

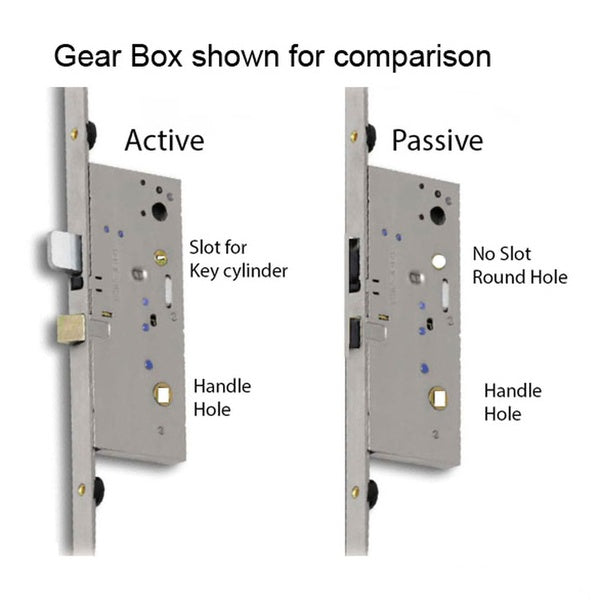

What is the difference between the passive and active gearbox?

The passive gearbox has a round hole instead of a tailpiece slot and does not have a thumbturn on the handle trim. It receives the deadbolt from the active door to lock both panels together.

How many pieces do I need to complete a passive lock with shootbolts?

You need 3 pieces total: this center gearbox plus the upper and lower extensions with shootbolts.

Will this work on a single door?

No, this passive gearbox is specifically designed for double door systems without an astragal between panels.
