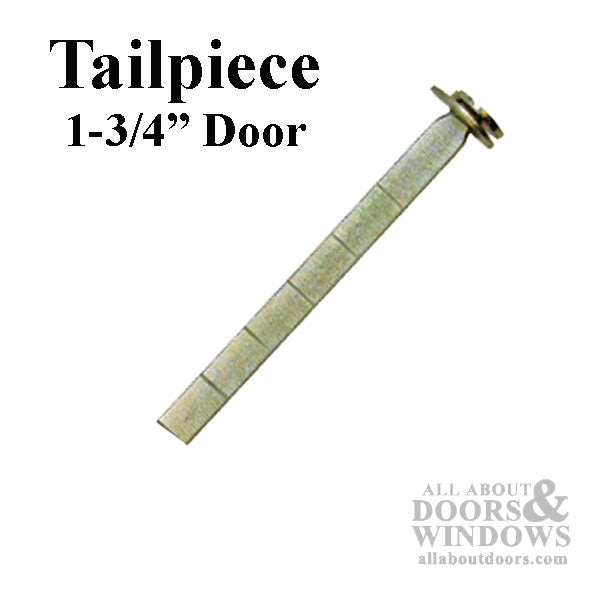

Ashland Cylinder Tailpiece – 1-1/2" Length for 1-3/4" Doors

Ashland Cylinder Tailpiece – 1-1/2" Length for 1-3/4" Doors

SKU: 395033

$1.38 - $1.38
$1.38
$1.38 - $1.38
$1.38
  • Length: 1-1/2" (38.1mm)
  • For Door Thickness: 1-3/4" (44.5mm)
  • Purpose: Converts trim sets to fit thicker doors when standard components are too short
  • Installation: Cylinder cap unscrews for easy replacement
  • Compatibility: Works with Ashland cylinder trim sets
  • Sold individually
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.
*We have a fully-staffed customer support team happy to help!

Ashland Cylinder Tailpiece – 1-1/2" (395033)

This Ashland cylinder tailpiece allows you to adapt your existing 1-3/4 inch thick door trim set to work properly with your door. When using standard 1-3/4 inch trim, the screws, spindle, and cylinder tailpiece may not be long enough for proper operation. This replacement tailpiece solves that problem.

The tailpiece measures 1-1/2 inches (38.1mm) in length and is designed for doors that are 1-3/4 inches (44.5mm) thick.

Technical Information

  • Tailpiece Length: 1-1/2 inches (38.1mm)
  • Door Thickness: 1-3/4 inches (44.5mm)
  • Brand: Ashland

Installation Instructions

  • Remove key from cylinder
  • Depress the spring-loaded pin and unscrew the cap (be careful not to lose the spring or pin)
  • Switch the existing tailpiece with the replacement
  • Place cap back in place and screw on until the spring-loaded pin catches a groove in the cap
  • Depress pin and screw all the way down, then back 2 notches in cap

Notes

  • If the key turns hard, the cap is too tight
  • If the key will not come out, the cap is too loose

Related Parts

  • 395033 - 1-1/2 inch length, fits 1-3/4 inch thick doors
  • 395034 - 2 inch length, fits 2-1/4 inch thick doors
  • 14287 - 2-3/8 inch length with 1/8" break off points, fits doors up to 2-1/4 inches
  • 9-C0975-90-0-6 - 3-3/8 inch length, fits doors up to 3-1/2 inches thick

Sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I know if I need a longer tailpiece?

If your key turns hard or won't come out after installing your trim set, your tailpiece may be too short for your door thickness. Measure your door thickness and select the appropriate tailpiece length.

How do I install the replacement tailpiece?

Remove the key, depress the spring-loaded pin, unscrew the cap, swap the tailpiece, then reassemble. Adjust the cap until the key operates smoothly.

What door thickness does this tailpiece fit?

This 1-1/2 inch tailpiece is designed for 1-3/4 inch thick doors. For thicker doors, see related tailpieces in longer lengths.
