Andersen A-Series 3-Point Lock Mechanism for FWHID68/FWHOD68 Doors – 50mm Backset, 106mm PZ

Andersen A-Series 3-Point Lock Mechanism for FWHID68/FWHOD68 Doors – 50mm Backset, 106mm PZ

SKU: 9014687

$279.48 - $279.48
$279.48
$279.48 - $279.48
$279.48
  • Backset: 2" (50mm)
  • PZ (Handle to Cylinder Center): 4-3/16" (106mm)
  • Handle Height: 36-1/8" (917mm)
  • Overall Length: 76-7/16" (1942mm)
  • Faceplate Width: 7/8" (22mm), Stainless Steel
  • Bottom Hook Position: 31-1/8" (790mm) from handle center
  • Top Hook Position: 35-1/2" (902mm) from handle center
  • Deadbolt to Spring Latch: 1-3/8" (35mm) center to center
  • For Andersen A-Series Hinged Patio Doors (2008 to present)
  • Fits door unit numbers FWHID68 / FWHOD68
  • 3-point locking system for active panel
  • Sold individually
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.
*We have a fully-staffed customer support team happy to help!

Andersen A-Series 3-Point Lock – FWHID68/FWHOD68 (9014687)

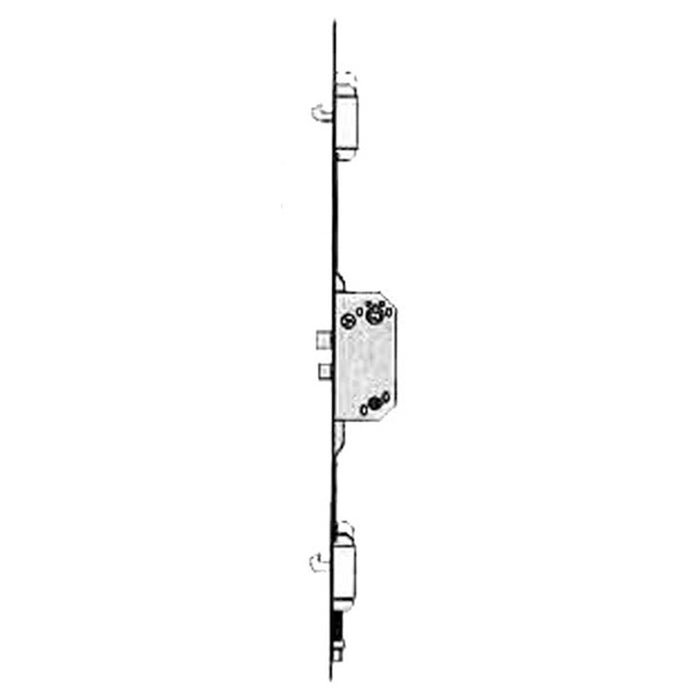

This Andersen 3-point lock mechanism is designed for the active panel of A-Series Hinged Patio Doors manufactured from 2008 to present. The lock features a robust 3-point locking system with top and bottom hooks plus a center deadbolt for enhanced security.

This lock mechanism fits door unit numbers FWHID68 and FWHOD68, which are inswing and outswing configurations. The overall length measures 76-7/16 inches (1942mm), making it suitable for 6 foot 8 inch door heights.

Technical Information

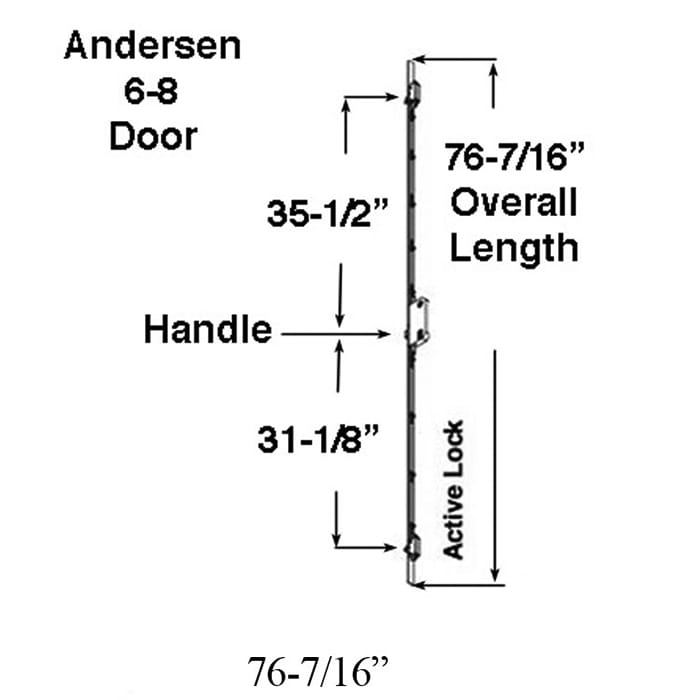

  • Overall Length: 76-7/16 inches (1942mm)
  • Backset: 2 inches (50mm)
  • PZ (Handle Center to Cylinder Center): 4-3/16 inches (106mm)
  • Handle Height: 36-1/8 inches (917mm)
  • Faceplate Width: 7/8 inch (22mm), Stainless Steel
  • Bottom Hook Position: 31-1/8 inches (790mm) from center of handle
  • Top Hook Position: 35-1/2 inches (902mm) from center of handle
  • Deadbolt to Spring Latch: 1-3/8 inches (35mm) center to center
  • Compatible Door Units: FWHID68, FWHOD68
  • Door Type: Inswing and Outswing
  • Manufacturing Period: 2008 to present

Related Parts

  • 9014687 - FWHID68, Active Lock Mechanism 3-point
  • 9014688 - FWHID611, Active Lock Mechanism 3-point
  • 9014689 - FWHID80, Active Lock Mechanism 3-point
  • 2579777 - FWHID68, Passive Lock Mechanism with Shootbolts
  • 2579778 - FWHID611, Passive Lock Mechanism with Shootbolts
  • 2579779 - FWHID80, Passive Lock Mechanism with Shootbolts

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I know if this lock fits my Andersen door?

Check your door's unit number label for FWHID68 or FWHOD68. This lock is designed for A-Series Hinged Patio Doors manufactured from 2008 to present.

What is the difference between active and passive lock mechanisms?

The active lock mechanism (this part) is installed on the door panel with the handle that you operate to lock and unlock. The passive mechanism goes on the stationary panel and engages with shootbolts.

Does this lock work for both inswing and outswing doors?

Yes, this lock mechanism is compatible with both inswing (FWHID68) and outswing (FWHOD68) door configurations.
