Upper and Lower Bolt Set for Sicurtop Locks – 9.5mm Push Rod, 19mm Throw

Upper and Lower Bolt Set for Sicurtop Locks – 9.5mm Push Rod, 19mm Throw

SKU: W01691.01.01

$63.44 - $63.44
$63.44
$63.44 - $63.44
$63.44
  • Push Rod Diameter: 9.5mm
  • Bolt Throw: 19mm
  • Profile Compatibility: 4mm timber profiles
  • Available Sizes: 180mm, 300mm, and 400mm
  • Application: Upper and lower bolts for double-sash entrance doors
  • Use: Secures semi-stationary sash to floor (180mm) and head jamb (180mm, 300mm, 400mm)
  • Compatible With: Sicurtop locks
  • Fastening: 4.5x30mm screws (3 for 180mm, 4 for 300mm, 5 for 400mm)
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.
*We have a fully-staffed customer support team happy to help!

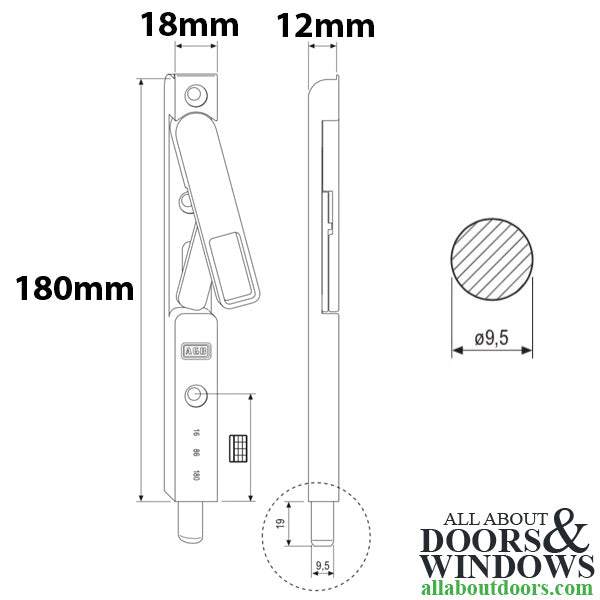

Upper and Lower Bolt Set (W01691.01.01)

This upper and lower bolt set features a 9.5mm diameter push rod with a 19mm throw, designed specifically for 4mm timber profiles. These bolts are engineered to work in combination with Sicurtop locks and are ideal for securing double-sash entrance doors.

The bolts secure the semi-stationary sash to both the floor and head jamb. The 180mm bolt is used for floor applications, while the 180mm, 300mm, and 400mm sizes can be used for head jamb installations depending on your door configuration.

Technical Information

  • Push Rod Diameter: 9.5mm
  • Bolt Throw: 19mm
  • Profile Type: 4mm timber
  • Available Lengths: 180mm, 300mm, 400mm
  • Original Manufacturer SKU: W01691.01.01

Notes

  • Use three 4.5x30mm screws for 180mm bolt installation
  • Use four 4.5x30mm screws for 300mm bolt installation
  • Use five 4.5x30mm screws for 400mm bolt installation
  • Milling jig art A20030.01.32 is recommended for executing the milling for the 180mm bolt

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What size screws do I need to install these bolts?

Use 4.5x30mm screws for installation. The 180mm bolt requires 3 screws, the 300mm requires 4 screws, and the 400mm requires 5 screws.

What is the milling jig used for?

The milling jig (art A20030.01.32) is used to execute the proper milling for the 180mm bolt installation in timber profiles.

Can these bolts be used on single-sash doors?

These bolts are specifically designed for double-sash entrance doors to secure the semi-stationary sash to the floor and head jamb.
