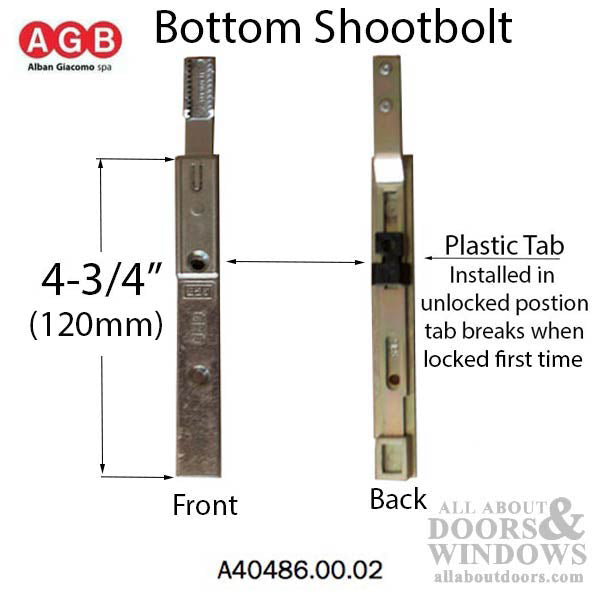

AGB Unitop Bottom Terminal Shootbolt – 120mm Length

AGB Unitop Bottom Terminal Shootbolt – 120mm Length

SKU: A40486.00.02

$10.19 - $10.19
$10.19
$10.19 - $10.19
$10.19
  • Application: Bottom terminal shootbolt for AGB Unitop multipoint locks
  • Length: 4-3/4" (120mm)
  • Shootbolt Throw: 9/16" (15mm)
  • Finish: Silver
  • Stamped: AGB GRO
  • Used to adjust handle height on standard AGB Unitop 3-point locks
  • Allows for handle heights from 37-5/16" (948mm) to 45-5/16" (1150mm)
  • Sold individually
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.
*We have a fully-staffed customer support team happy to help!

AGB Unitop Bottom Shootbolt – 120mm (A40486.00.02)

This AGB Unitop Bottom Terminal Shootbolt is designed for use with AGB Unitop 3-point multipoint lock systems. It allows installers to customize the handle height on doors by replacing the standard bottom shootbolt assembly.

The standard AGB Unitop 3-point lock features a 41-3/4 inch (1060mm) handle height with an overall length of 75-5/8 inches (1920mm), not including the top shootbolt or extensions. By using this bottom terminal shootbolt and cutting the bottom faceplate and serrated teeth, you can achieve shorter or taller handle heights to suit your specific door requirements.

When cutting the faceplate and serrated teeth, remove equal lengths from both sides to maintain proper alignment and function.

Handle Height Range

  • Standard: 41-5/16 inches (1050mm)
  • Minimum: 37-5/16 inches (948mm) by cutting lock face
  • Maximum: 45-5/16 inches (1150mm) by cutting lock face

Stamped With

  • AGB GRO

Technical Information

  • Application: Bottom Shootbolt
  • Length: 4-3/4 inches (120mm)
  • Shootbolt Throw: 9/16 inches (15mm)
  • Finish: Silver
  • Original Manufacturer SKU: A40486.00.02

Related Parts

  • A40486.00.01 - Terminal Shootbolt, Top, 180mm no cam
  • A40020.00.02.851 - Extension 200-400mm, 0cam
  • A40020.00.03.851 - Extension 400-600mm, 0cam
  • A41455.xx.09.851 - Inactive Assembly, 2-pt shootbolt, 0cam (xx = backset)
  • A41455.xx.09.853 - Active Assembly, 3-pt shootbolt, 0cam (xx = backset)

Sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the purpose of this bottom terminal shootbolt?

This shootbolt allows you to customize the handle height on AGB Unitop 3-point locks by replacing the standard bottom assembly and cutting the faceplate to achieve heights between 37-5/16 inches and 45-5/16 inches.

How do I adjust the handle height using this part?

Install this bottom terminal shootbolt and cut equal lengths from both sides of the bottom faceplate and serrated teeth to achieve your desired handle height.

What does 'no cam' mean for this shootbolt?

The 'no cam' designation indicates this shootbolt does not include a cam mechanism, which is the standard configuration for AGB Unitop bottom terminal shootbolts.
