Hoppe 90A Keyed Profile Cylinder with Crescent Knob – Rustic Umber

SKU:

$137.80 - $237.84

$137.80

$137.80 - $237.84

$137.80

Type: Keyed profile cylinder with crescent knob
Style: 90A degrees (shows locked/unlocked position)
Inside Distance: 2-3/8" (60.5mm)
Outside Distance: 1-1/4" (31.5mm)
Overall Length: 3-5/8" (92mm)
Door Thickness: 2-1/8" to 3" (54mm to 76mm)
Can be converted to 360 degree cylinder
Finish: Rustic Umber (F8709)
Sold individually

Quantity

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe 90A Keyed Cylinder – Rustic Umber (416031010)

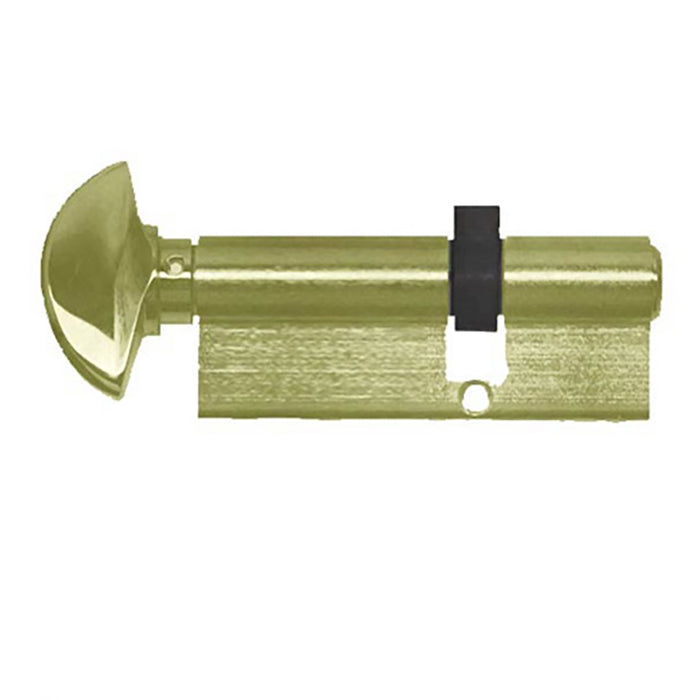

This Hoppe keyed profile cylinder features the new 90A degree design with a crescent knob thumb turn. The 90A degree rotation allows homeowners to easily see at a glance whether the door is locked or unlocked based on the thumb turn position.

Designed for doors that are 2-1/8 to 3 inches thick, this cylinder has an inside distance of 2-3/8 inches (60.5mm), an outside distance of 1-1/4 inches (31.5mm), and an overall length of 3-5/8 inches (92mm). If needed, this cylinder can be converted to a 360 degree cylinder for different applications.

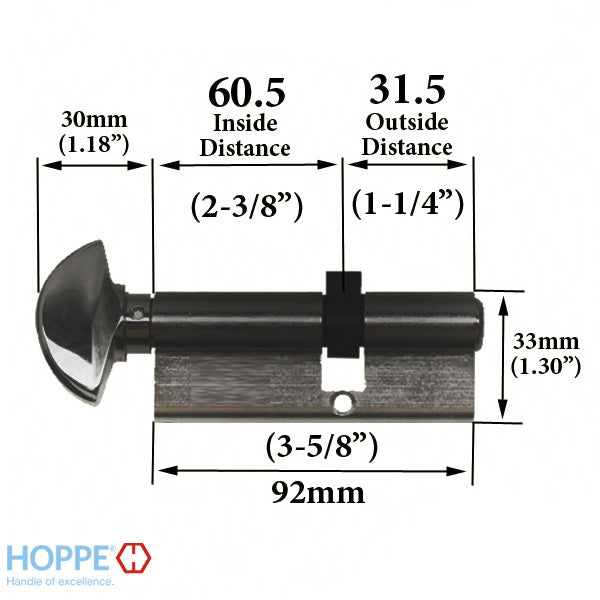

Technical Information

Inside Distance: 2-3/8 inches (60.5mm)
Outside Distance: 1-1/4 inches (31.5mm)
Overall Length: 3-5/8 inches (92mm)
Door Thickness Range: 2-1/8 to 3 inches (54mm to 76mm)
Rotation Style: 90A degrees (convertible to 360 degrees)
Finish: Rustic Umber (F8709)

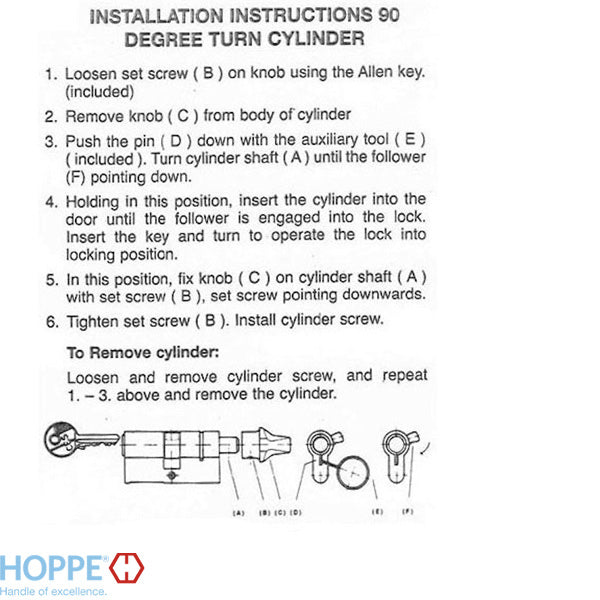

Installation Instructions

Remove thumb turn

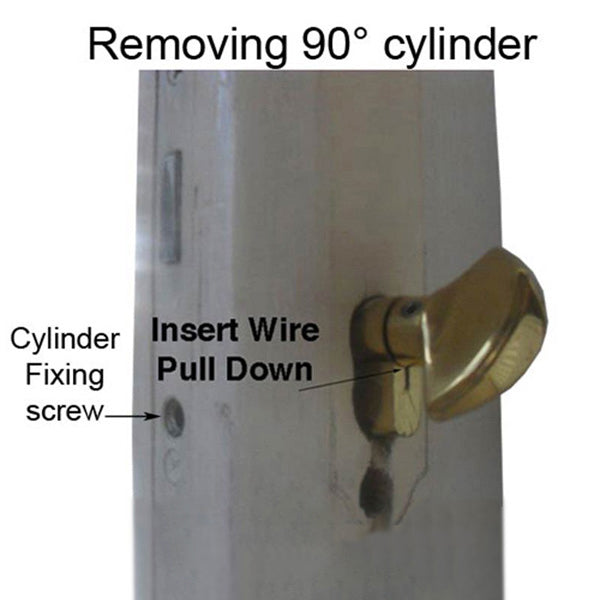

Insert auxiliary tool and pull down on release tab
Turn cam and insert into lock
Replace thumb turn

Notes

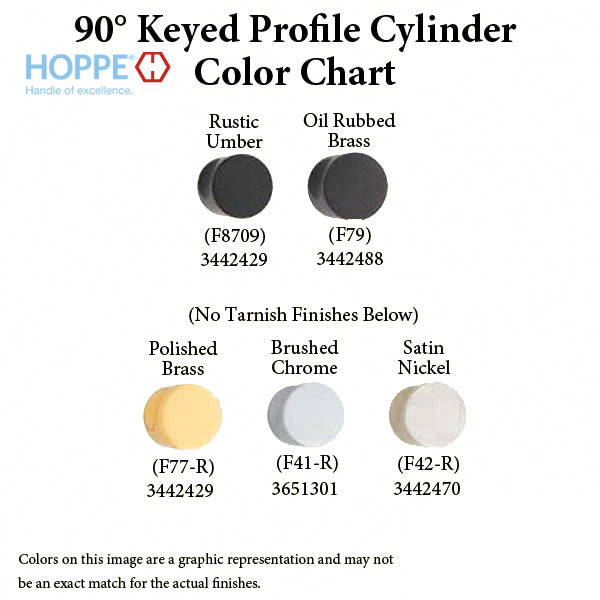

Available finishes include: Rustic Umber (F8709), Oil Rubbed Brass (F79), Polished Brass (F77-R), Brushed Chrome (F41-R), and Satin Nickel (F42-R)
Some colors may be special order, resulting in longer shipping times

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

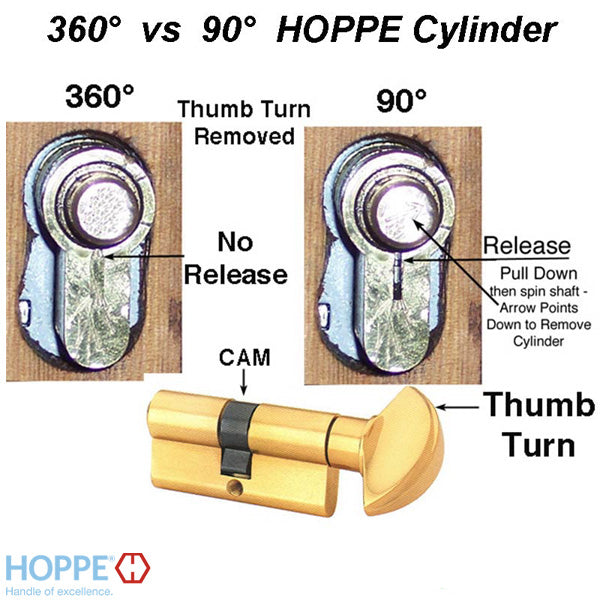

What does the 90A degree design mean?

The 90A degree design allows you to see at a glance whether your door is locked or unlocked based on the thumb turn position, unlike 360 degree cylinders where the position is less obvious.

Can I convert this cylinder to a 360 degree rotation?

Yes, this cylinder can be converted from 90A degree to 360 degree rotation if needed for your application.

How do I know if this cylinder will fit my door?

This cylinder fits doors that are 2-1/8 to 3 inches thick. Measure your door thickness and verify the inside and outside distances match your lock requirements.
