Hoppe 90-Degree Profile Cylinder with Crescent Knob – 40.5mm/40.5mm

SKU:

$124.96 - $195.20

$124.96

$124.96 - $195.20

$124.96

Type: 90-Degree Profile Cylinder with Crescent Knob
Housing Length: 40.5mm / 40.5mm – 3-1/8" (81mm) overall
Inside Distance: 1-19/32" (40.5mm)
Outside Distance: 1-19/32" (40.5mm)
Door Thickness: For doors 2-1/8" to 3" (54mm to 76mm) thick
90-degree thumb turn position indicates locked/unlocked status at a glance
Can be converted to 360-degree rotation
Typically used on panels 2-1/2" (63.5mm) thick
Some finishes feature Resista no-tarnish coating
Some colors may be special order with longer shipping times

Quantity

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

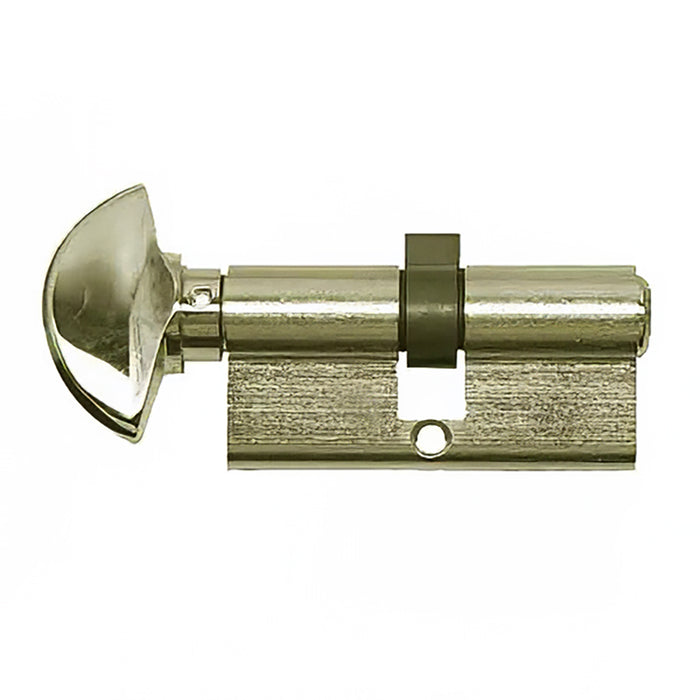

Hoppe 90-Degree Profile Cylinder – Crescent Knob (414040010)

This Hoppe 90-degree profile cylinder with crescent knob is designed for multipoint lock systems on doors ranging from 2-1/8 to 3 inches thick. The 90-degree thumb turn design allows you to quickly see whether your door is locked or unlocked just by looking at the thumb turn position.

The cylinder features a balanced 40.5mm inside and 40.5mm outside configuration, giving an overall housing length of 3-1/8 inches (81mm). This makes it ideal for door panels approximately 2-1/2 inches thick. If needed, this cylinder can be converted from 90-degree to 360-degree rotation.

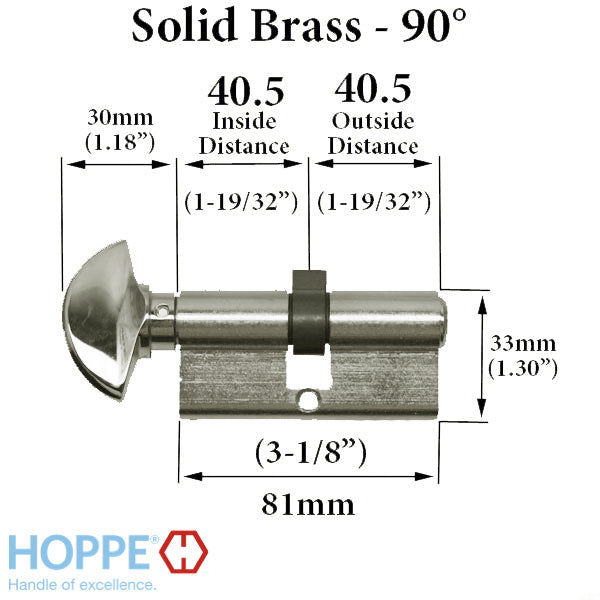

Technical Information

Inside Distance: 1-19/32 inches (40.5mm)
Outside Distance: 1-19/32 inches (40.5mm)
Overall Length: 3-1/8 inches (81mm)
Door Thickness Range: 2-1/8 to 3 inches (54mm to 76mm)
Thumb Turn Style: Crescent Knob
Rotation: 90-degree (convertible to 360-degree)

Notes

Some finishes are Resista no-tarnish finishes (indicated by -R suffix)
Available finishes: Rustic Umber (F8709), Oil Rubbed Brass (F79), Matte/Flat Black (F9714), Antique Brass, Polished Brass (F77-R), Brushed Chrome (F41-R), Satin Nickel (F42-R)
Some colors may be special order with longer shipping times

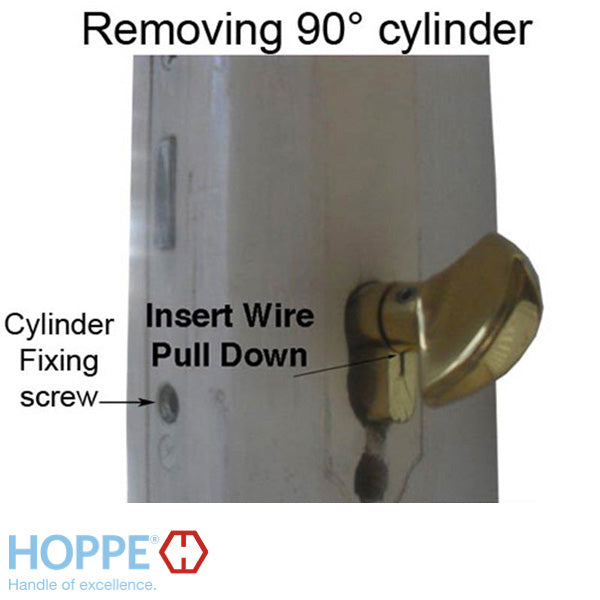

Installation Instructions

Remove the thumb turn
Insert auxiliary tool and pull down on release tab
Turn cam and insert into lock
Replace thumb turn

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I know if my door is locked with this cylinder?

The 90-degree thumb turn design allows you to see at a glance whether the door is locked or unlocked based on the thumb turn position.

Can I convert this cylinder to 360-degree rotation?

Yes, this 90-degree cylinder can be converted into a 360-degree cylinder if needed.

What door thickness does this cylinder fit?

This cylinder is designed for doors that are 2-1/8 to 3 inches thick, and is typically used on panels approximately 2-1/2 inches thick.
