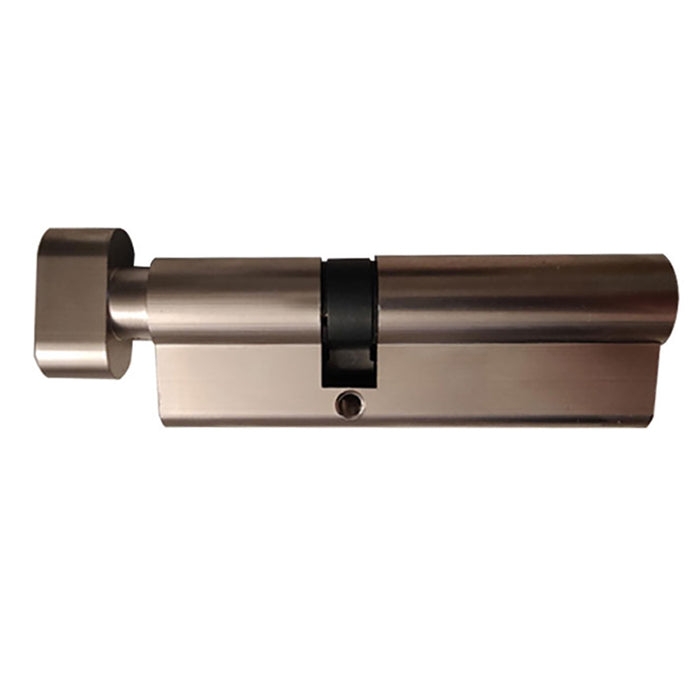

Yale Euro Profile Cylinder – 35/55mm, 360° Turn, Nickel

SKU:

$26.48 - $55.13

$26.48

$26.48 - $55.13

$26.48

Cylinder Type: Euro/Profile with 360° turn
Overall Length: 3-5/8" (90mm) – 35mm thumb side / 55mm key side
Inside Distance (Thumb): 1-3/8" (35mm)
Outside Distance (Key): 2-3/16" (55mm)
Door Thickness: Fits doors 2-1/8" to 3" (54mm to 76mm) thick, depending on trim
Keyway: European Yale Y-1
Material: Brass
Finish: Nickel
Keys Included: 3 cut keys
Sold individually

Quantity

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

Yale Euro Profile Cylinder – 35/55mm, Nickel (413555170)

This Yale keyed euro profile cylinder features a 360-degree turn mechanism, making it suitable for multipoint lock systems and other European-style door hardware. The cylinder measures 3-5/8 inches (90mm) in overall length, with 35mm on the thumb-turn side and 55mm on the keyed side.

Designed for doors ranging from 2-1/8 inches to 3 inches thick (depending on your trim thickness), this cylinder is constructed from solid brass with a nickel finish. It uses the European Yale Y-1 keyway and comes complete with 3 cut keys.

Technical Information

Cylinder Type: Euro/Profile, 360° turn
Overall Length: 90mm (3-5/8 inches)
Inside Distance (Thumb): 35mm (1-3/8 inches)
Outside Distance (Key): 55mm (2-3/16 inches)
Door Thickness Range: 2-1/8 to 3 inches (54mm to 76mm)
Material: Brass
Keyway: European Yale Y-1
Keys Included: 3

Notes

This cylinder is ideal for those who want a Yale keyway or a more economical option
Also available in Polished Brass finish
For a brushed or satin nickel appearance, lightly rub the finish with 000 steel wool. Use caution: rubbing too hard or too much will expose the underlying brass material

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

How do I determine if this cylinder will fit my door?

Measure your door thickness (this fits 2-1/8 to 3 inch doors) and the distance from the edge of the door to the center of the cylinder hole on both sides. The inside (thumb) side should be approximately 35mm and the outside (key) side should be approximately 55mm.

What does 360-degree turn mean for this cylinder?

A 360-degree turn cylinder can rotate fully in either direction, which is required for multipoint lock systems where the cylinder needs to engage multiple locking points along the door frame.

Can I change the finish to a brushed or satin nickel look?

Yes, you can lightly rub the nickel finish with 000 steel wool to achieve a brushed appearance. Be careful not to rub too hard, as this will expose the brass material underneath.
