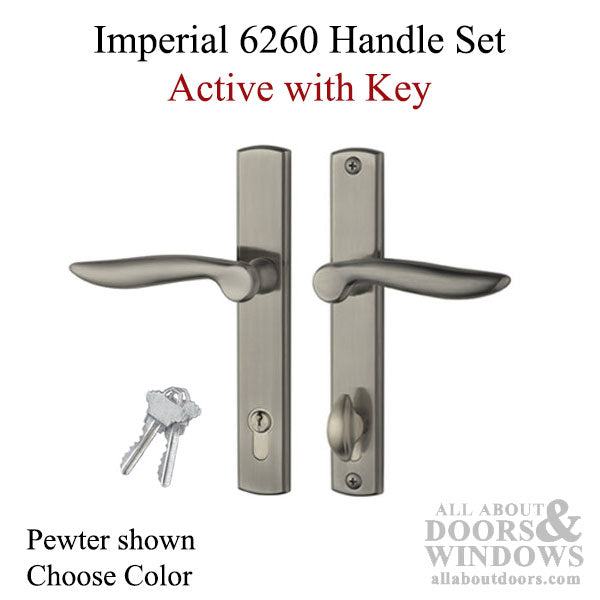

Active Multipoint Lock Trim – Euro-Profile Cylinder, 1-3/4" Door

Active Multipoint Lock Trim – Euro-Profile Cylinder, 1-3/4" Door

SKU:

$99.95 - $169.00
$99.95
$99.95 - $169.00
$99.95
  • Door Thickness: 1-3/4" (44.5mm)
  • Cylinder Design: Euro-Profile with 90° crescent thumbturn
  • Keyway: Schlage 5-pin SC1 with 2 keys included
  • Escutcheon Plates: 1-3/8" x 8-3/4" (35mm x 222mm)
  • Escutcheon Plate Screws: 7-7/8" (200mm)
  • Available Finishes: Satin Nickel, Oil Rubbed Bronze
  • Active door trim with keyed cylinder
  • Fits Atrium, Crestline, Hurd, Jeld-Wen, Kolbe & Kolbe, KFV, Lincoln, Loewen, Norco, Peachtree, Pozzi, SNE, Semco, Sierra Pacific, Simpson, Signatur, Therma-Tru, Vetter, Willmar, Weathershield, Windsor, and other doors using Euro-Profile cylinder configuration
  • Sold individually
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Active Multipoint Lock Trim – Euro-Profile (40030)

This active multipoint lock trim is designed for 1-3/4 inch thick doors and features a keyed Euro-Profile cylinder with a 90-degree crescent thumbturn. Available in Satin Nickel and Oil Rubbed Bronze finishes, this trim provides a clean, functional solution for multipoint locking systems.

The trim includes a Schlage 5-pin SC1 keyway with 2 keys, making it compatible with standard Schlage key systems. The escutcheon plates measure 1-3/8 x 8-3/4 inches with 7-7/8 inch screws for secure mounting.

Technical Information

  • Door Thickness: 1-3/4 inches (44.5mm)
  • Cylinder Type: Euro-Profile with 90° crescent thumbturn
  • Keyway: Schlage 5-pin SC1
  • Keys Included: 2

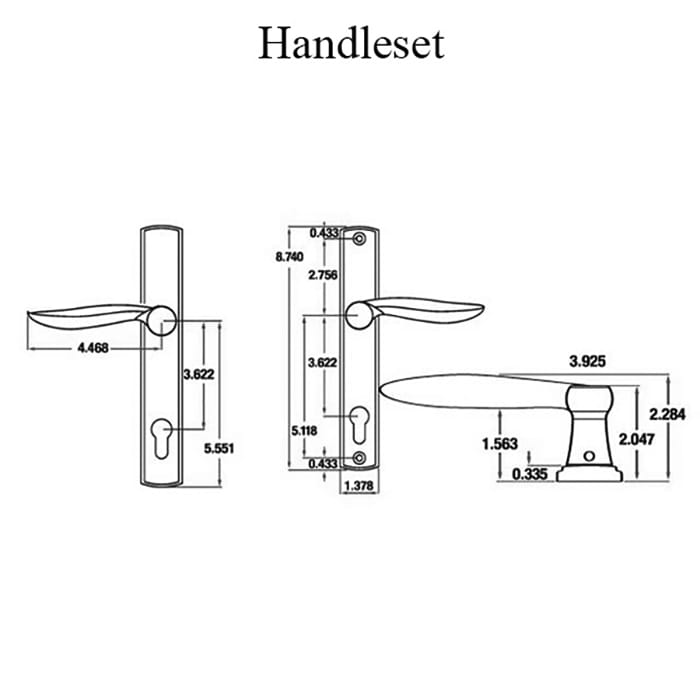

  • Escutcheon Plate Dimensions: 1-3/8 x 8-3/4 inches (35mm x 222mm)
  • Escutcheon Plate Screw Length: 7-7/8 inches (200mm)

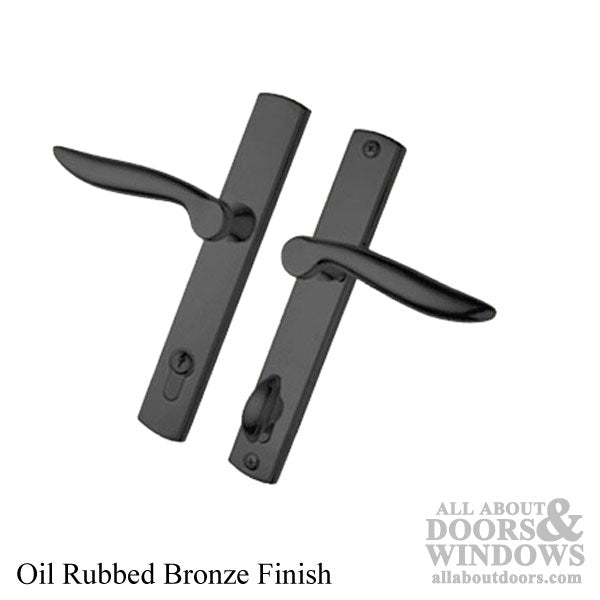

  • Available Finishes: Satin Nickel, Oil Rubbed Bronze

Notes

  • Fits doors from: Atrium, Crestline, Hurd, Jeld-Wen, Kolbe & Kolbe, KFV, Lincoln, Loewen, Norco, Peachtree, Pozzi, SNE, Semco, Sierra Pacific, Simpson, Signatur, Therma-Tru, Vetter, Willmar, Weathershield, Windsor, and other doors using the same Euro-Profile cylinder configuration

Replaces / Replaced by

  • Replaces Hoppe, Fuhr, Roto, Winkhaus, and some Amesbury, Ashland, and Essve multipoint lock hardware with the same Euro-Profile design

Related Parts

  • 40030 - Active Door with Keyed Cylinder
  • 40031 - Inactive/Passive Door with 1/2 Cylinder
  • 40032 - Fixed Dummy Pair

Priced and sold each.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What cylinder type does this trim use?

This trim uses a Euro-Profile cylinder with a 90-degree crescent thumbturn and Schlage 5-pin SC1 keyway.

What door brands is this trim compatible with?

This trim fits doors from Atrium, Crestline, Hurd, Jeld-Wen, Kolbe & Kolbe, Lincoln, Loewen, Peachtree, Therma-Tru, Weathershield, Windsor, and many other manufacturers using Euro-Profile cylinder configurations.

What is the difference between the 40030, 40031, and 40032?

The 40030 is for the active door with a keyed cylinder, the 40031 is for the inactive/passive door with a half cylinder, and the 40032 is a fixed dummy pair for non-functioning applications.
