Marvin Passive Handle Set for Sliding French Doors – No Key, No Thumb-Turn (Old Style)

SKU 14573

  • Type: Passive handle set with no key and no thumb-turn
  • Escutcheon Plate Width: 1-7/8" (47.6mm)
  • Escutcheon Plate Length: 12-1/2" (317.5mm)
  • Thumb Turn Screw Spacing: 1-1/16" (27mm) horizontal
  • Bottom to Thumb Turn Center: 10-1/16" (255.6mm)
  • Handing: Non-handed – handles can be switched for left or right hand doors
  • Compatibility: Marvin Ultimate Sliding French Doors (old style)
  • Note: Old style with horizontal screw holes at thumb turn
  • Status: Discontinued – replaced by new style 14578
This product has been discontinued and is no longer available
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

Marvin Passive Handle Set – Old Style (14573)

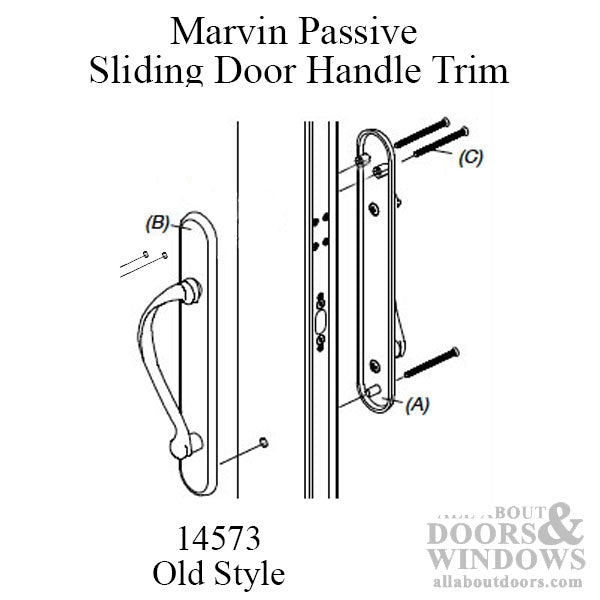

This Marvin passive handle set was designed for Ultimate Sliding French Doors. It features a non-keyed configuration with no thumb-turn, making it ideal for the passive (non-locking) side of a sliding French door system.

The escutcheon plates measure 1-7/8 inches (47.6mm) wide by 12-1/2 inches (317.5mm) long. The screw hole configuration includes two horizontal holes at the thumb turn position spaced 1-1/16 inches (27mm) apart, with one screw hole located 10-1/16 inches (255.6mm) from the bottom to the center of the thumb turn area.

This handle set is non-handed, meaning the handles can be switched to accommodate either left or right hand doors without needing to purchase a different version.

Technical Information

  • Escutcheon Plate Width: 1-7/8 inches (47.6mm)
  • Escutcheon Plate Length: 12-1/2 inches (317.5mm)
  • Thumb Turn Screw Spacing: 1-1/16 inches (27mm) horizontal
  • Bottom to Thumb Turn Center: 10-1/16 inches (255.6mm)
  • Keyed: No
  • Thumb-turn: No
  • Handing: Non-handed

Notes

  • This is the old style with horizontal screw holes at the thumb turn position
  • The new style (14578) has vertical screws at the thumb turn and bottom
  • The new style covers the old horizontal screw holes but does not cover the impression remaining at the bottom of the handle
  • This is old stock and may not be shipped in original box
  • This design was used exclusively by Marvin but may fit other doors

Replaces / Replaced by

  • This item has been discontinued and replaced by 14578 (new style)

This product has been discontinued. Please see 14578 for the replacement new style handle set.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

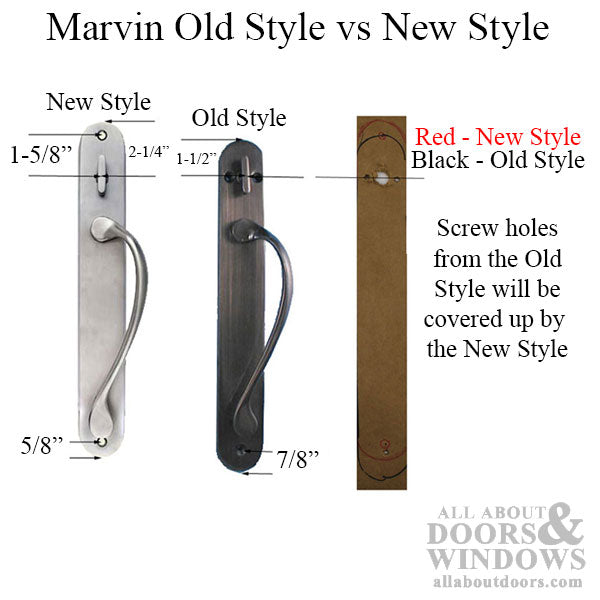

What is the difference between the old style and new style Marvin handle sets?

The old style (14573) has horizontal screw holes at the thumb turn position, while the new style (14578) has vertical screws at the thumb turn and bottom. The new style will cover the old horizontal screw holes but may leave a visible impression at the bottom.

Can this handle set be used on left or right hand doors?

Yes, this handle set is non-handed, meaning the handles can be switched to work with either left or right hand doors.

What is a passive handle set?

A passive handle set is used on the non-locking side of a sliding French door system. It has no key cylinder and no thumb-turn, serving only as a pull handle.
