Marvin Modern Handle Assembly for Ultimate Hinged French Door – Active Panel, PVD Oil Rubbed Bronze

Marvin Modern Handle Assembly for Ultimate Hinged French Door – Active Panel, PVD Oil Rubbed Bronze

SKU 11102151

Sold out
$590.08 - $590.08
$590.08
$590.08 - $590.08
$590.08
  • PZ: 3-5/8" (92mm) center of cylinder to center of lever
  • Escutcheon Plates: 1-7/8" x 10-1/8" (47.6mm x 257.2mm)
  • Screw Hole Center: 7-1/4" (184.2mm)
  • Finish: PVD Oil Rubbed Bronze
  • Keyway: Schlage "C"
  • Complete active panel handle assembly for Marvin Ultimate Hinged French Doors
  • Includes interior lever with spindle, exterior lever, thumb turn, keyed cylinder, escutcheon plates, gasket, and all hardware
  • Includes 2 keys
  • Sold as complete assembly
Discontinued and no longer available
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

Marvin Modern Handle – Active, PVD ORB (11102151)

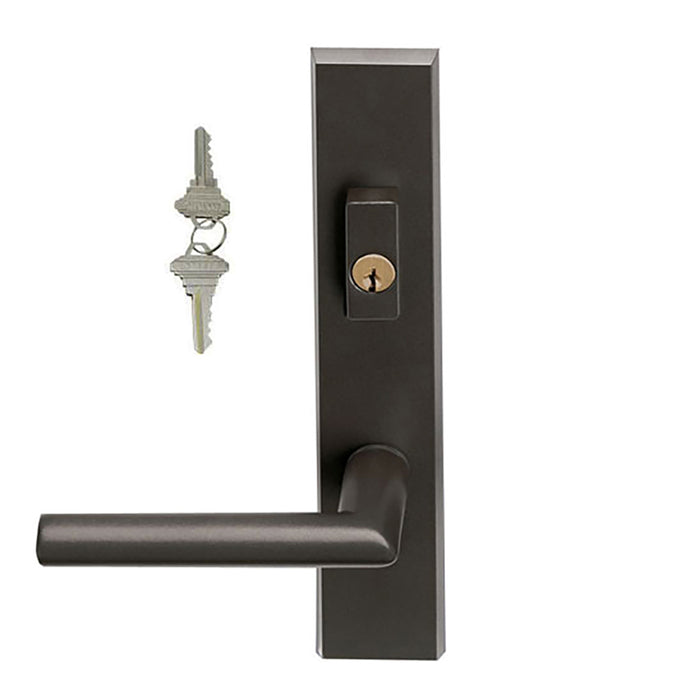

This Marvin Modern Handle Assembly is designed for the active panel of Ultimate Hinged French Doors. Finished in PVD Oil Rubbed Bronze, this complete handle set provides both security and a sleek, contemporary appearance for your entryway.

The assembly includes everything needed for installation on the active door panel: an interior lever with spindle, exterior lever, thumb turn, keyed cylinder with Schlage "C" keyway, interior and exterior escutcheon plates, gasket, and all necessary mounting hardware. Two keys are included with the keyed cylinder.

Technical Information

  • PZ (Center of Cylinder to Center of Lever): 3-5/8 inches (92mm)
  • Escutcheon Plate Dimensions: 1-7/8 inches x 10-1/8 inches (47.6mm x 257.2mm)
  • Screw Hole Center: 7-1/4 inches (184.2mm)
  • Finish: PVD Oil Rubbed Bronze
  • Keyway: Schlage "C"
  • Panel Type: Active

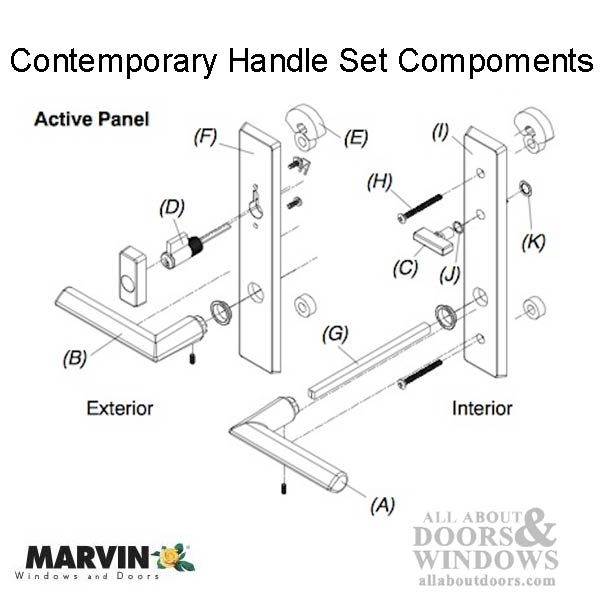

Included Components

  • 1 - Interior lever (A) with 10148414 spindle, escutcheon plate and hardware
  • 1 - Exterior lever (B) with escutcheon plate and hardware
  • 1 - Thumb turn (C) with hardware
  • 1 - Keyed cylinder (D) with housing and hardware
  • 1 - Exterior escutcheon plate gasket (E)
  • 1 - Exterior escutcheon plate (F)
  • 1 - Two piece spindle (G)
  • 2 - M5 x 55mm Phillips ovalhead machine screws (H)
  • 1 - Interior escutcheon plate (I)
  • 1 - Thumb turn washer (J)
  • 1 - Thumb turn push nut (K)
  • 2 - Keys

Related Parts

  • 11102150 - Satin Taupe (Active Panel, Keyed)
  • 11102152 - PVD Satin Nickel (Active Panel, Keyed)
  • 11102156 - Dark Bronze (Active Panel, Keyed)
  • 11102192 - Matte Black (Active Panel, Keyed)
  • 11102153 - Satin Taupe (Passive/Dummy)
  • 11102154 - PVD Oil Rubbed Bronze (Passive/Dummy)
  • 11102155 - PVD Satin Nickel (Passive/Dummy)
  • 11102157 - Dark Bronze (Passive/Dummy)
  • 11102193 - Matte Black (Passive/Dummy)

Sold as complete assembly.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the difference between active and passive panel handles?

The active panel handle includes a keyed cylinder and thumb turn for locking, while the passive/dummy handle has no locking mechanism and is used on the stationary door panel of a French door pair.

What does PZ measurement mean?

PZ refers to the distance from the center of the cylinder (keyhole) to the center of the lever handle. This handle has a PZ of 3-5/8 inches (92mm).

What keyway does this handle use?

This handle uses a Schlage "C" keyway, which is a common American cylinder keyway for residential applications.
