Marvin Active Door Handle Assembly – Keyed, Matte Black

Marvin Active Door Handle Assembly – Keyed, Matte Black

SKU 10830450

$312.68 - $312.68
$312.68
$312.68 - $312.68
$312.68
  • Keyway: Schlage SC-1, 5-pin
  • Back-plate Length: 10-1/8" (257mm)
  • Back-plate Width: 1-7/8" (47.6mm)

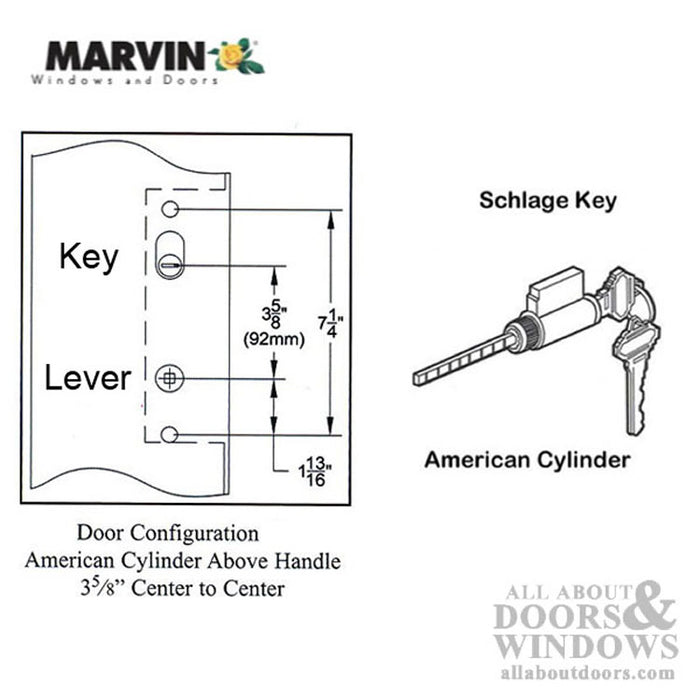

  • Screw Hole Spacing: 7-1/4" (184.2mm)
  • Square Spindle: 5/16" x 4-5/16" (7.9mm x 109.5mm)
  • Door Thickness: 1-3/4" (44.5mm)

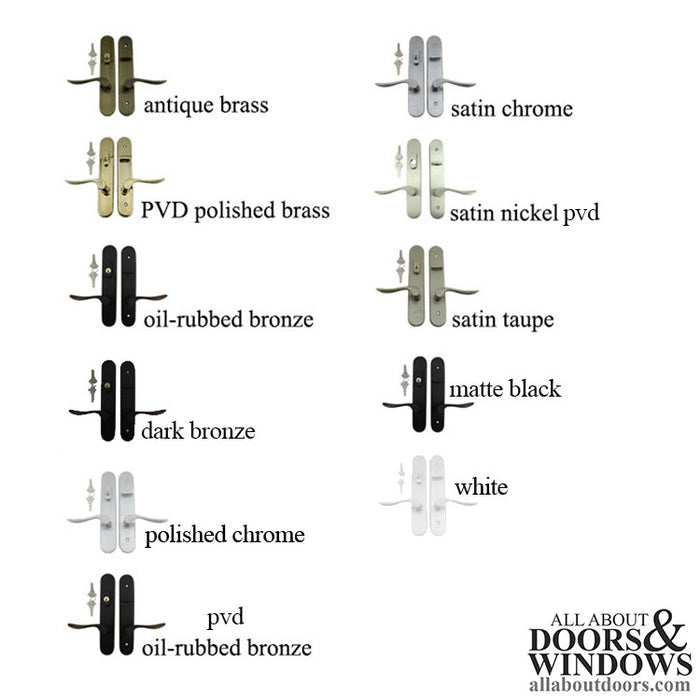

  • Color: Matte Black
  • Plate Design: Radius
  • Construction Material: Solid Brass
  • Priced and sold as a package
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

Marvin Active Door Handle Assembly – Matte Black (10830450)

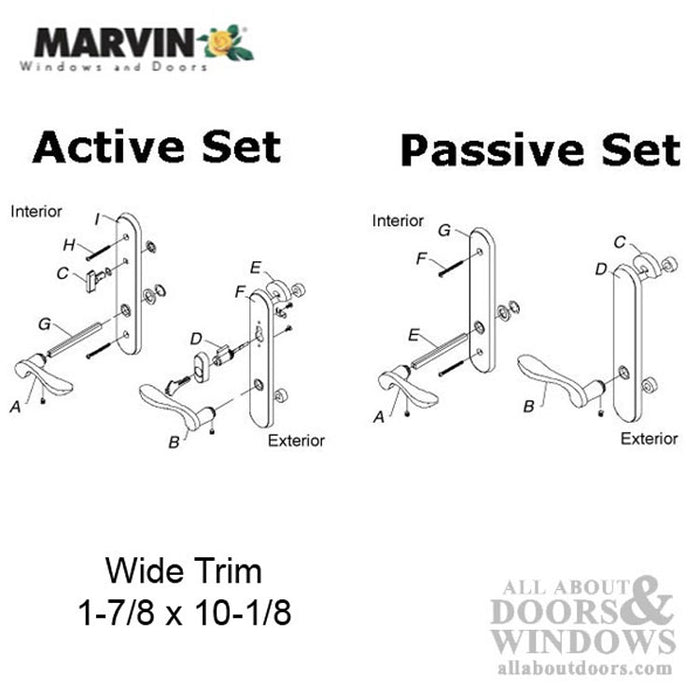

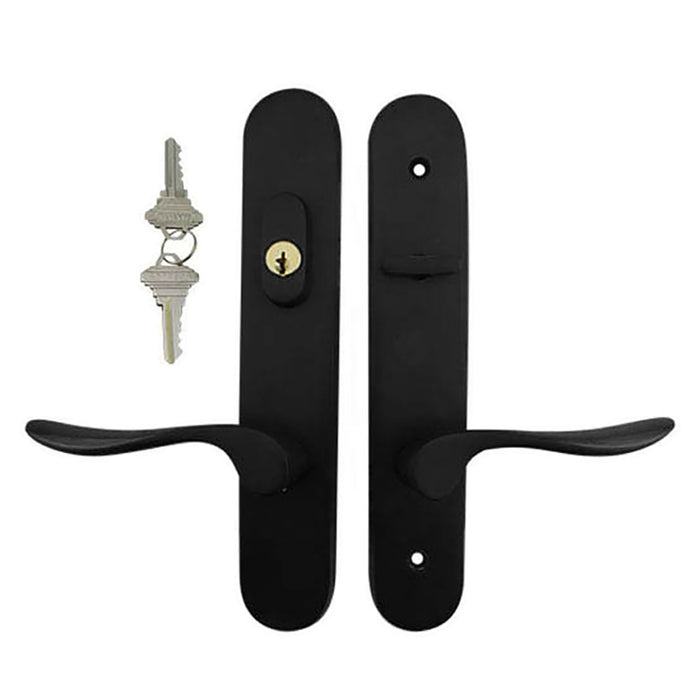

This Marvin active door trim handle assembly is designed for use on Marvin UIFD, UOFD, and UAFD doors. Constructed from solid brass with a matte black finish, this keyed handle assembly features a Schlage SC-1 keyway with 5-pin configuration for reliable security.

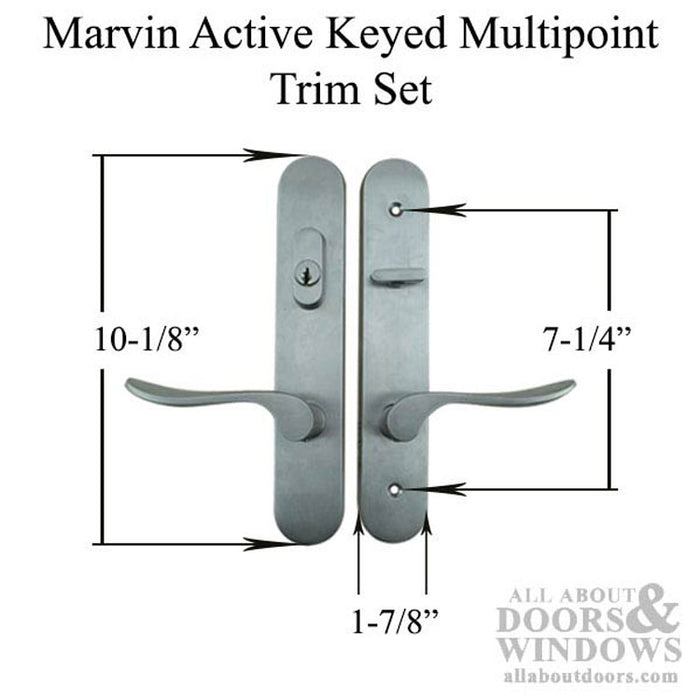

The handle assembly includes a radius-style back-plate measuring 10-1/8 inches (257mm) in length and 1-7/8 inches (47.6mm) in width. Screw hole spacing is 7-1/4 inches (184.2mm), and the square spindle measures 5/16 inch by 4-5/16 inches (7.9mm by 109.5mm). This trim is designed for doors with a 1-3/4 inch (44.5mm) thickness.

While manufactured for Marvin doors, this handle assembly will fit other doors with the same configuration and measurements.

Technical Information

  • Back-plate Length: 10-1/8 inches (257mm)
  • Back-plate Width: 1-7/8 inches (47.6mm)
  • Screw Hole Spacing: 7-1/4 inches (184.2mm)
  • Square Spindle: 5/16 inch x 4-5/16 inches (7.9mm x 109.5mm)
  • Door Thickness: 1-3/4 inches (44.5mm)
  • Keyway: Schlage SC-1, 5-pin
  • Construction Material: Solid Brass
  • Plate Design: Radius
  • Color: Matte Black

Notes

  • Used by Marvin on UIFD, UOFD, and UAFD door models
  • Will fit other doors with matching configuration

Priced and sold as a package.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What keyway does this handle assembly use?

This handle assembly uses a Schlage SC-1 keyway with a 5-pin configuration.

Will this handle fit doors other than Marvin?

Yes, while designed for Marvin UIFD, UOFD, and UAFD doors, this handle assembly will fit other doors with the same configuration and measurements.

What door thickness is this handle designed for?

This handle assembly is designed for doors with a 1-3/4 inch thickness.
