Marvin Inactive/Dummy Patio Door Trim – Antique Brass

Marvin Inactive/Dummy Patio Door Trim – Antique Brass

SKU 10830312

$572.06 - $572.06
$572.06
$572.06 - $572.06
$572.06
  • Function: Inactive/Dummy trim for hinged passive patio doors
  • Back-plate Length: 10-1/8" (257mm)
  • Back-plate Width: 1-7/8" (47.6mm)

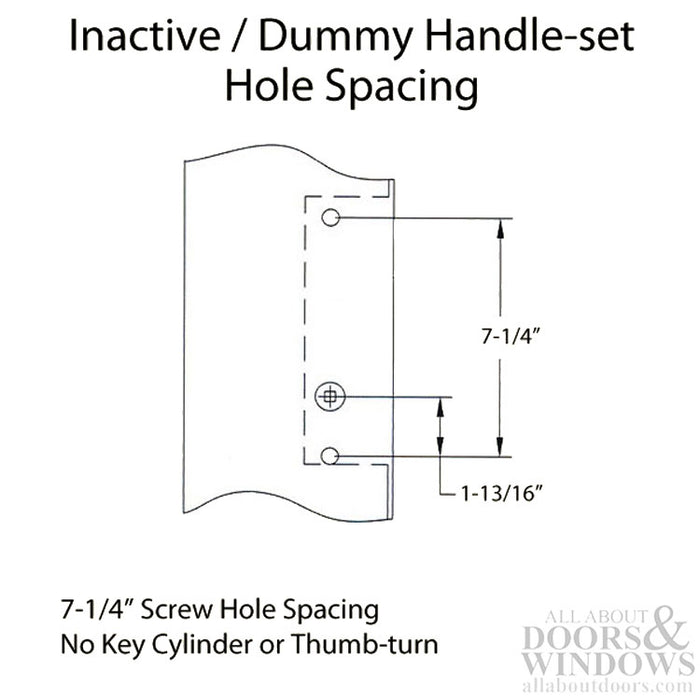

  • Screw Hole Spacing: 7-1/4" (184mm)
  • Spindle: 5/16" square, 4-5/16" (109.5mm) length
  • Material: Zinc
  • Finish: Antique Brass
  • Converts from inactive to dummy with included fixing plate
  • Used by Marvin, fits other doors with same configuration
  • Priced and sold as a package
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

Marvin Inactive/Dummy Trim – Antique Brass (10830312)

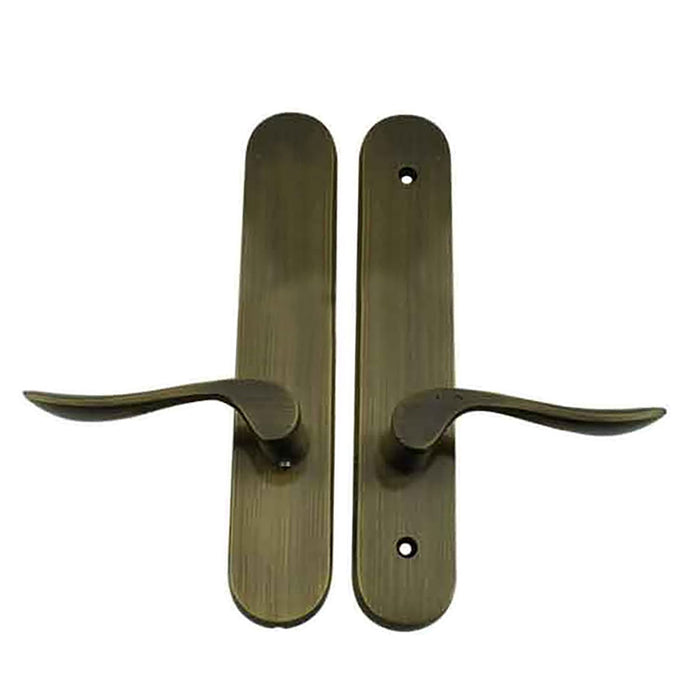

This Marvin inactive or dummy trim is designed for hinged passive patio doors. While manufactured for Marvin doors, it will fit other doors with the same configuration and measurements.

The trim features a zinc construction with an antique brass finish. The back-plate measures 10-1/8 inches (257mm) in length and 1-7/8 inches (47.6mm) in width, with screw hole spacing of 7-1/4 inches (184mm). The 5/16-inch square spindle has a length of 4-5/16 inches (109.5mm).

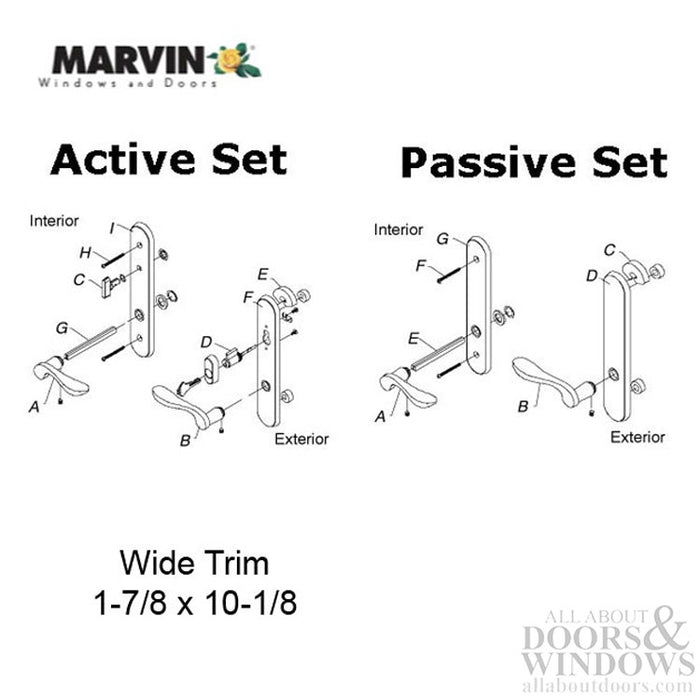

Available Functions

  • Active: Keyed on exterior, thumb turn on interior
  • Inactive: Levers move and can operate an inactive lock, no thumb turn
  • Dummy: Levers are fixed and do not move, cannot operate lock

The inactive function can be converted to dummy when required by adding the fixing plate to the levers, which is included with the package.

Technical Information

  • Back-plate Length: 10-1/8 inches (257mm)
  • Back-plate Width: 1-7/8 inches (47.6mm)
  • Screw Hole Spacing: 7-1/4 inches (184mm)
  • Spindle Size: 5/16 inch square
  • Spindle Length: 4-5/16 inches (109.5mm)
  • Material: Zinc
  • Finish: Antique Brass

Priced and sold as a package.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the difference between inactive and dummy function?

Inactive trim has levers that move and can operate an inactive lock, while dummy trim has fixed levers that do not move. This package includes a fixing plate to convert from inactive to dummy function.

Will this trim fit doors other than Marvin?

Yes, while designed for Marvin hinged passive patio doors, this trim will fit other doors with the same configuration and screw hole spacing of 7-1/4 inches.

What is included in the package?

The package includes the inactive/dummy trim and a fixing plate that allows you to convert the inactive function to dummy function when needed.
