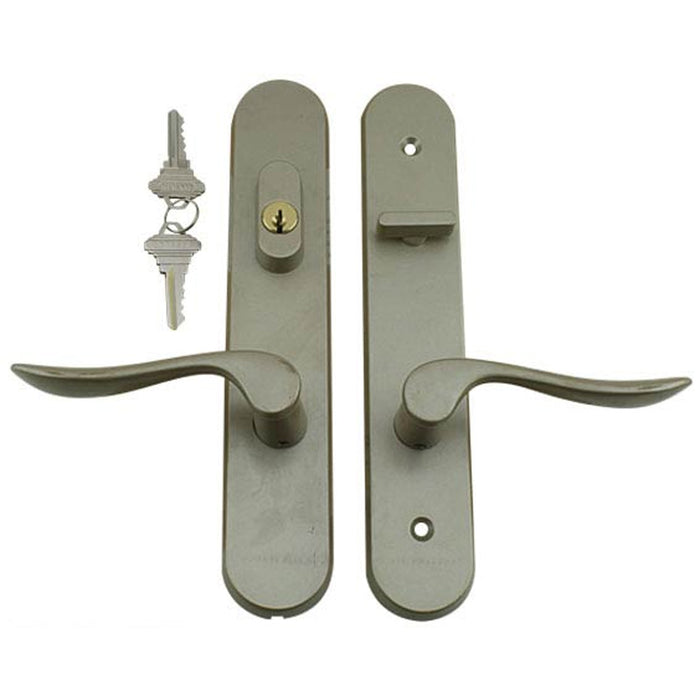

Marvin Traditional Active Hinged Door Trim – Keyed, Satin Taupe

Marvin Traditional Active Hinged Door Trim – Keyed, Satin Taupe

SKU 10830304

$351.77 - $351.77
$351.77
$351.77 - $351.77
$351.77
  • Function: Active trim for hinged doors
  • Style: Traditional

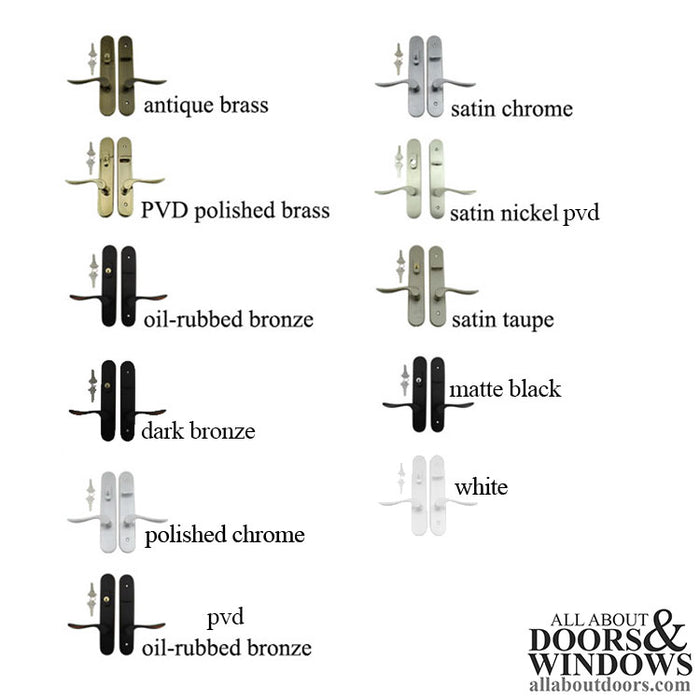

  • Finish: Satin Taupe
  • Keyway: Schlage SC1, 5-pin (2 keys included)

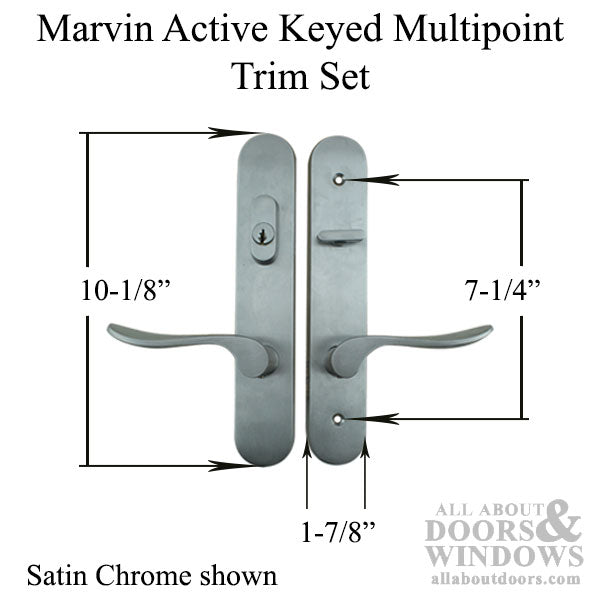

  • Back-plate Length: 10-1/8" (257mm)
  • Back-plate Width: 1-7/8" (47.6mm)

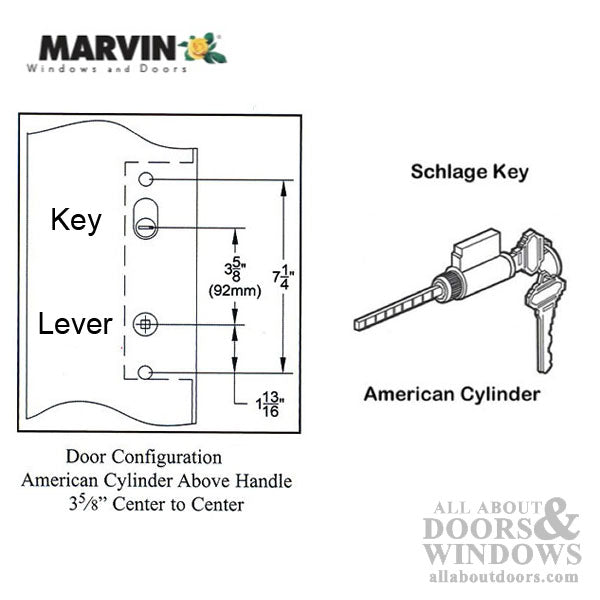

  • Screw Hole Spacing: 7-1/4" (184.2mm)
  • Spindle: 5/16" (7.9mm) square, 4-5/16" (109.5mm) length
  • Material: Zinc
  • Compatible with Marvin UIFD, UOFD, UAFD, French double doors, and single patio doors
  • Priced and sold as a package
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

Marvin Traditional Active Hinged Door Trim – Satin Taupe (10830304)

This Marvin Traditional Active Hinged Door Trim provides a keyed entry solution for hinged patio doors. Designed for use with Marvin UIFD, UOFD, UAFD models, French double doors, and single patio doors, this handle assembly features a classic traditional style in a Satin Taupe finish.

The trim uses a Schlage SC1 keyway with a 5-pin cylinder and comes with 2 keys. While designed for Marvin doors, this trim will also fit other doors with the same configuration and mounting dimensions.

Technical Information

  • Function: Active trim for hinged door
  • Keyway: Schlage SC1, 5-pin
  • Back-plate Length: 10-1/8 inches (257mm)
  • Back-plate Width: 1-7/8 inches (47.6mm)
  • Screw Hole Spacing: 7-1/4 inches (184.2mm)
  • Spindle Size: 5/16 inch (7.9mm) square
  • Spindle Length: 4-5/16 inches (109.5mm)
  • Construction Material: Zinc

Notes

  • Includes 2 keys
  • Compatible with Marvin UIFD, UOFD, UAFD, French double doors, and single patio doors
  • Will fit other doors with matching configuration

Priced and sold as a package.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What keyway does this Marvin door trim use?

This trim uses a Schlage SC1 keyway with a 5-pin cylinder and comes with 2 keys.

Will this trim fit doors other than Marvin?

Yes, while designed for Marvin doors, this trim will fit other doors with the same configuration and mounting dimensions.

What Marvin door models is this compatible with?

This trim is compatible with Marvin UIFD, UOFD, UAFD models, French double doors, and single patio doors.
