Marvin Active Trim for Multipoint Doors – Oil Rubbed Bronze PVD

Marvin Active Trim for Multipoint Doors – Oil Rubbed Bronze PVD

SKU 10830300

$505.60 - $505.60
$505.60
$505.60 - $505.60
$505.60

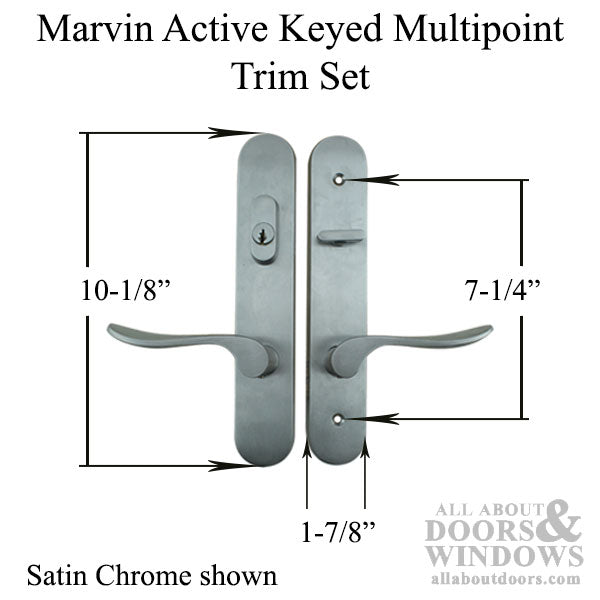

  • Back-plate Length: 10-1/8" (257.2mm)
  • Back-plate Width: 1-7/8" (47.6mm)

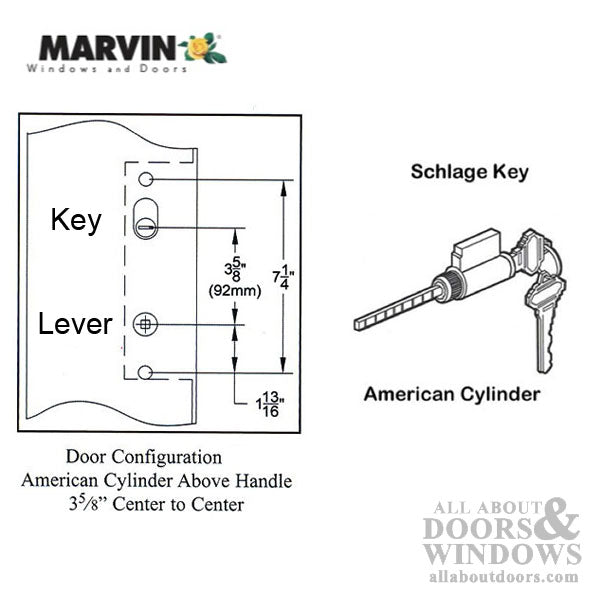

  • Screw Hole Spacing: 7-1/4" (184.2mm)
  • Door Thickness: 1-3/4" (44.5mm)
  • Square Spindle: 5/16" x 4-5/16" (7.9mm x 109.5mm)
  • Plate Design: Radius
  • Construction Material: Solid Brass
  • Color/Finish: Oil Rubbed Bronze, PVD (lighter bronze)
  • Keyway: Schlage SC-1, 5 pin (Kwikset/Weiser available at additional charge)
  • PVD finish resists tarnish, corrosion, and discoloration
Visa Mastercard American Express Discover
Estimated Delivery
Between December 13 and December 17
*Delivery dates are estimates and may vary based on availability and shipping method

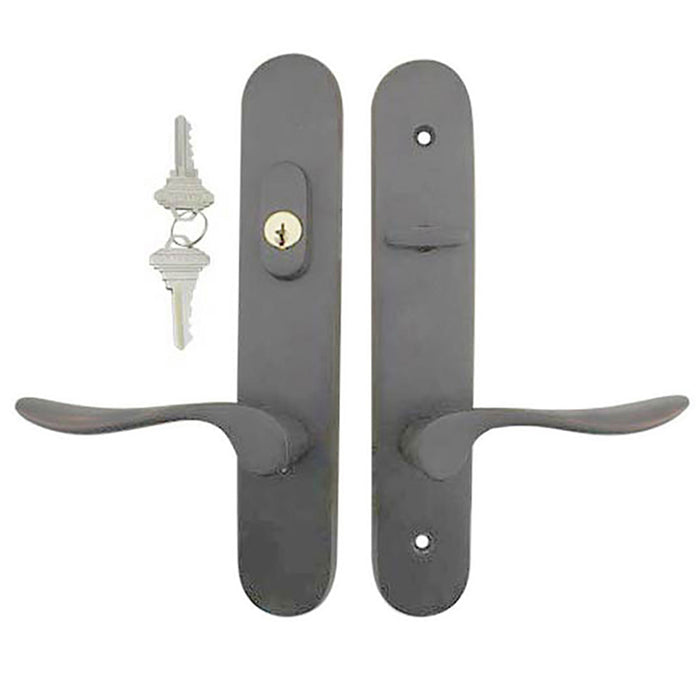

Marvin Active Trim – Oil Rubbed Bronze PVD (10830300)

This Marvin active trim is designed for multi-point lock hardware on hinged patio doors. Constructed from solid brass with a high-performance PVD Oil Rubbed Bronze finish, this trim provides both durability and an attractive appearance for your entryway.

The PVD (Physical Vapor Deposition) finish offers superior resistance to tarnish, corrosion, and discoloration compared to standard finishes. Note that the PVD Oil Rubbed Bronze is a lighter color than the standard Oil Rubbed Bronze finish.

Technical Information

  • Back-plate Length: 10-1/8 inches (257.2mm)
  • Back-plate Width: 1-7/8 inches (47.6mm)
  • Screw Hole Spacing: 7-1/4 inches (184.2mm)
  • Door Thickness: 1-3/4 inches (44.5mm)
  • Square Spindle: 5/16 inches x 4-5/16 inches (7.9mm x 109.5mm)
  • Plate Design: Radius
  • Construction Material: Solid Brass
  • Keyway: Schlage SC-1, 5 pin

Notes

  • PVD Oil Rubbed Bronze is a lighter color than standard Oil Rubbed Bronze
  • Optional Kwikset/Weiser keyway available at an additional charge

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the difference between PVD Oil Rubbed Bronze and standard Oil Rubbed Bronze?

The PVD (Physical Vapor Deposition) Oil Rubbed Bronze is a lighter color than the standard Oil Rubbed Bronze finish. PVD finishes also offer superior resistance to tarnish, corrosion, and discoloration.

Can I get this trim with a different keyway?

Yes, this trim comes standard with a Schlage SC-1, 5 pin keyway, but Kwikset/Weiser keyway is available at an additional charge.

What door thickness does this trim fit?

This active trim is designed for doors with a 1-3/4 inch (44.5mm) thickness.
