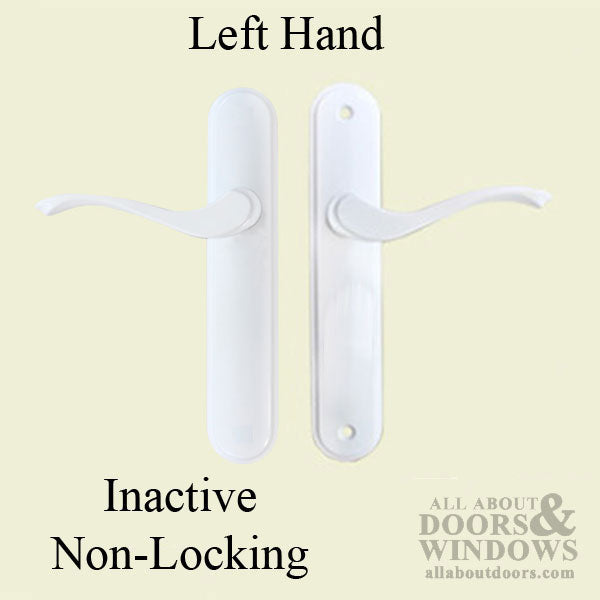

Inactive Multipoint Door Hardware – Left Hand, White

SKU: 395113

$84.87 - $84.87

$84.87

$84.87 - $84.87

$84.87

Function: Passage type lever for locking shootbolts on inactive/passive door
Handing: Left hand (handles can be removed and reattached to change handing)
Screw Hole Centers: 7-7/8" (200mm)
Escutcheon Plate Width: 1-13/16" (46mm)
Escutcheon Plate Length: 9-3/8" (238mm)
Door Thickness: 1-3/4" (44mm)
Screws: M5 x 58mm
Base Material: Zinc
Color/Finish: White
No key or thumb turn – passage function only
Uses snap ring to hold handles (no set screws)
Sold individually

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543.

*We have a fully-staffed customer support team happy to help!

Product Details

Inactive Multipoint Door Hardware – Left Hand, White (395113)

This inactive hardware set is designed for the passive door in a double French door configuration with a multipoint lock system. It provides a passage-type lever that locks the shootbolts on the inactive door without requiring a key or thumb turn.

The left-hand configuration features handles that can be removed and reattached to change handing if needed. The escutcheon plate measures 1-13/16 inches (46mm) wide by 9-3/8 inches (238mm) long, with screw hole centers at 7-7/8 inches (200mm). Designed for doors with a 1-3/4 inch (44mm) thickness.

This hardware uses a snap ring system to secure the handles to the escutcheon plate rather than traditional set screws. The zinc base material with white painted finish provides a clean, durable appearance suitable for interior applications.

Technical Information

Function: Passage (no key or thumb turn)
Screw Hole Centers: 7-7/8 inches (200mm)
Escutcheon Plate Width: 1-13/16 inches (46mm)
Escutcheon Plate Length: 9-3/8 inches (238mm)
Door Thickness: 1-3/4 inches (44mm)
Screws Included: M5 x 58mm
Base Material: Zinc
Finish: White (painted)
Handing: Left hand (reversible)

Notes

Handles use snap ring attachment – no set screws
For double French doors: pair with one active keyed handleset
Zinc substrate with painted finish – brass substrate available for coastal areas in premium finishes

Replaces / Replaced by

Replaces Integrity by Marvin inactive hardware for multipoint locks
Replaces Milgard inactive hardware for multipoint locks

Related Parts

11860963 - Spring Cassette
11860963 - Keyed Cylinder with 2 keys
11805188 - Escutcheon Plate Screw (White)
11869243 - Active, Right Hand (White)
11869234 - Passive Left Hand (White)

Priced and sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

Can I change the handing on this inactive hardware?

Yes, the handles can be removed and reattached to change from left hand to right hand configuration.

What is the difference between active and inactive hardware for French doors?

Active hardware includes a keyed cylinder for the primary operating door, while inactive or passive hardware controls the shootbolts on the stationary door without a key or thumb turn.

How are the handles attached to the escutcheon plate?

This hardware uses a snap ring system to hold the handles in place rather than traditional set screws.
