Hoppe HLS9000 Bottom Gear – 45mm Backset, 35" Handle Height, Shootbolt

Hoppe HLS9000 Bottom Gear – 45mm Backset, 35" Handle Height, Shootbolt

SKU: 8787107

$170.43 - $170.43
$170.43
$170.43 - $170.43
$170.43
  • Function: Shootbolt with vertical locking bolt
  • Backset: 1-3/4" (45mm)
  • Handle Height: 35" (889mm) – Special Size
  • Faceplate Width: 5/8" (16mm)
  • Deadbolt Throw: 1" (25mm)
  • Locking Type: Manual locking for active door
  • Note: If 36" handle height is needed, order bottom assembly 8778331
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Hoppe HLS9000 Bottom Gear – 45mm, 35" (8787107)

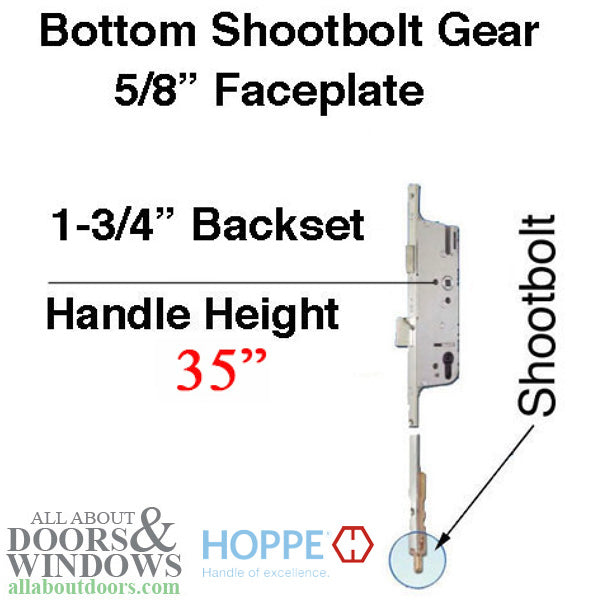

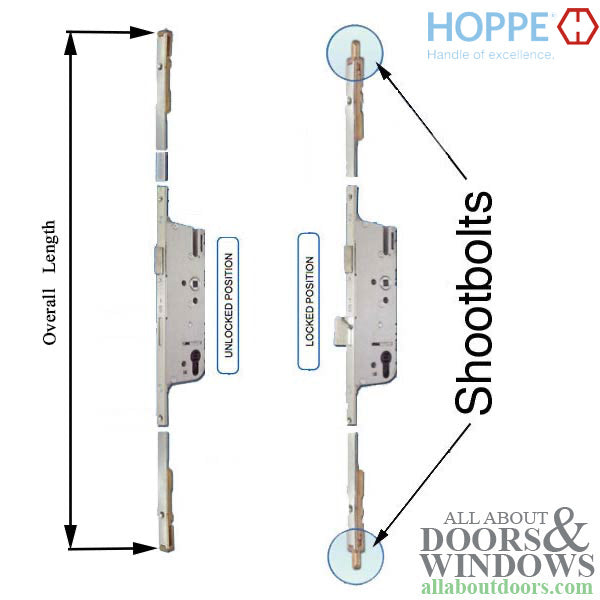

This Hoppe Bottom Gear is designed for HLS9000 shootbolt multipoint lock systems. It features a shootbolt function with a vertical locking bolt, providing secure bottom engagement for active doors with manual locking operation.

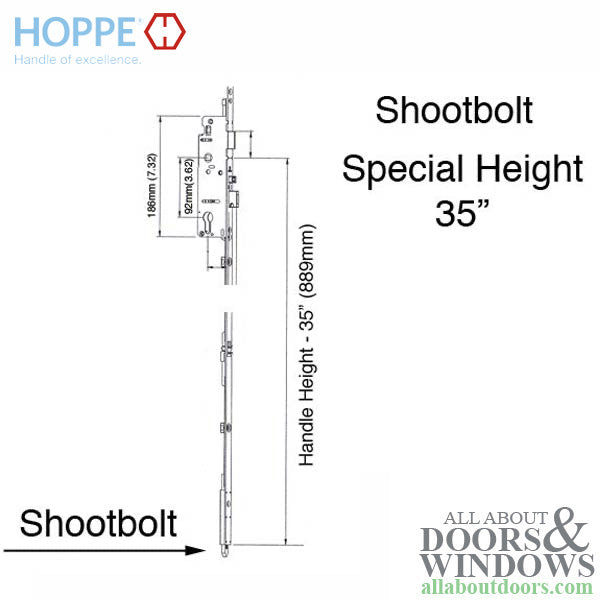

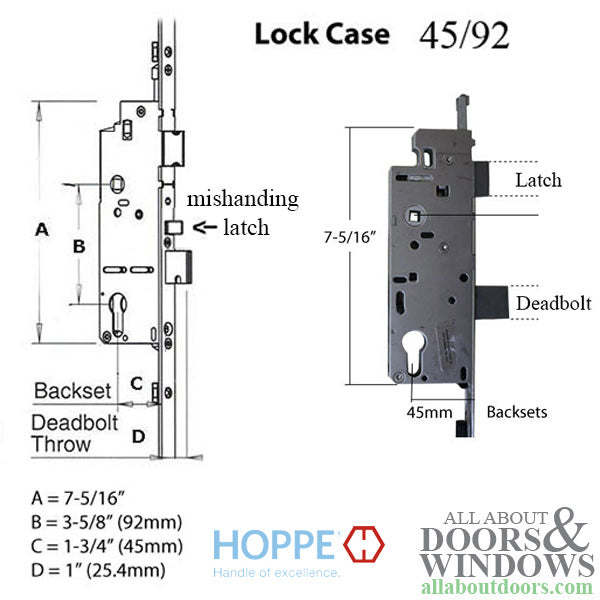

The gear has a 1-3/4 inch (45mm) backset and a 35 inch (889mm) handle height, which is a special size configuration. The faceplate measures 5/8 inch (16mm) wide, and the deadbolt throw is 1 inch (25mm).

Technical Information

  • Function: Shootbolt with vertical locking bolt
  • Backset: 1-3/4 inches (45mm)
  • Handle Height: 35 inches (889mm)
  • Faceplate Width: 5/8 inch (16mm)
  • Deadbolt Throw: 1 inch (25mm)
  • Locking Type: Manual locking for active door
  • System: HLS9000

Notes

  • This is the 35 inch handle height version – a special size configuration
  • If 36 inch handle height is required, order bottom assembly 8778331 instead

Related Parts

  • 8778331 – Hoppe Bottom Assembly for 36" handle height

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the difference between this 35" handle height and the 36" version?

This bottom gear has a 35 inch handle height, which is a special size. If your door requires a 36 inch handle height, you should order part number 8778331 instead.

What type of locking system does this bottom gear work with?

This bottom gear is designed for Hoppe HLS9000 shootbolt multipoint lock systems with manual locking for active doors.
