Hoppe Inactive Top Shootbolt Extension – 19-1/4" Length

Hoppe Inactive Top Shootbolt Extension – 19-1/4" Length

SKU: 8786975

$84.63 - $84.63
$84.63
$84.63 - $84.63
$84.63
  • Type: Inactive Top Shootbolt Extension
  • Extension Length: 19-1/4" (489mm)
  • Maximum Cutoff: 4-1/2" (114mm)
  • Number of Screws: 3
  • Overall Length with 36" Handle Height: 69.76" - 73.70" (1772mm - 1872mm)
  • Compatible Door Heights: For doors when used as top extension
  • Operation: Push to extend bolt (inactive style)
  • Also compatible with adjustable handle height active shootbolt #3664566 (35/92)
  • Inactive and active shootbolt extensions are NOT interchangeable
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Hoppe Inactive Top Shootbolt Extension – 19-1/4" (8786975)

This Hoppe Inactive Top Shootbolt Extension is designed for use with 3-piece inactive version shootbolt systems. The extension provides secure top locking for multipoint door hardware configurations.

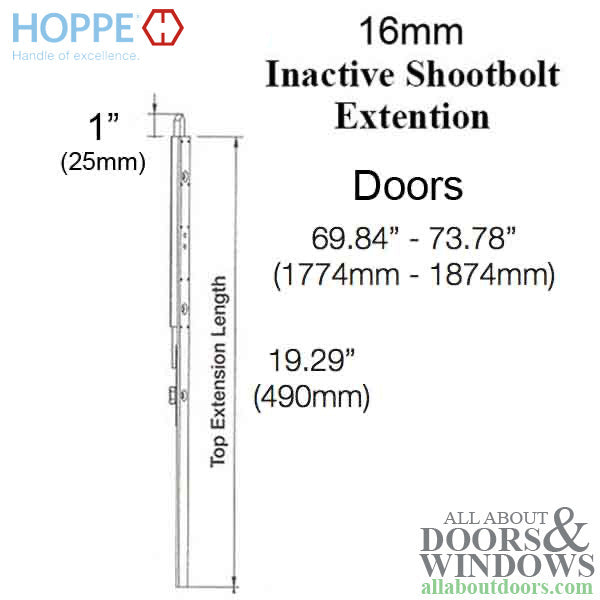

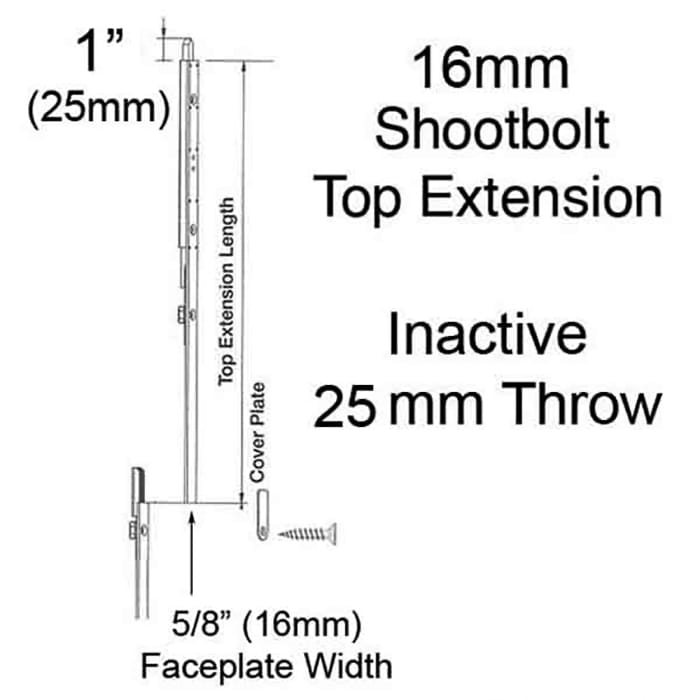

The extension measures 19-1/4 inches (489mm) in length with a maximum cutoff allowance of 4-1/2 inches (114mm), giving you flexibility during installation. When paired with a 36-inch handle height, the overall length ranges from 69.76 inches to 73.70 inches (1772mm to 1872mm).

Technical Information

  • Extension Length: 19-1/4 inches (489mm)
  • Maximum Cutoff: 4-1/2 inches (114mm)
  • Number of Screws: 3
  • Overall Length (with 36" handle height): 69.76 inches - 73.70 inches (1772mm - 1872mm)
  • Operation Style: Inactive (push to extend bolt)

Notes

  • Used on 3-piece inactive version shootbolt systems
  • Also compatible with adjustable handle height active shootbolt #3664566 (35/92) – use inactive (IA) top or bottom shootbolt extension for adjustable handle height versions
  • Inactive and active shootbolt extensions work differently and are NOT interchangeable
  • Inactive shootbolts push to extend the bolt; active shootbolts pull to extend the bolt

Related Parts

  • 3664566 - Hoppe Adjustable Handle Height Active Shootbolt (35/92)

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the difference between inactive and active shootbolt extensions?

Inactive shootbolt extensions push to extend the bolt, while active shootbolt extensions pull to extend the bolt. They work differently and are NOT interchangeable.

Can I cut this extension to fit my door?

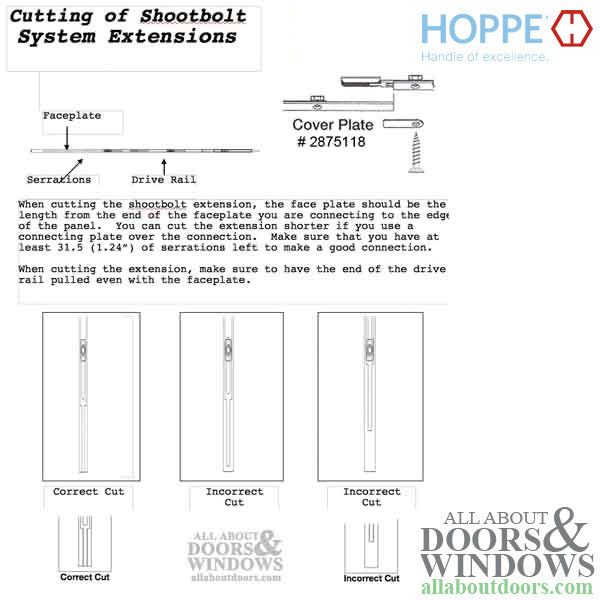

Yes, this extension has a maximum cutoff allowance of 4-1/2 inches (114mm), allowing you to trim it for proper fit during installation.

Is this extension compatible with adjustable handle height systems?

Yes, this inactive top shootbolt extension can be used with the adjustable handle height active shootbolt #3664566 (35/92).
