Hoppe HLS9000 Bottom Gear – 35mm Backset, 39-5/8" Handle Height, 1" Throw

Hoppe HLS9000 Bottom Gear – 35mm Backset, 39-5/8" Handle Height, 1" Throw

SKU: 8779263

$175.60 - $175.60
$175.60
$175.60 - $175.60
$175.60
  • Backset: 1-3/8" (35mm)
  • PZ: Not specified - contact us for details
  • Faceplate Width: 5/8" (16mm)
  • Handle Height: 39-5/8" (1006mm)
  • Deadbolt Throw: 1" (25mm)
  • HLS9000 shootbolt version with manual locking
  • Designed for active door in multipoint system
  • Special handle height for patio and pool gate door applications
  • Sold individually
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
Not sure this is the right part?
Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .
*We have a fully-staffed customer support team happy to help!

Hoppe HLS9000 Bottom Gear – 35mm Backset, 1" Throw (8779263)

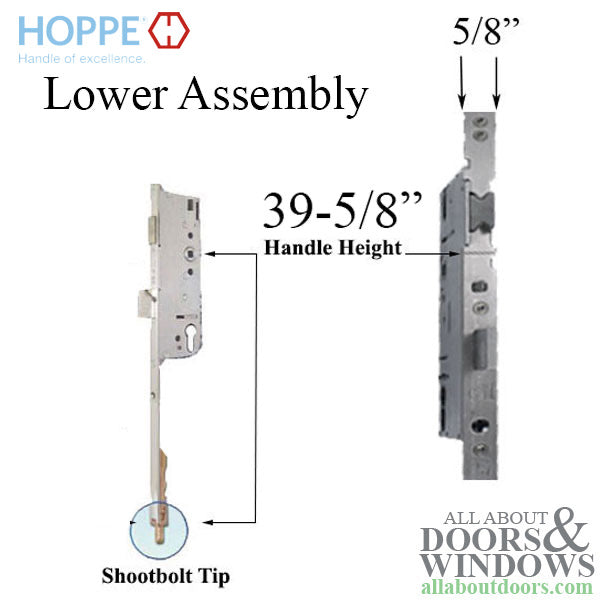

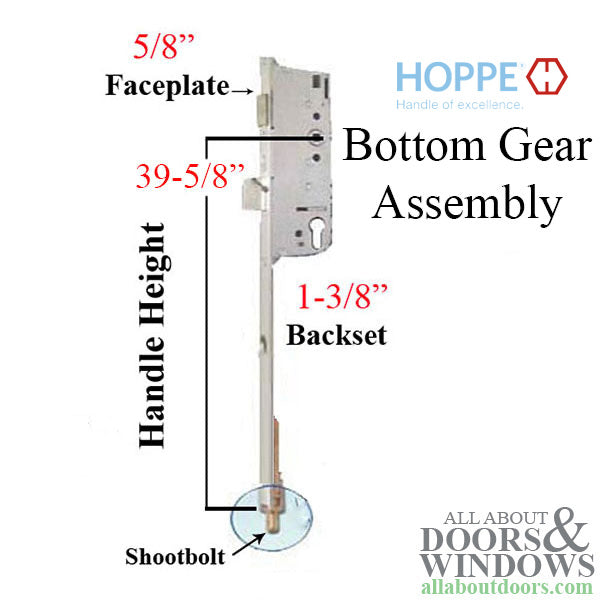

This Hoppe Bottom Gear is part of the HLS9000 shootbolt multipoint lock system, designed specifically for active doors requiring manual locking operation. It features a special handle height of 39-5/8 inches (1006mm), making it ideal for unique applications such as patio doors and pool gate entrances.

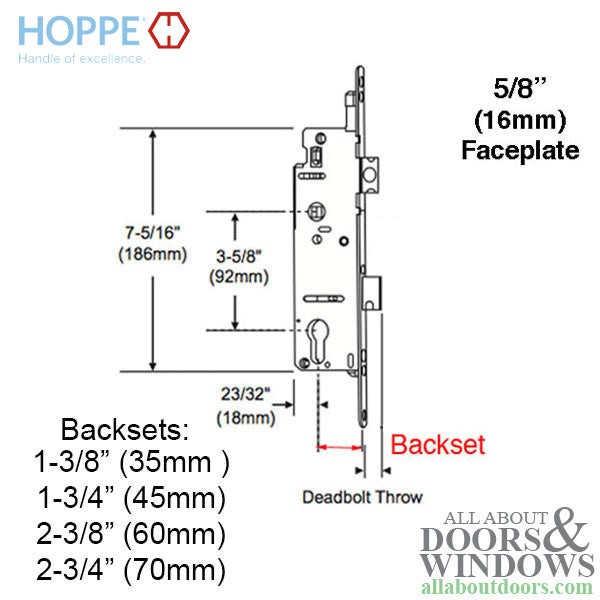

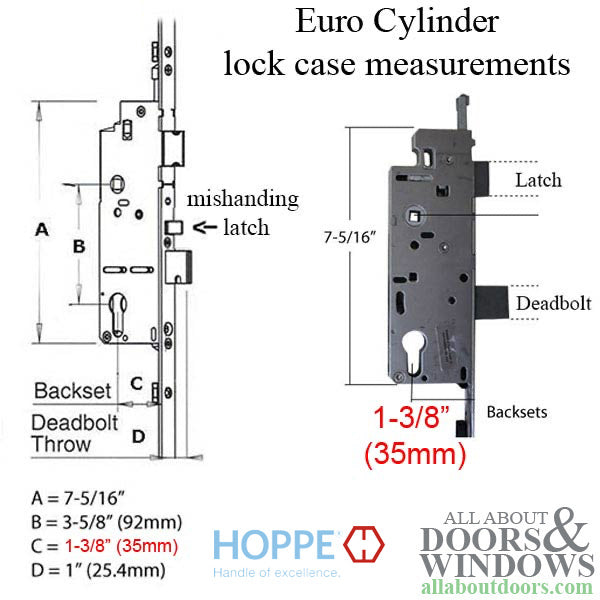

The bottom gear assembly includes a 1-inch (25mm) deadbolt throw for secure locking engagement. With a 1-3/8 inch (35mm) backset and 5/8 inch (16mm) faceplate width, this component integrates seamlessly with compatible Hoppe multipoint hardware.

Technical Information

  • Backset: 1-3/8 inches (35mm)
  • Faceplate Width: 5/8 inch (16mm)
  • Deadbolt Throw: 1 inch (25mm)
  • Handle Height: 39-5/8 inches (1006mm)
  • Lock System: HLS9000 Shootbolt Version
  • Operation: Manual Locking
  • Door Type: Active Door

Notes

  • Special handle height designed for patio and pool gate door applications
  • Alternative version 8779259 available with 1/2 inch (14mm) deadbolt throw

Related Parts

  • 8779259 - Lower Assembly with 1/2 inch (14mm) deadbolt throw
  • 2424114 - Middle Extension (17.36 inches) for short doors
  • 8778619 - Top Shootbolt Tip (door height dependent)
  • 4990235 - Top Shootbolt Kit for 73.3 inches to 77-1/4 inches door heights
  • 8778623 - Top Shootbolt Tip for 76.27 inches to 80.21 inches door heights
  • 2875118 - Cover Plate
  • 8785695 - Screws

Priced and sold individually.

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

What is the difference between part 8779263 and 8779259?

Part 8779263 has a 1-inch deadbolt throw, while 8779259 has a 1/2-inch deadbolt throw. Both share the same 39-5/8 inch handle height and 1-3/8 inch backset.

What applications is this special handle height designed for?

The 39-5/8 inch handle height is specifically designed for special applications like patio doors and pool gate doors that require non-standard handle positioning.

What additional parts do I need for a complete shootbolt system?

You will typically need a top shootbolt tip (size depends on door height), a middle extension for shorter doors, a cover plate, and mounting screws. Contact us for help selecting the correct components for your door.
