Hoppe HLS9000 Manual Locking Bottom Gear – 45mm Backset, 36" Handle Height, 4-Roller

SKU: 8778895

$162.34 - $162.34

$162.34

$162.34 - $162.34

$162.34

Backset: 1-3/4" (45mm)
PZ: Not specified - contact us for compatibility
Faceplate Width: 5/8" (16mm)
Deadbolt Throw: 1" (25.4mm)
Handle Height: 36" (914mm)

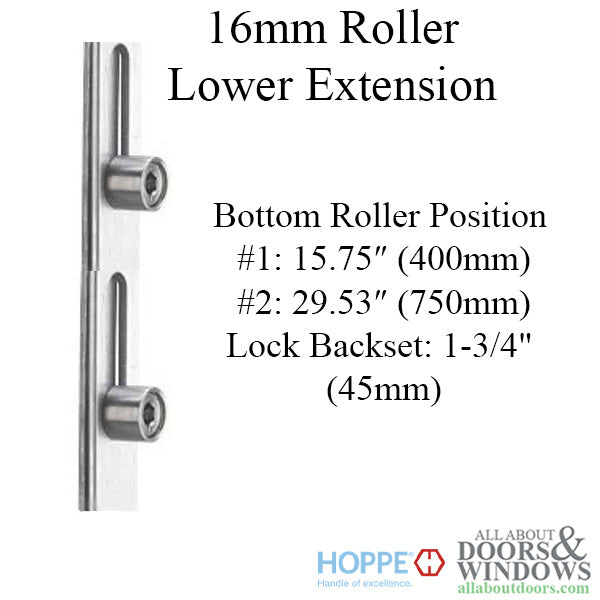

Roller Configuration: 4 rollers total (2 on bottom gear)
1st Roller Position: 15.75" (400mm) from handle center when locked
2nd Roller Position: 29.53" (750mm) from handle center when locked
Maximum Cutoff: 2.36" (60mm)
Number of Screws: 5
Manual locking operation

Not sure this is the right part?

Before you order, if you'd like confidence this is the right part for your job, please fill out our multipoint lock identifier form or call us at (816) 221-6543 .

*We have a fully-staffed customer support team happy to help!

Product Details

Hoppe HLS9000 Bottom Gear – 45mm Backset, 4-Roller (8778895)

This Hoppe HLS9000 Manual Locking Bottom Gear is designed for multipoint lock systems and features a four-roller configuration. The bottom gear component includes 2 rollers that engage when the lock is in the down (locked) position, providing secure multi-point engagement along the door frame.

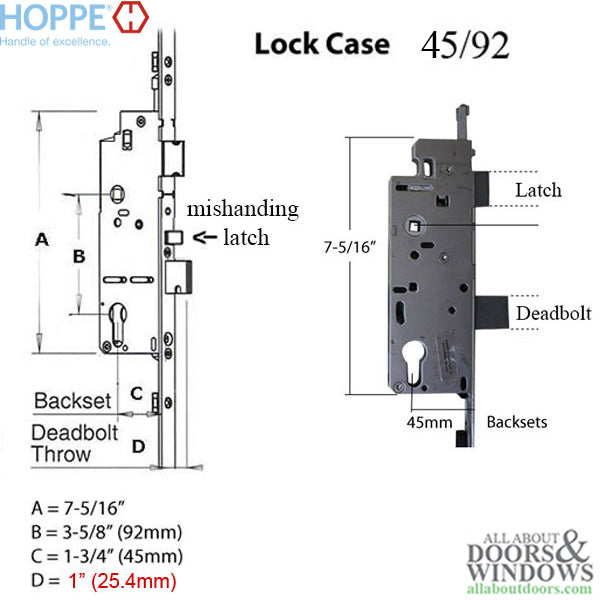

The gear has a 1-3/4 inch (45mm) backset and a 5/8 inch (16mm) faceplate width, making it compatible with standard Hoppe multipoint lock setups. The handle height measures 36 inches (914mm) from the bottom of the gear to the handle center.

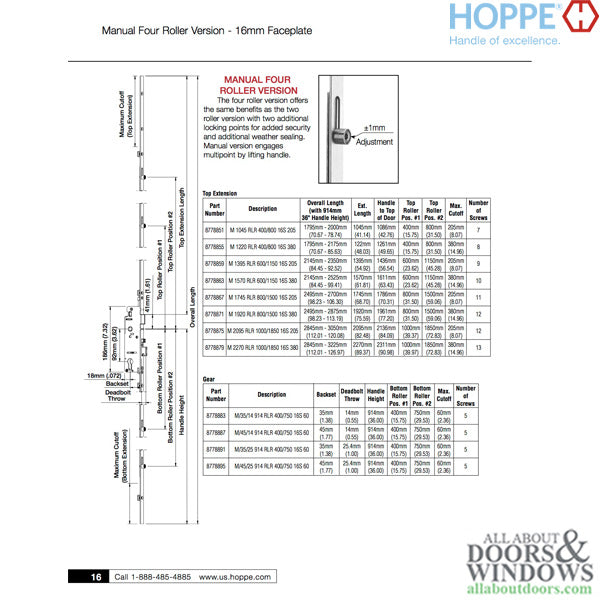

Technical Information

Backset: 1-3/4 inches (45mm)
Faceplate Width: 5/8 inches (16mm)
Deadbolt Throw: 1 inch (25.4mm)
Handle Height: 36 inches (914mm)
1st Roller Position: 15.75 inches (400mm) from handle center in locked position
2nd Roller Position: 29.53 inches (750mm) from handle center in locked position
Maximum Cutoff: 2.36 inches (60mm)
Number of Screws: 5
Locking Type: Manual
Total Rollers: 4 (2 on this bottom gear)

Notes

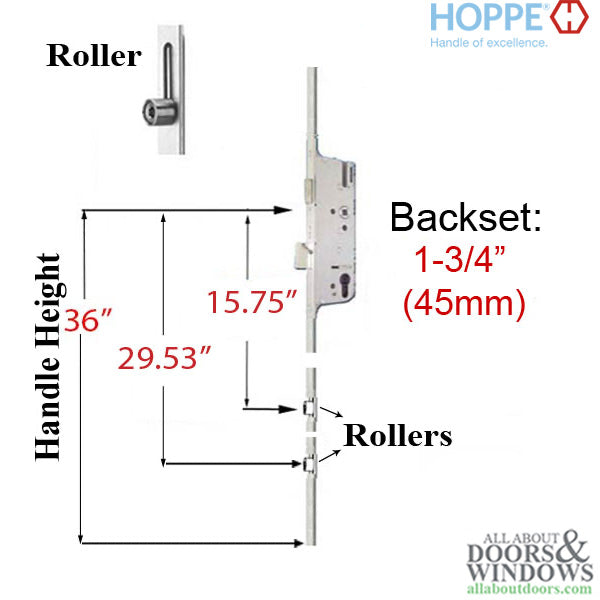

Roller positions are measured from handle center to center of roller when in the locked (down) position
This is a bottom gear component and requires a compatible top extension for complete multipoint lock assembly
Handing can be changed/reversed if needed

Fill out our MPL form or call us to ensure accurate purchasing and correct fit.

Frequently Asked Questions

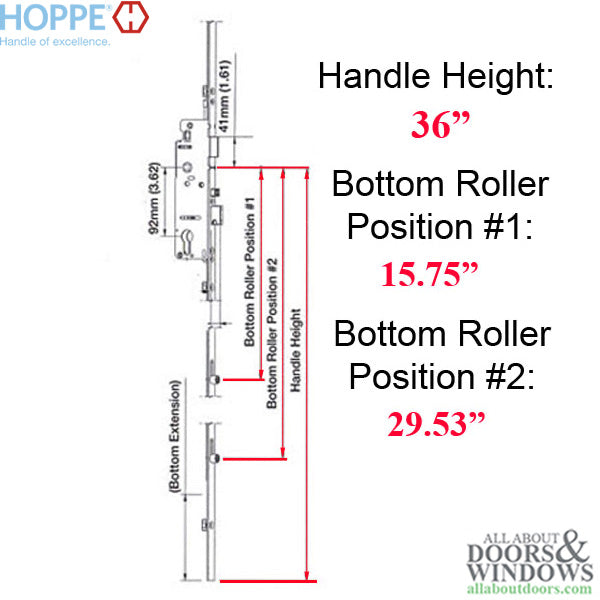

How do I measure the roller positions on this bottom gear?

Roller positions are measured from the center of the handle to the center of each roller when the lock is in the down (locked) position. The 1st roller is at 15.75 inches and the 2nd roller is at 29.53 inches.

Can I change the handing on this Hoppe multipoint lock?

Yes, Hoppe multipoint locks can be rehanded. The lock handing can be changed or reversed to accommodate left or right-hand door configurations.

What is the maximum cutoff length for this bottom gear?

The maximum cutoff for this bottom gear is 2.36 inches (60mm), which determines how much material can be trimmed from the end if needed for your door application.
